C1256

C1256 / 56 - Accumulator Low Pressure Malfunction

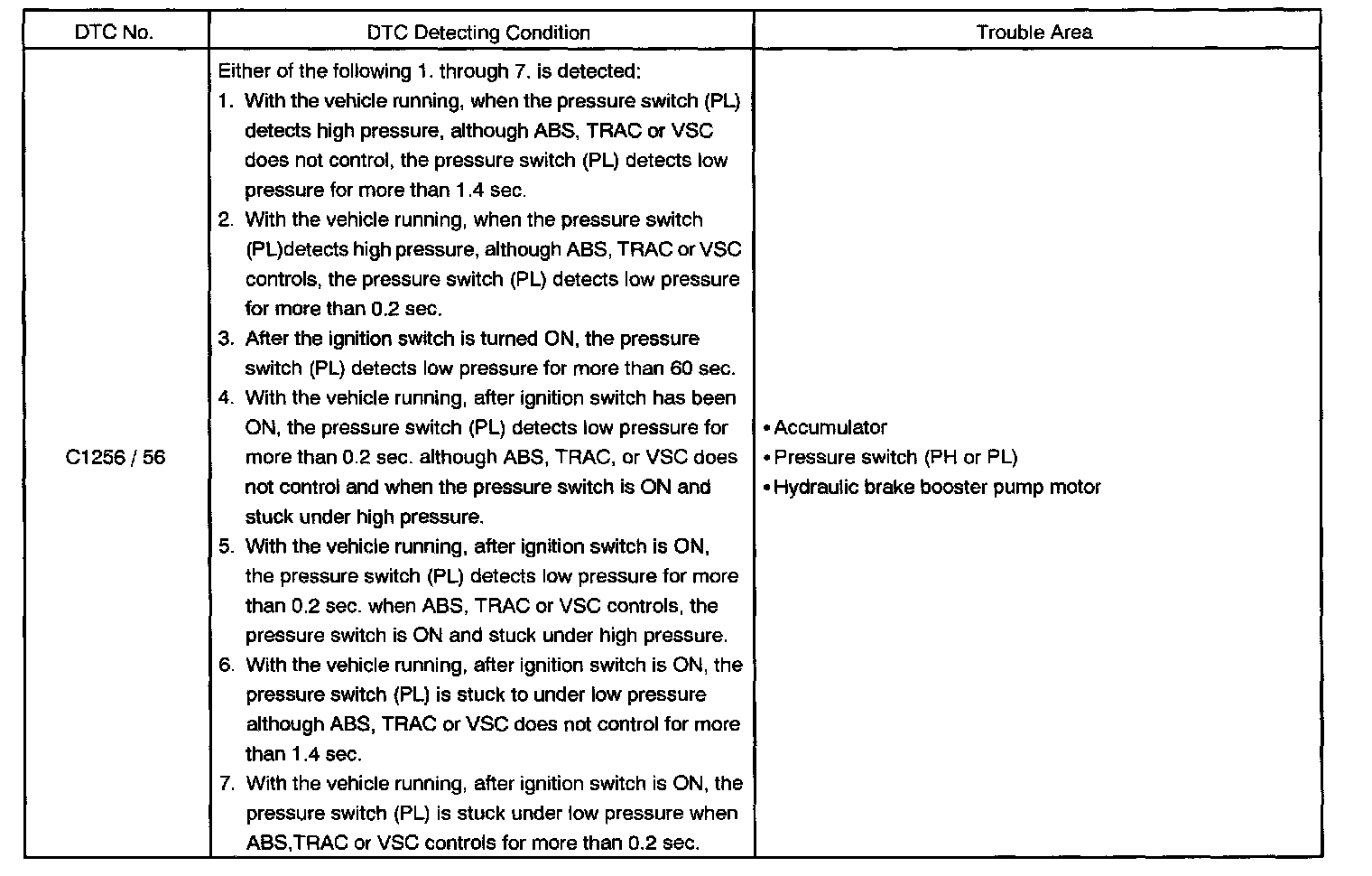

DTC Detecting Condition:

CIRCUIT DESCRIPTION

Wiring Diagram:

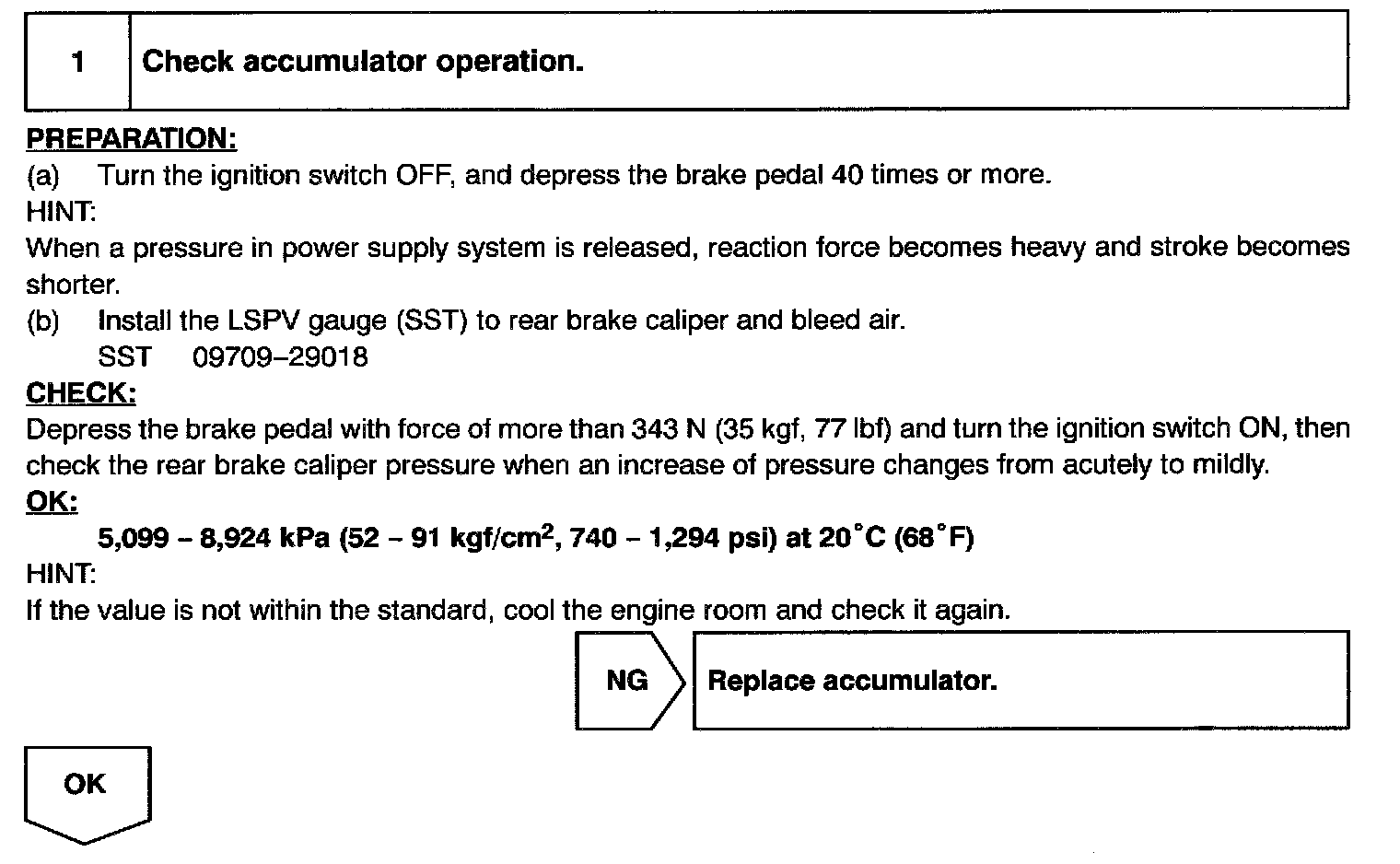

Step 1:

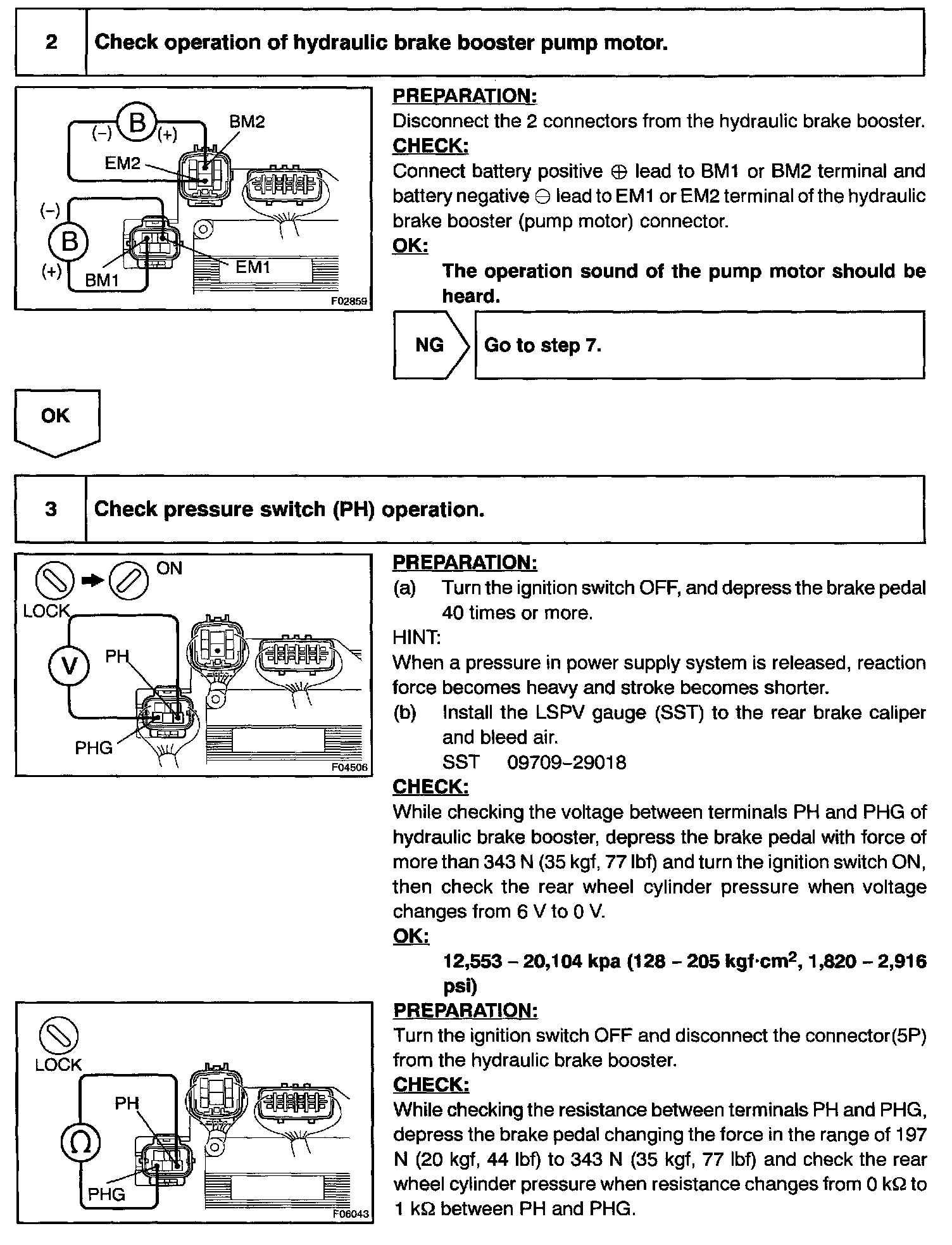

Steps 2 - 3:

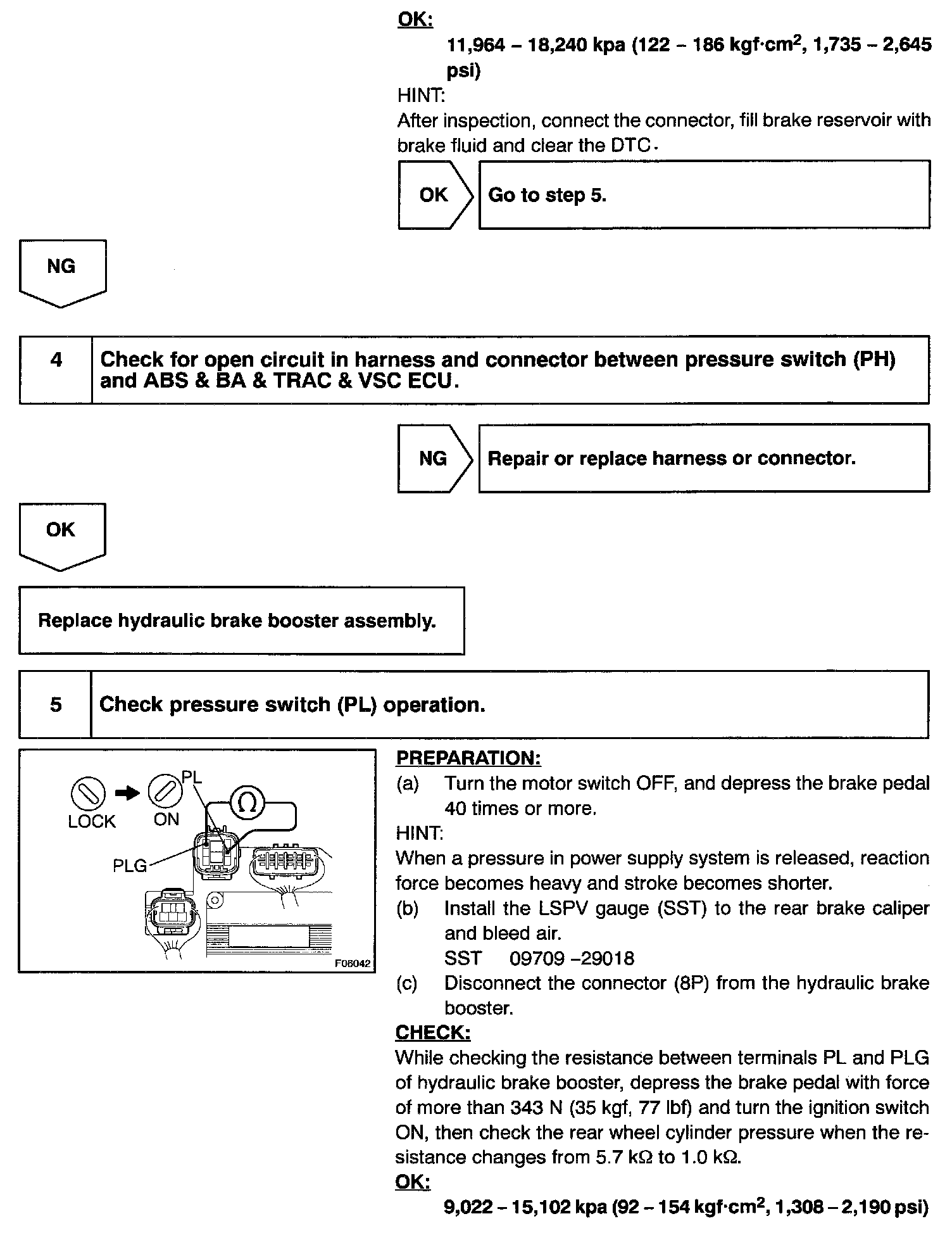

Steps 3 (Continued) - 5:

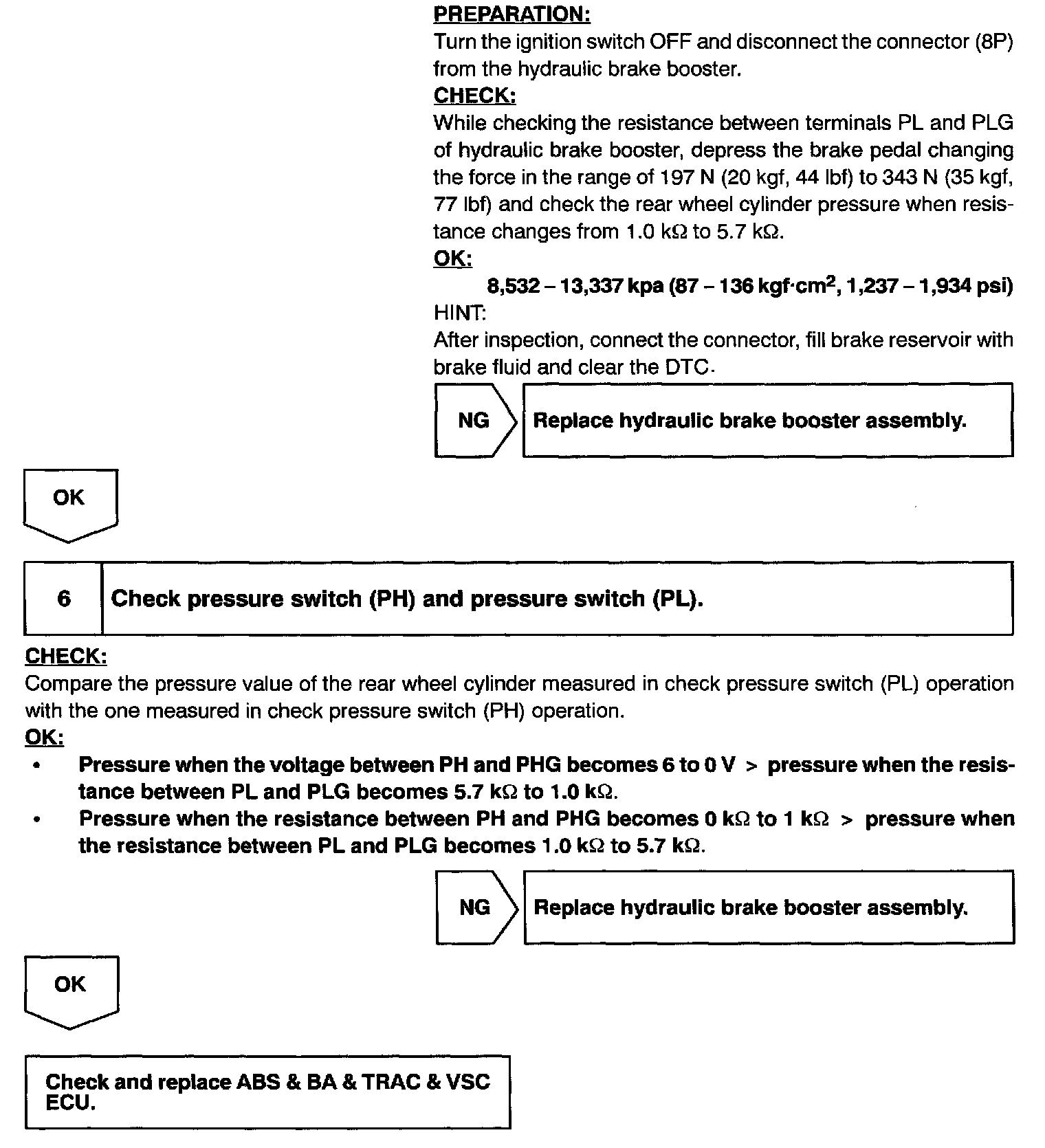

Steps 5 (Continued) - 6:

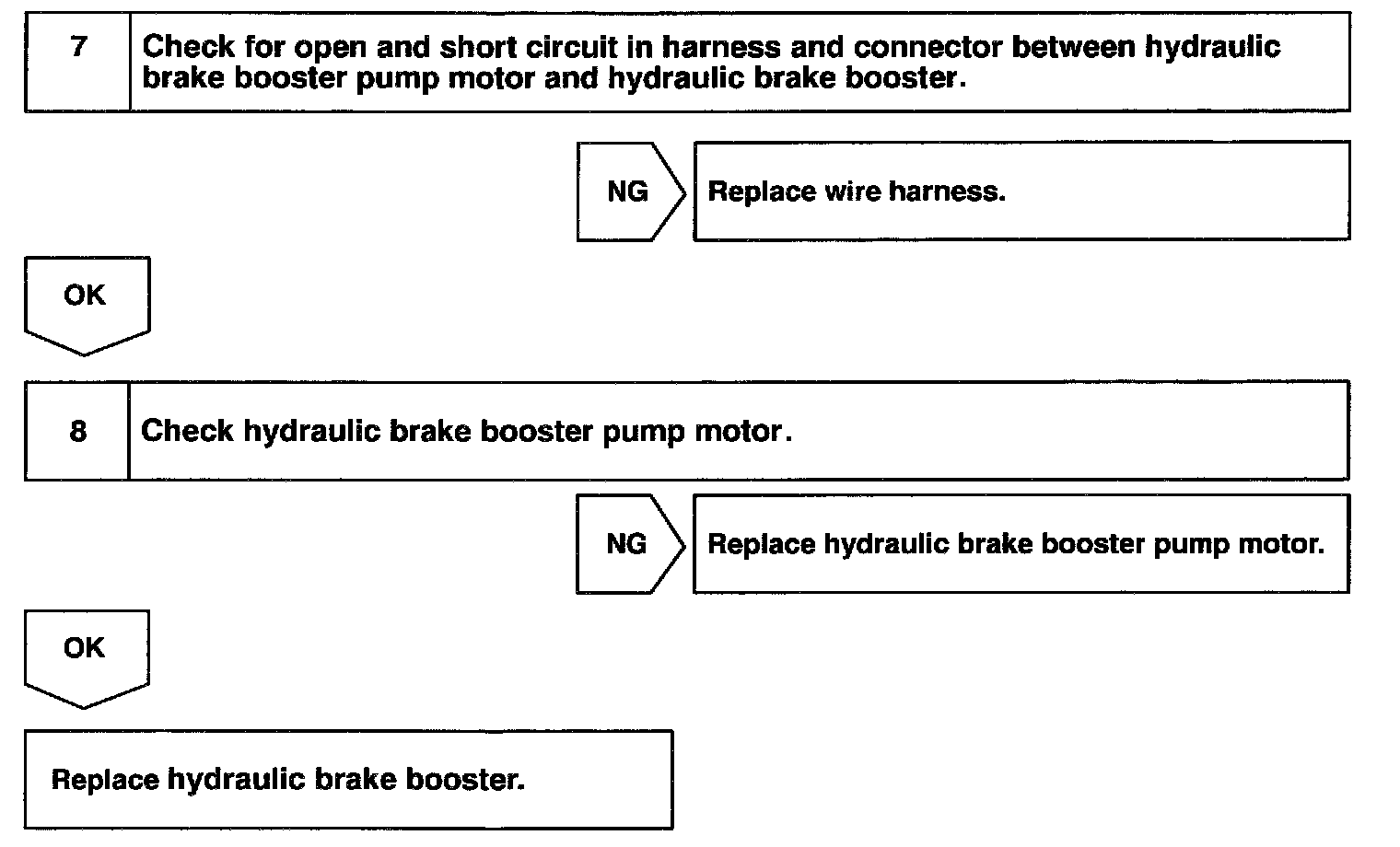

Steps 7 - 8:

INSPECTION PROCEDURE
