C1252

C1252 / 52 - Hydraulic Brake Booster Pump Motor ON Time Abnormally Long

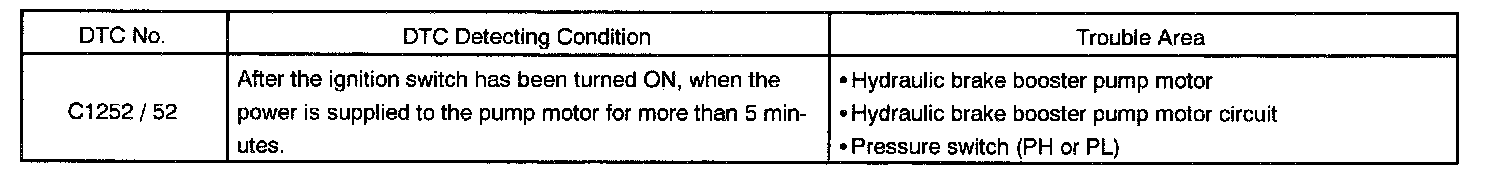

DTC Detecting Condition:

CIRCUIT DESCRIPTION

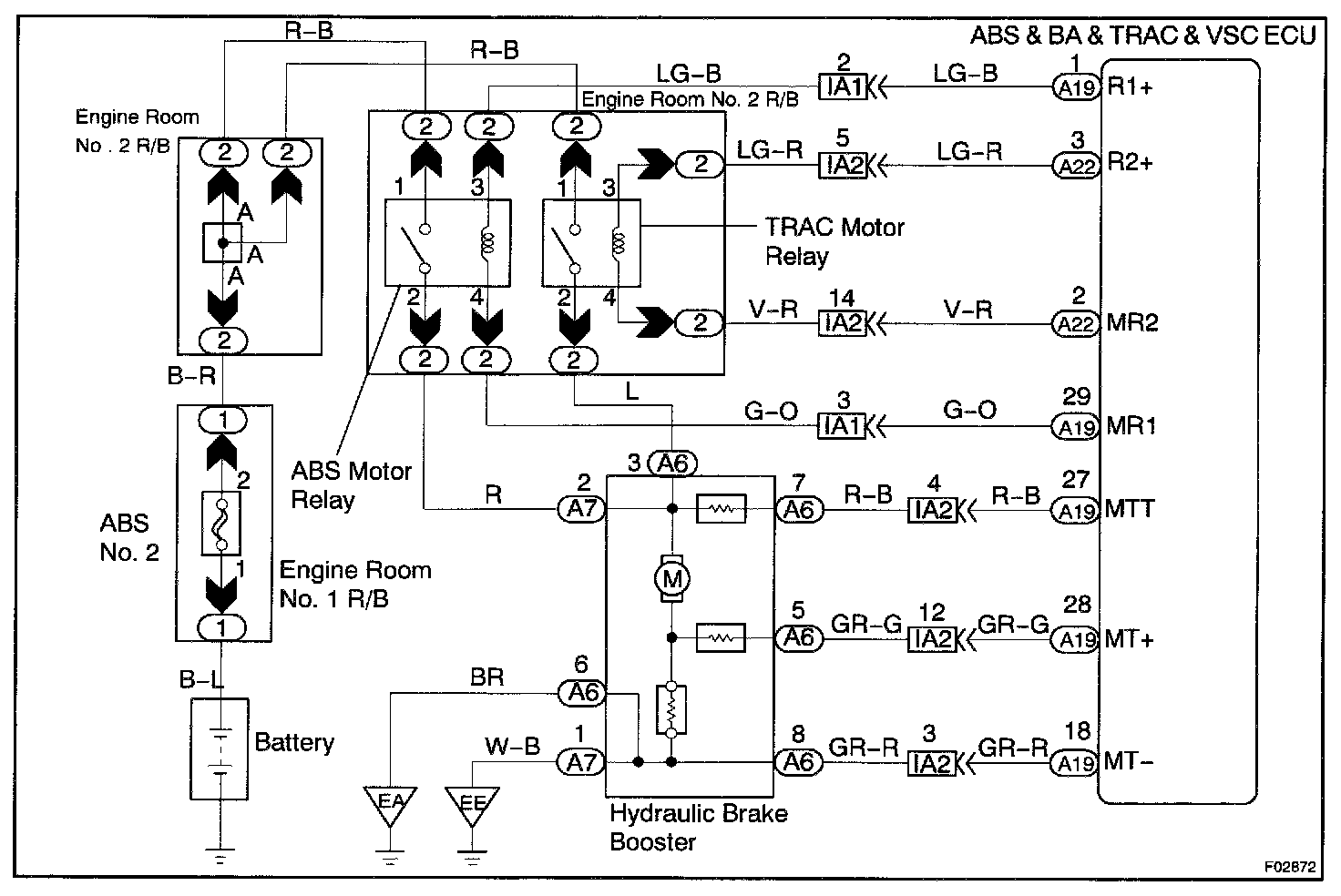

Wiring Diagram:

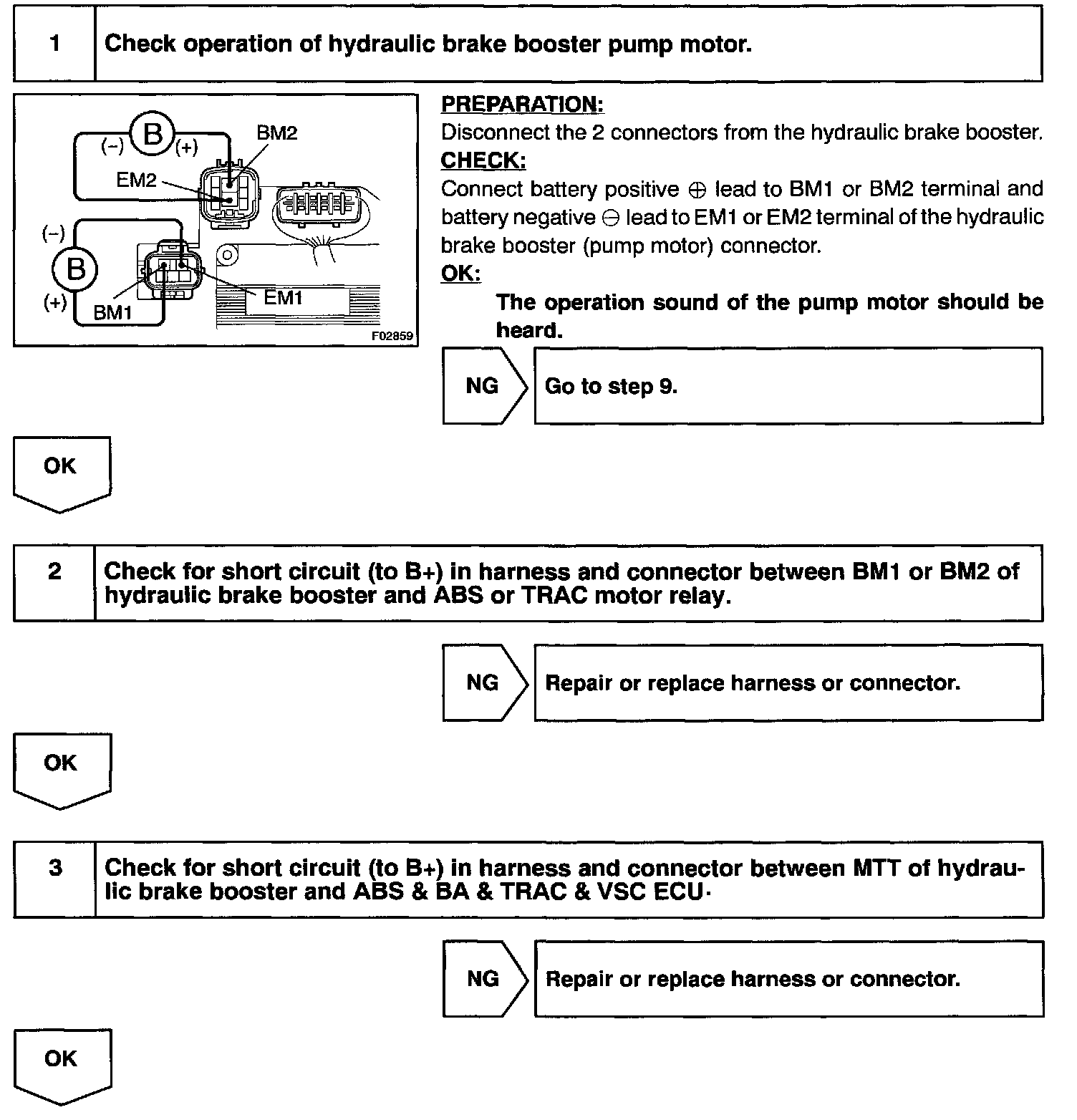

Steps 1 - 3:

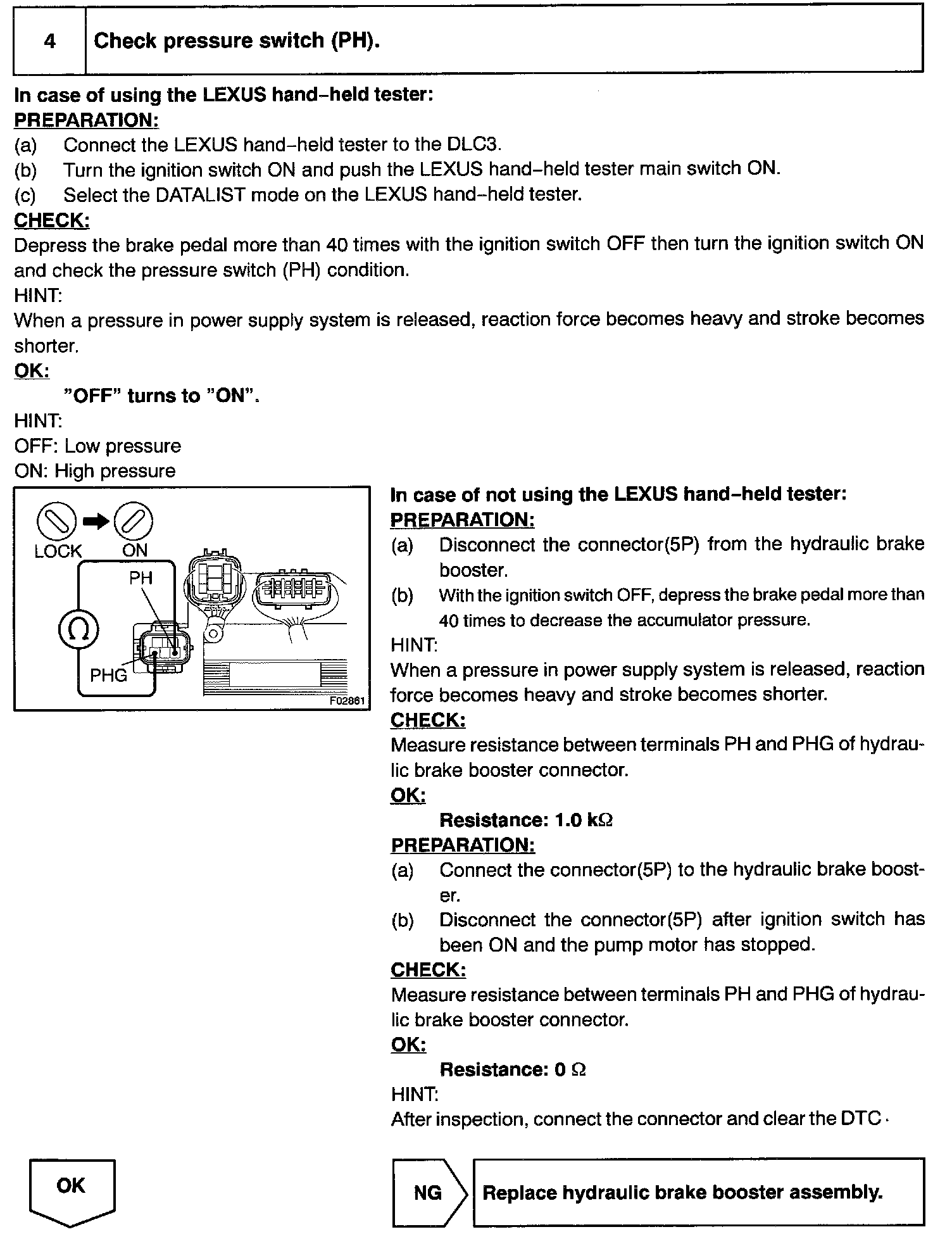

Step 4:

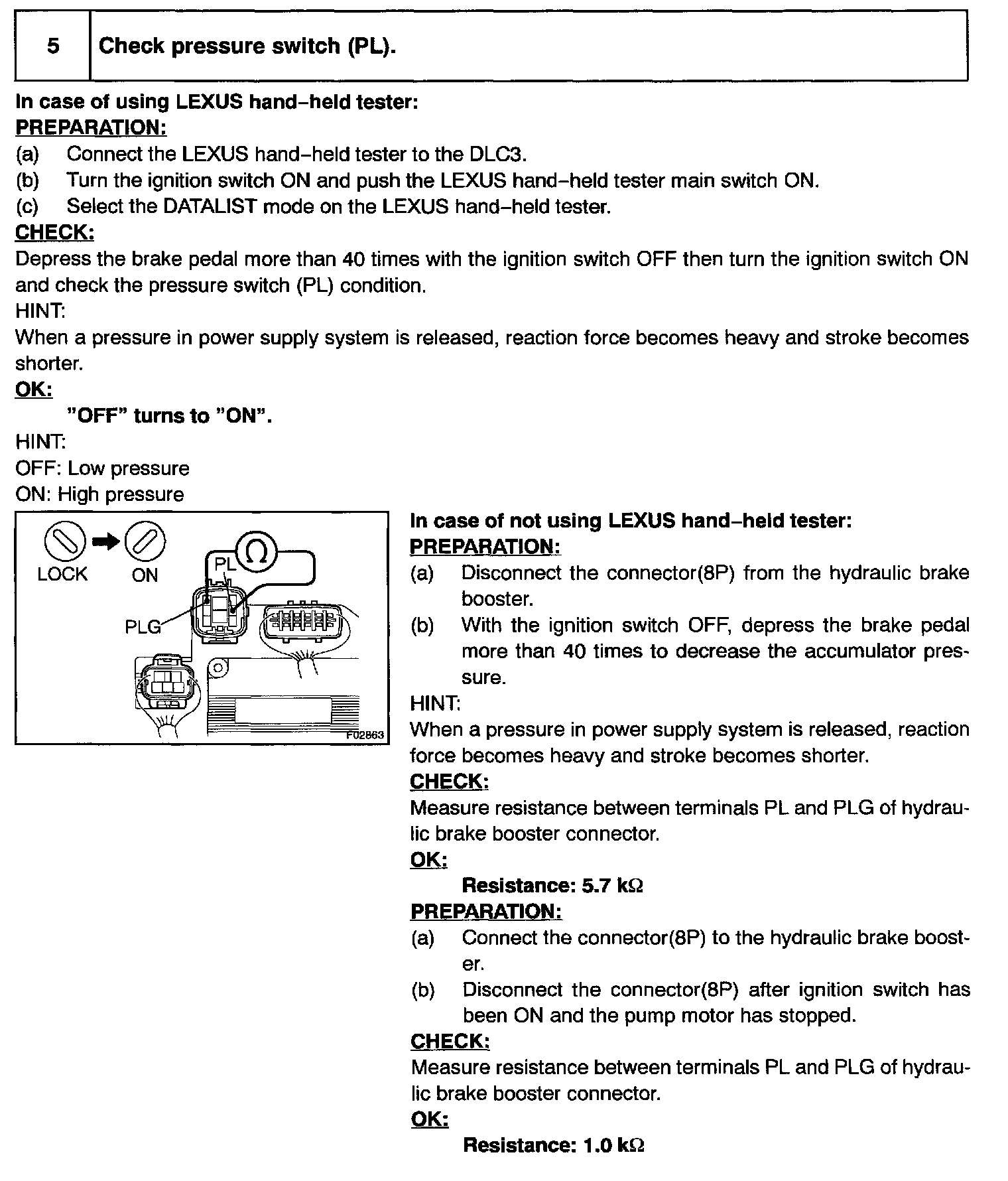

Step 5:

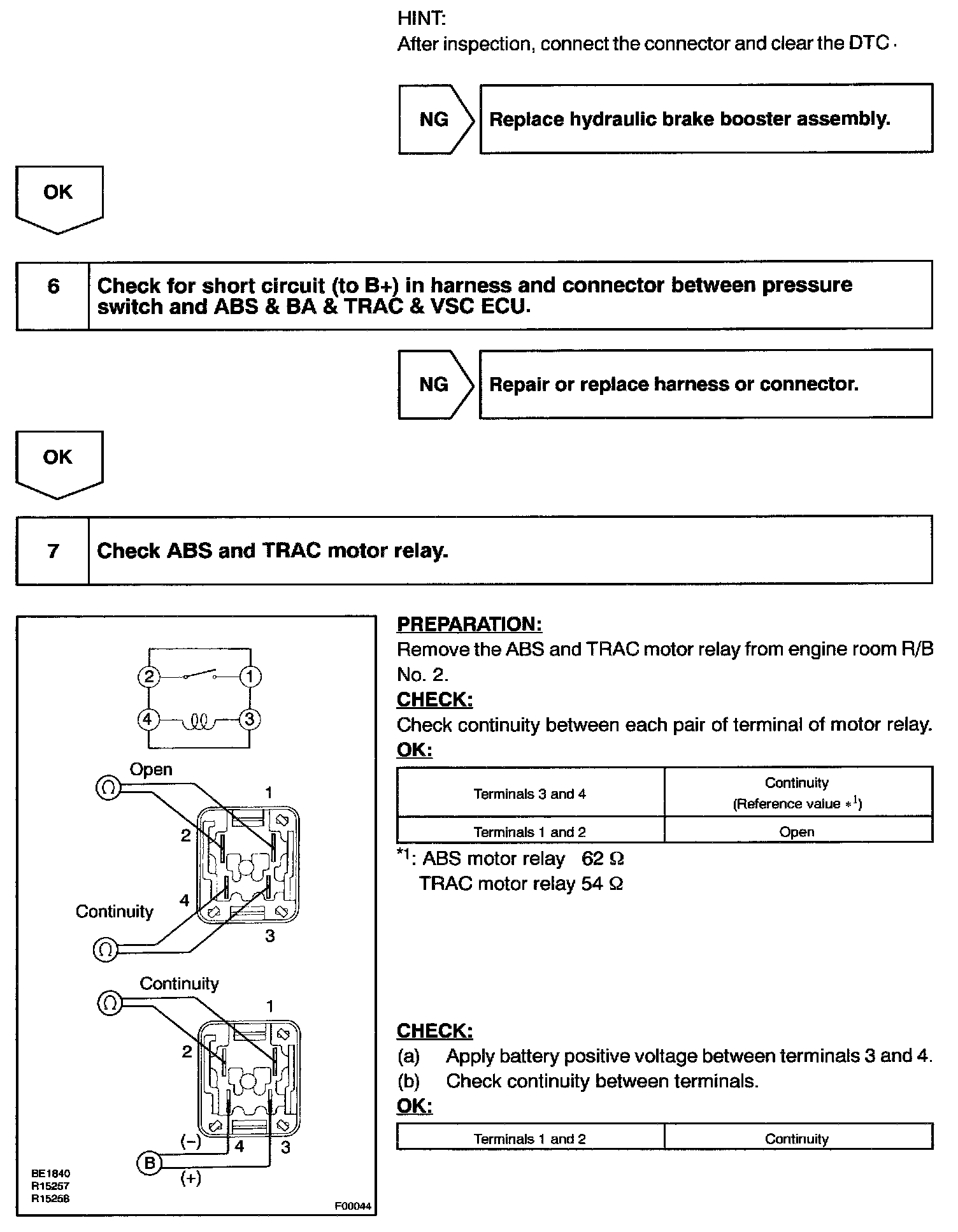

Steps 5 (Continued) - 7:

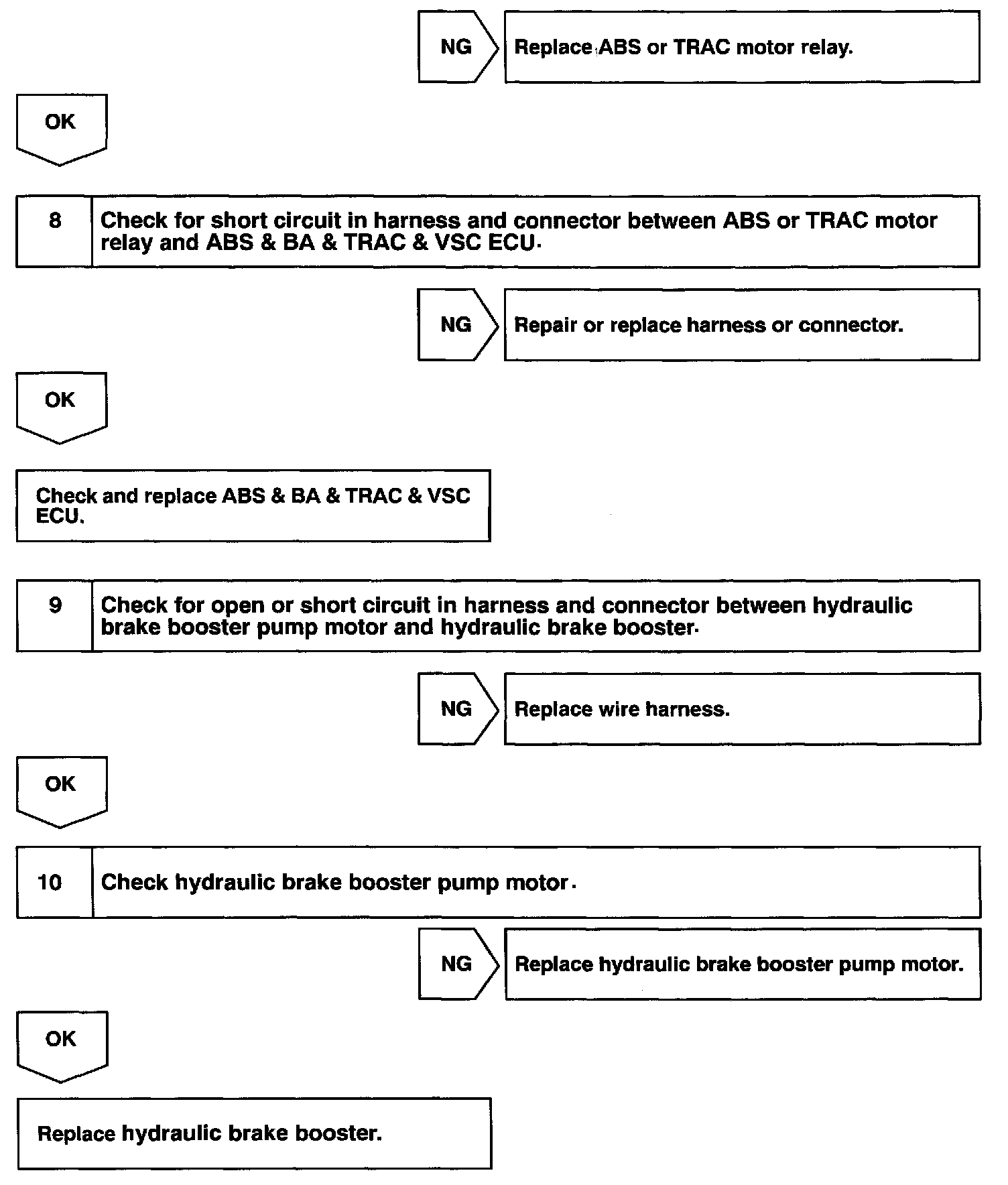

Steps 7 (Continued) - 10:

INSPECTION PROCEDURE
