C1251 / 51 - Hydraulic Brake Booster Pump Motor Malfunction

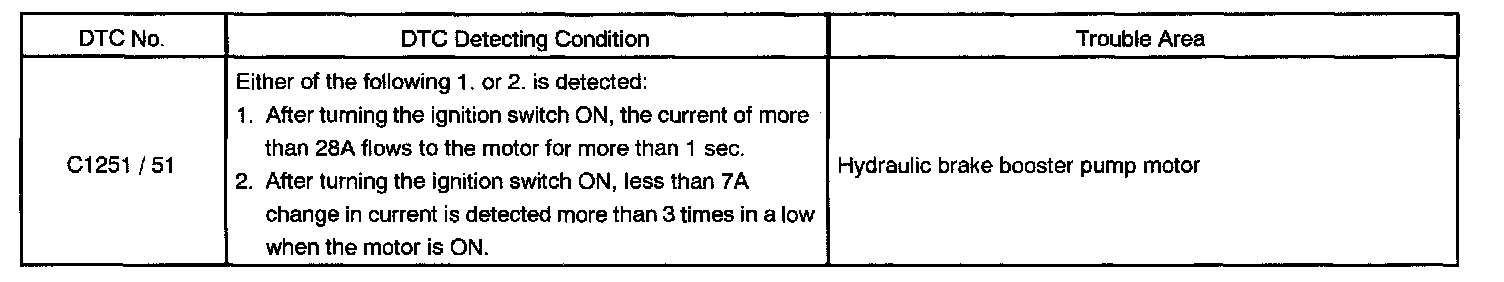

DTC Detecting Condition:
CIRCUIT DESCRIPTION

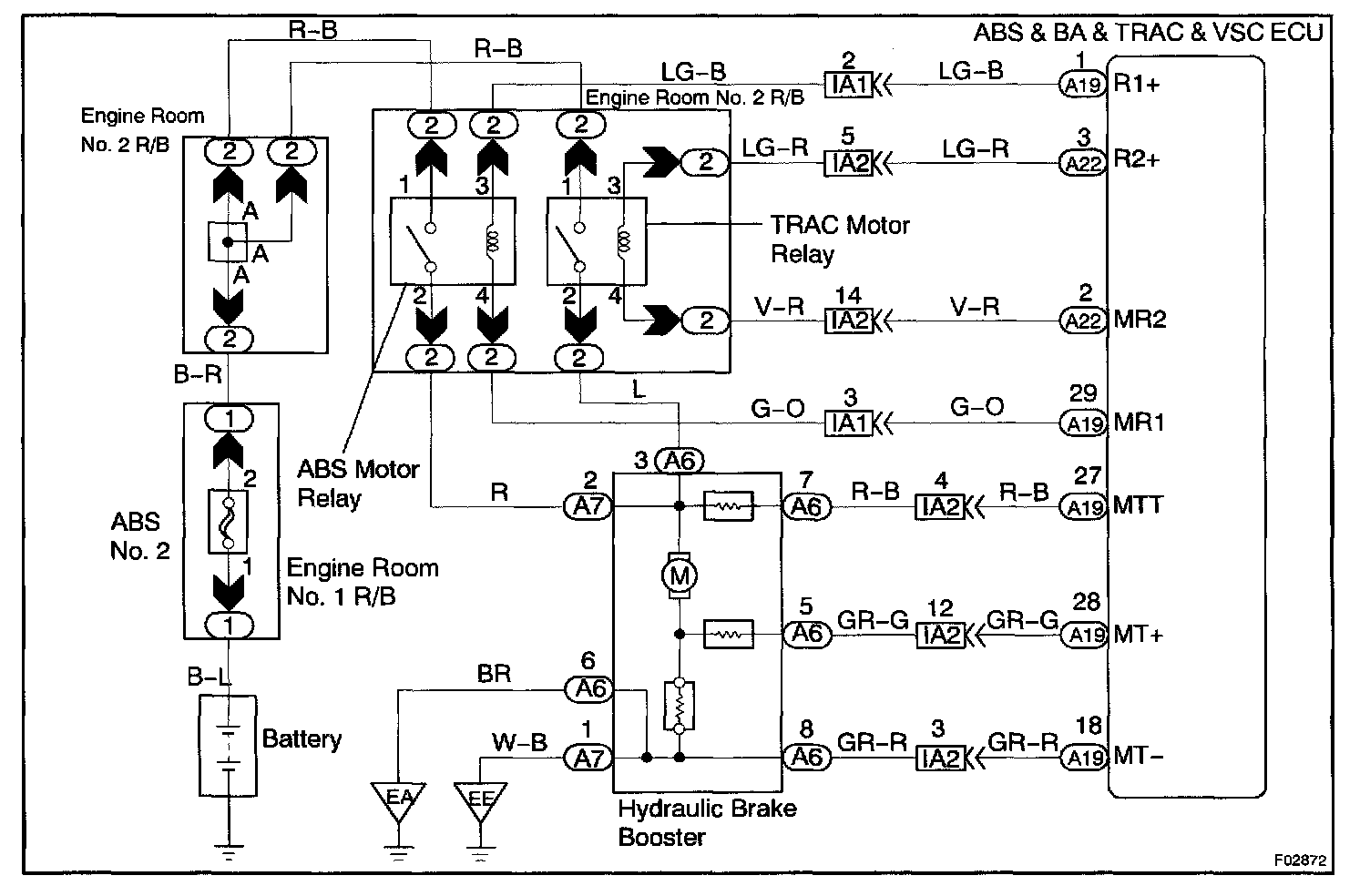

Wiring Diagram:

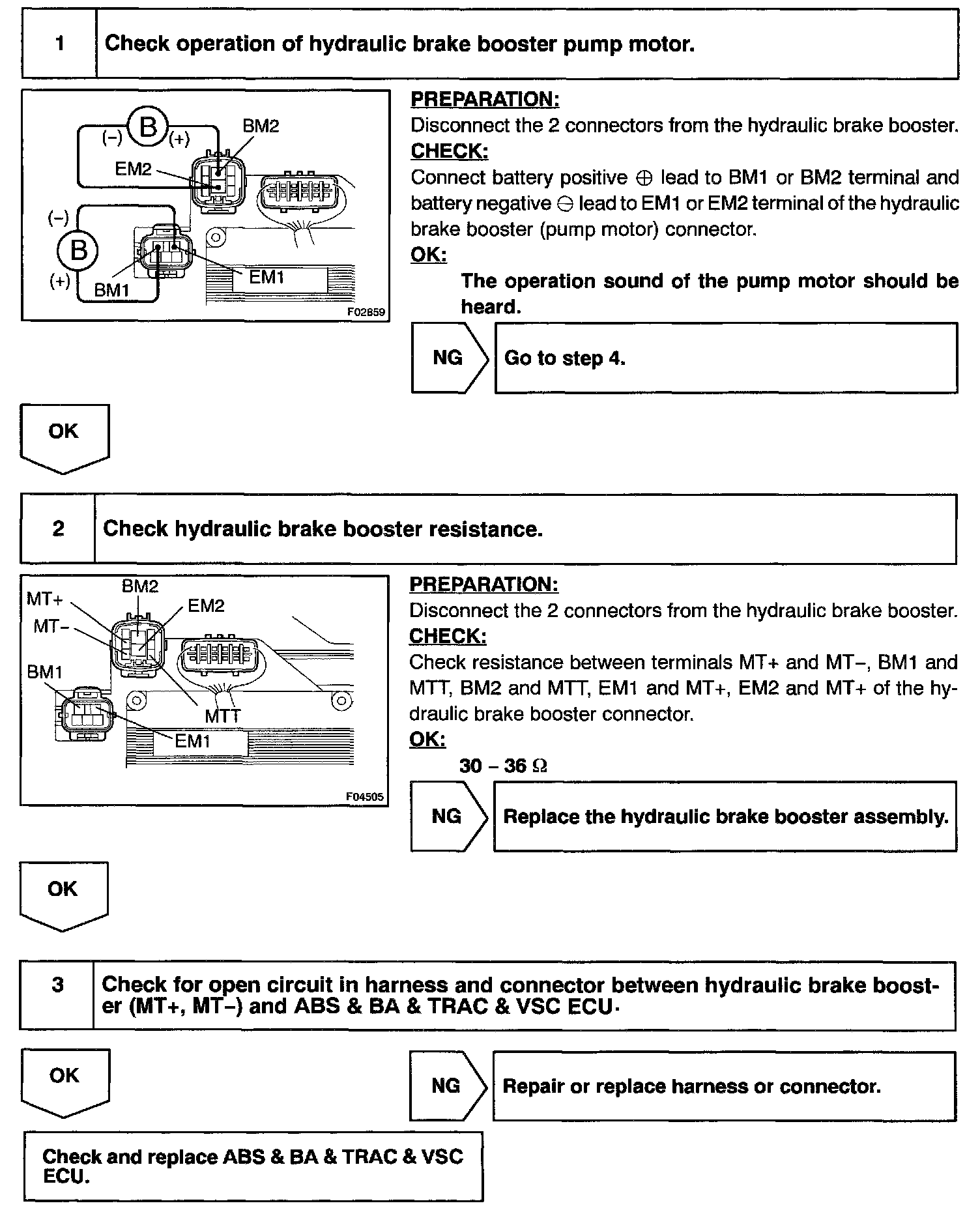

Steps 1 - 3:

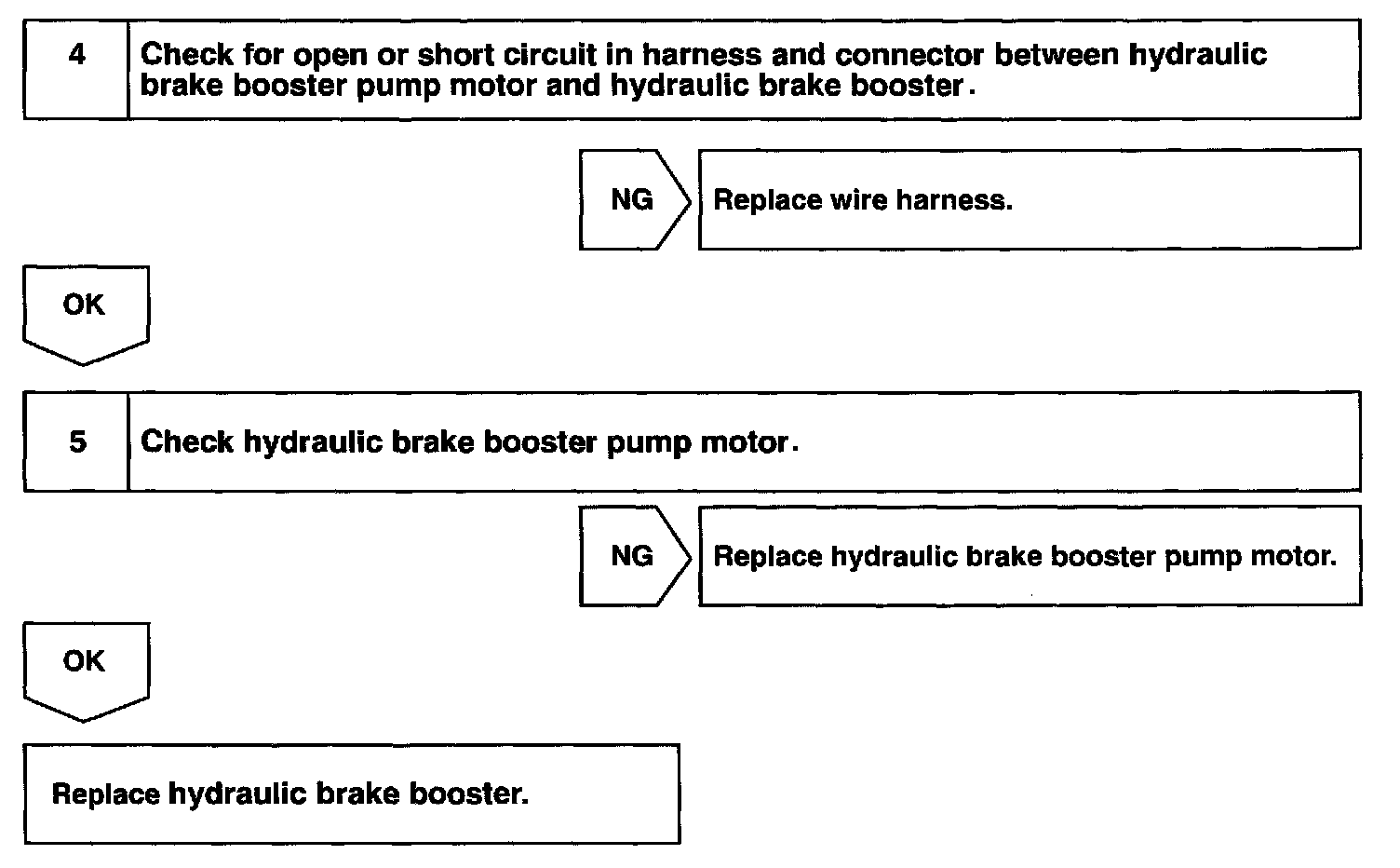

Steps 4 - 5:
INSPECTION PROCEDURE
