C1231

C1231 / 31 - Steering Angle Sensor Circuit

DTC Detecting Condition:

CIRCUIT DESCRIPTION

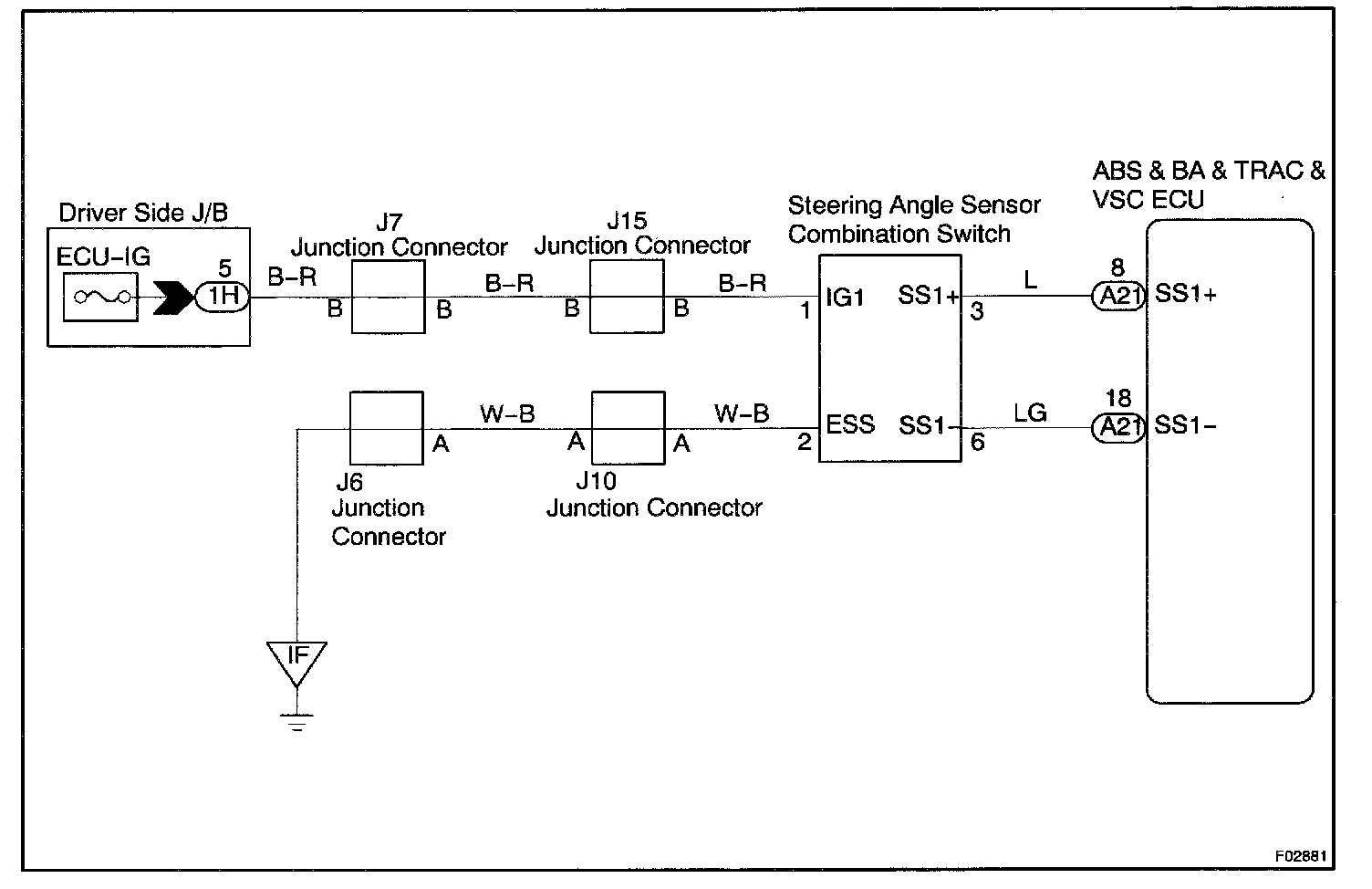

Wiring Diagram:

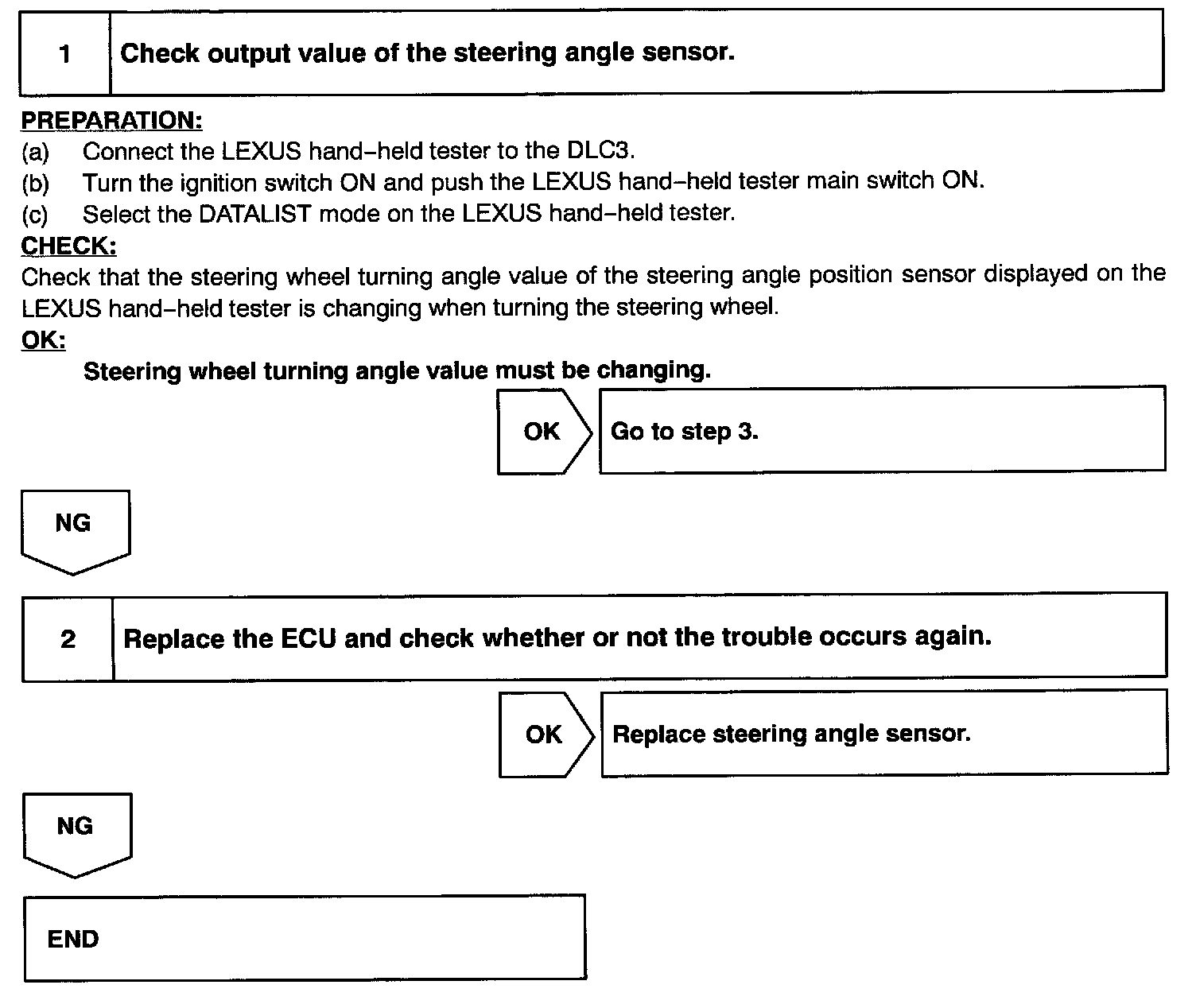

Steps 1 - 2:

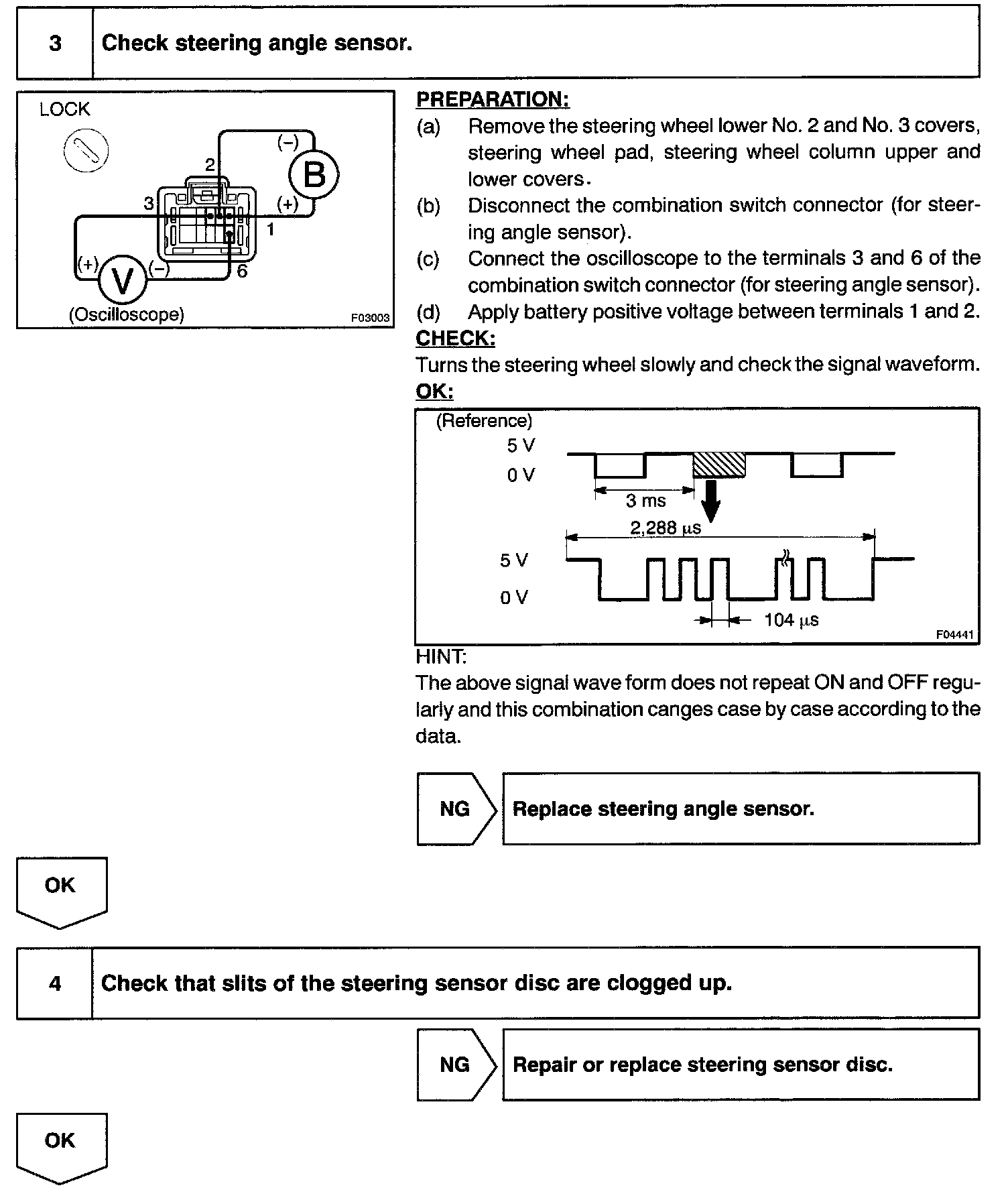

Steps 3 - 4:

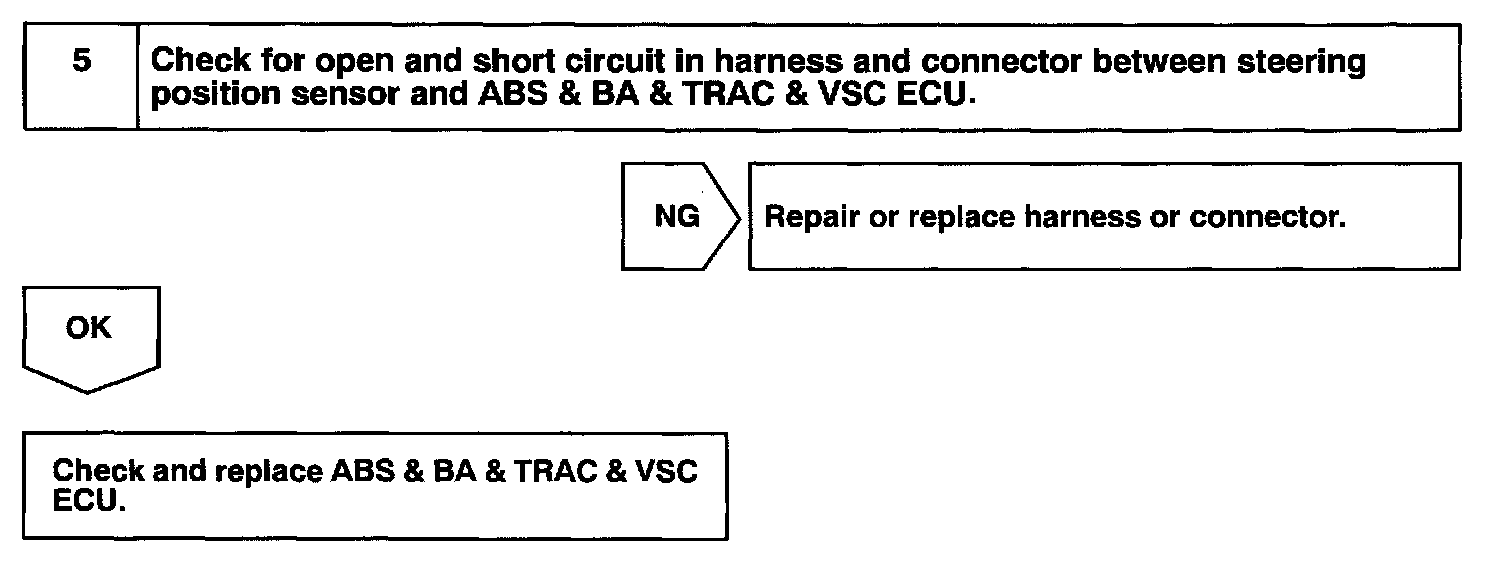

Step 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 3 in case of not using the LEXUS hand-held tester.
