C1226

C1226 / 26 - Open or Short Circuit in Hydraulic Brake Booster Solenoid Circuit (SA2 Circuit)

CIRCUIT DESCRIPTION

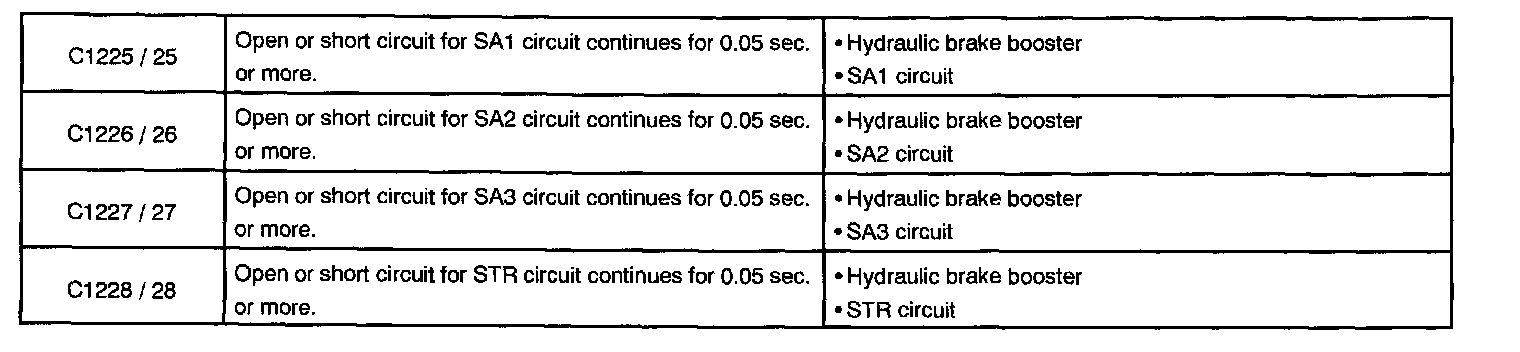

C1225/25 - C1228/28:

The TRAC & VSC solenoid operates in accordance with signals from the ECU and raises the fluid pressure in and releases it from the brake cylinders.

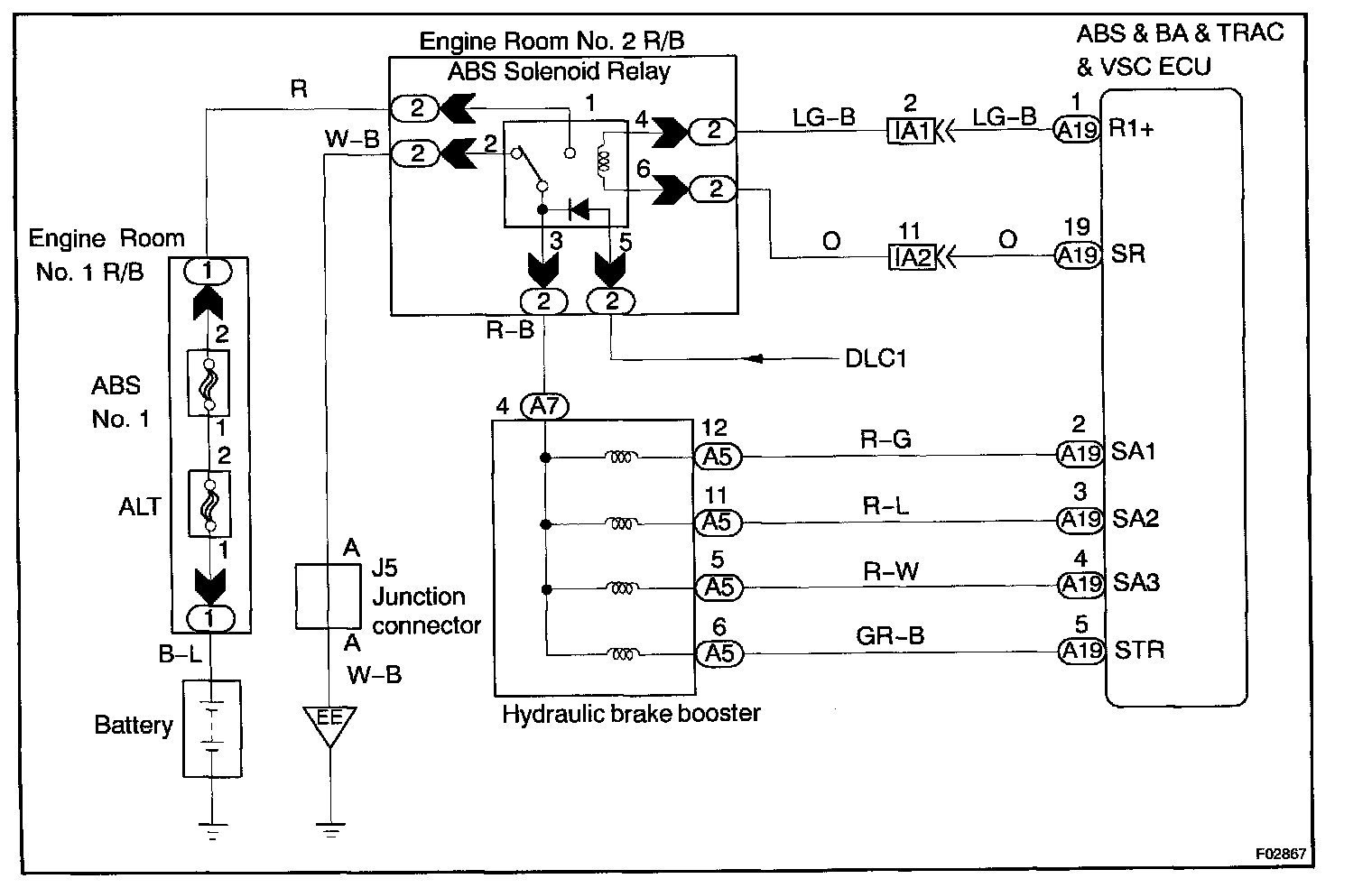

Wiring Diagram:

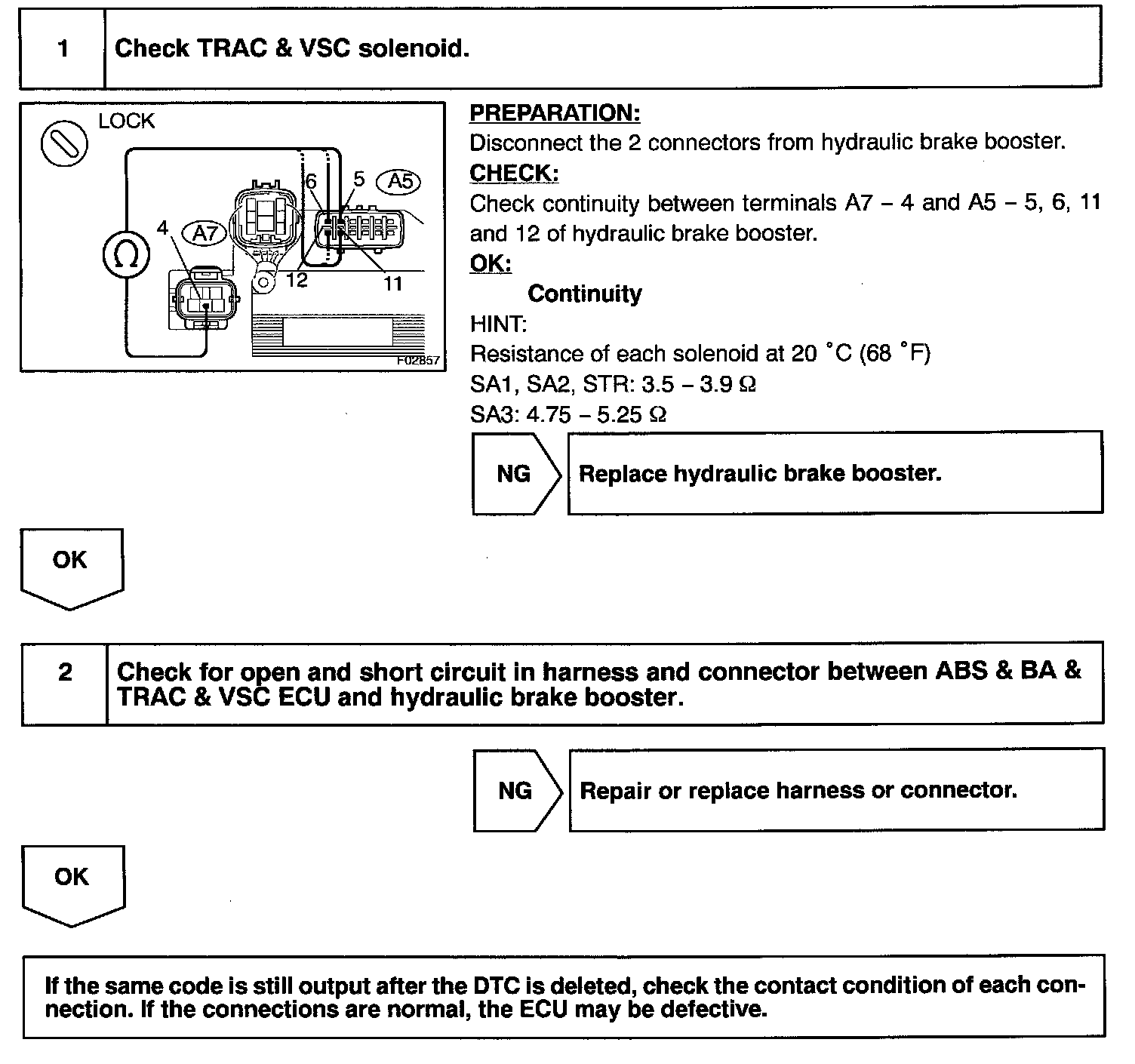

Steps 1 - 2:

INSPECTION PROCEDURE
