C1207 / 37 - P/R Range Switch Circuit

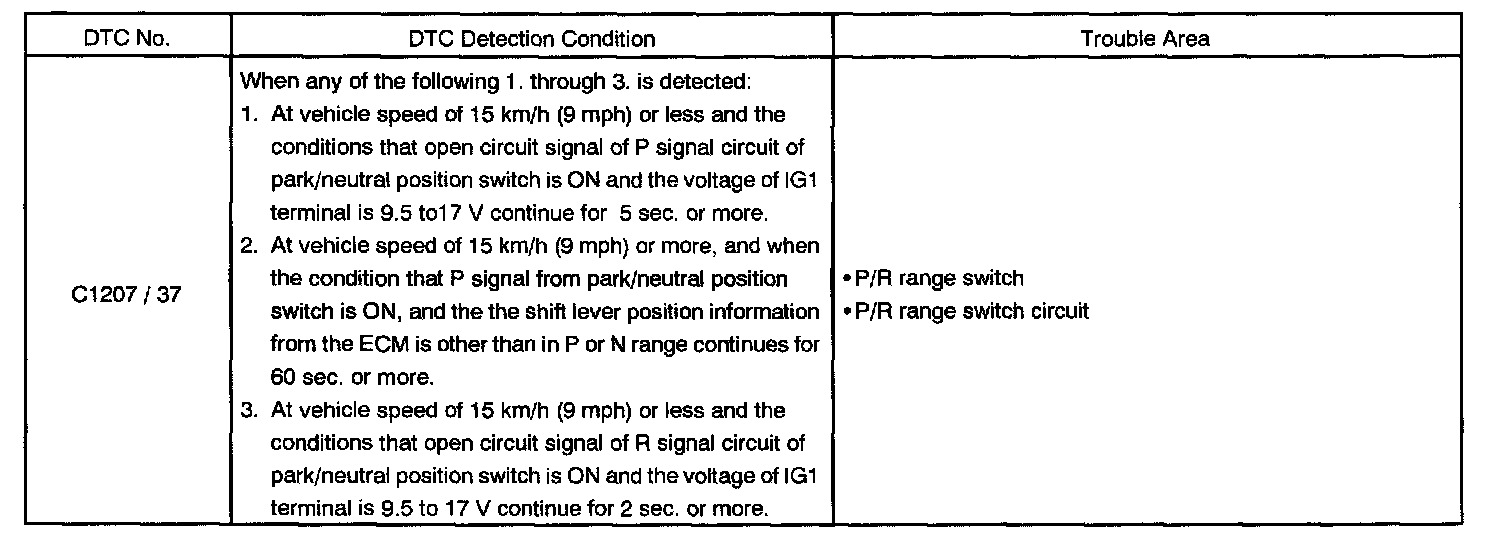

DTC Detection Condition:
CIRCUIT DESCRIPTION

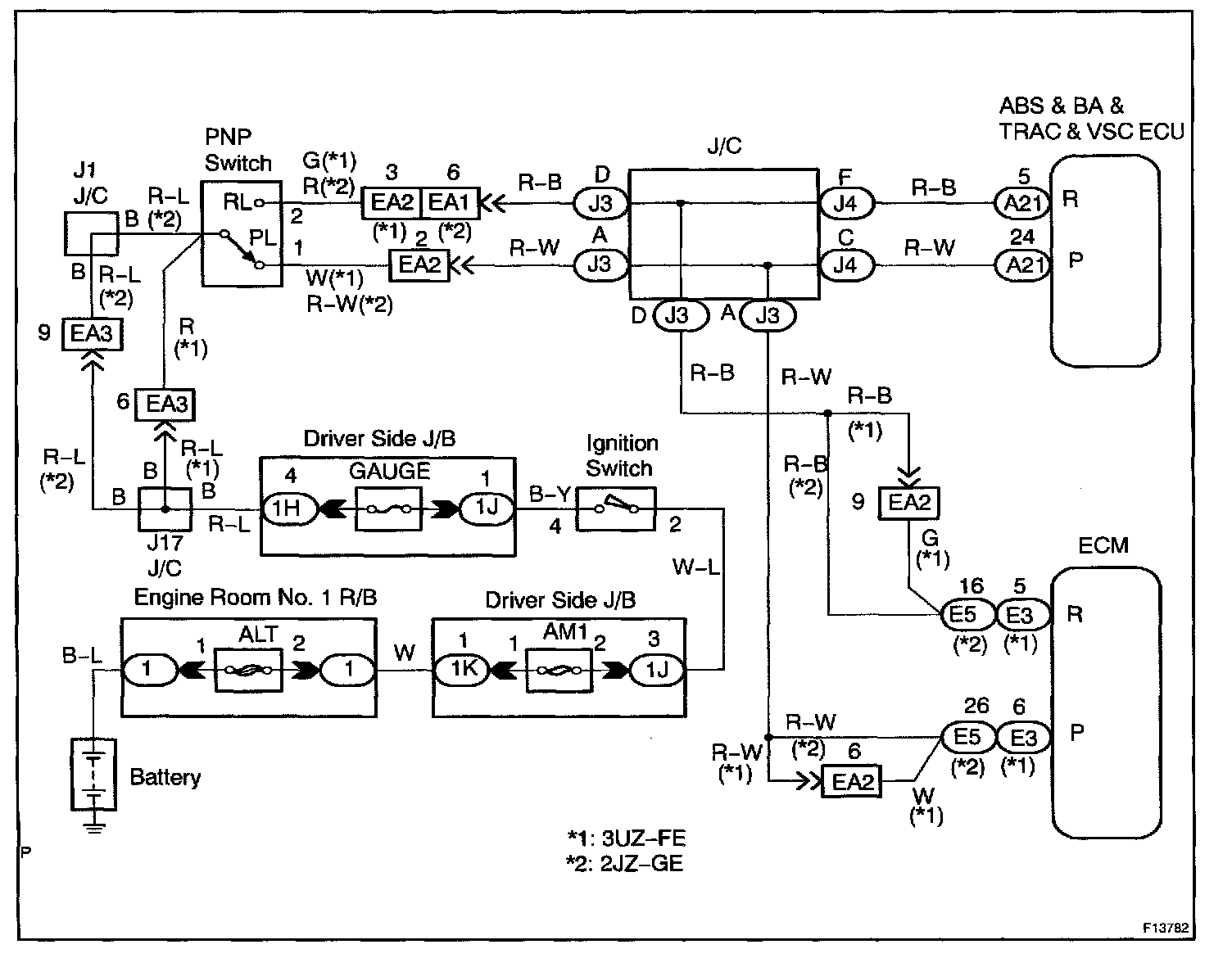

Wiring Diagram:
Steps 1 - 2:
INSPECTION PROCEDURE
