B1412 / 12 - Ambient Temperature Sensor Circuit

CIRCUIT DESCRIPTION

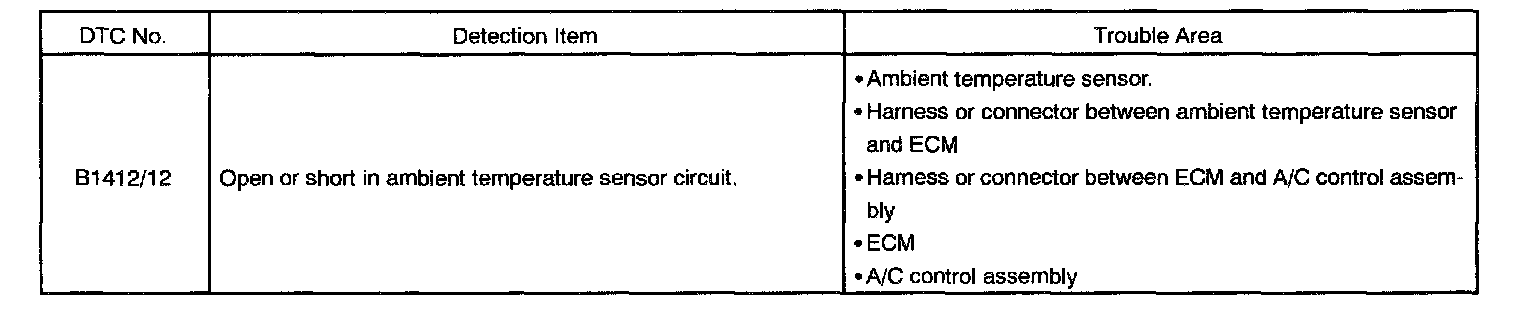

Detection Item:

This sensor detects the ambient temperature and sends the appropriate signals to the A/C control assembly.

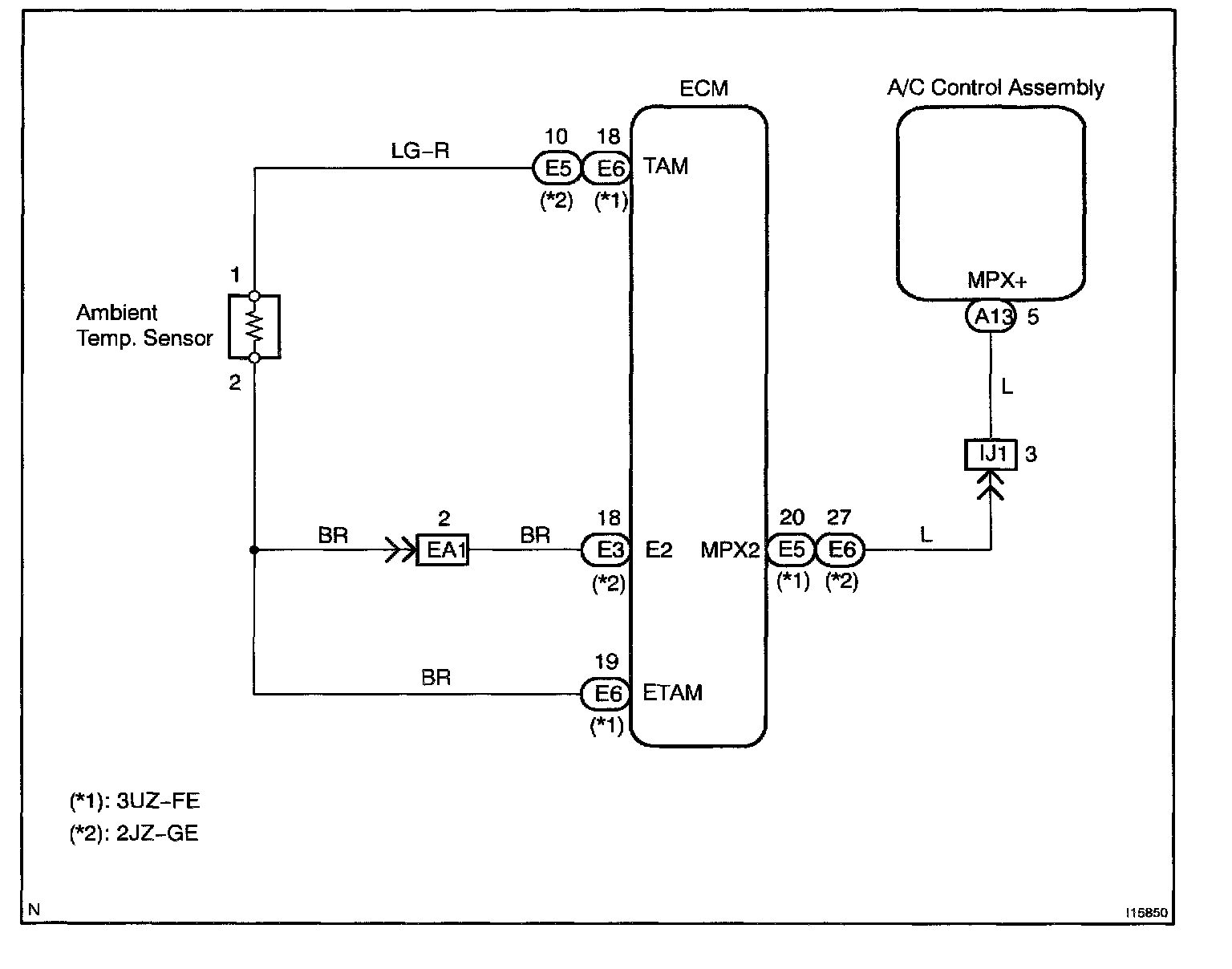

Wiring Diagram:

Steps 1 - 2:

Steps 3 - 4:

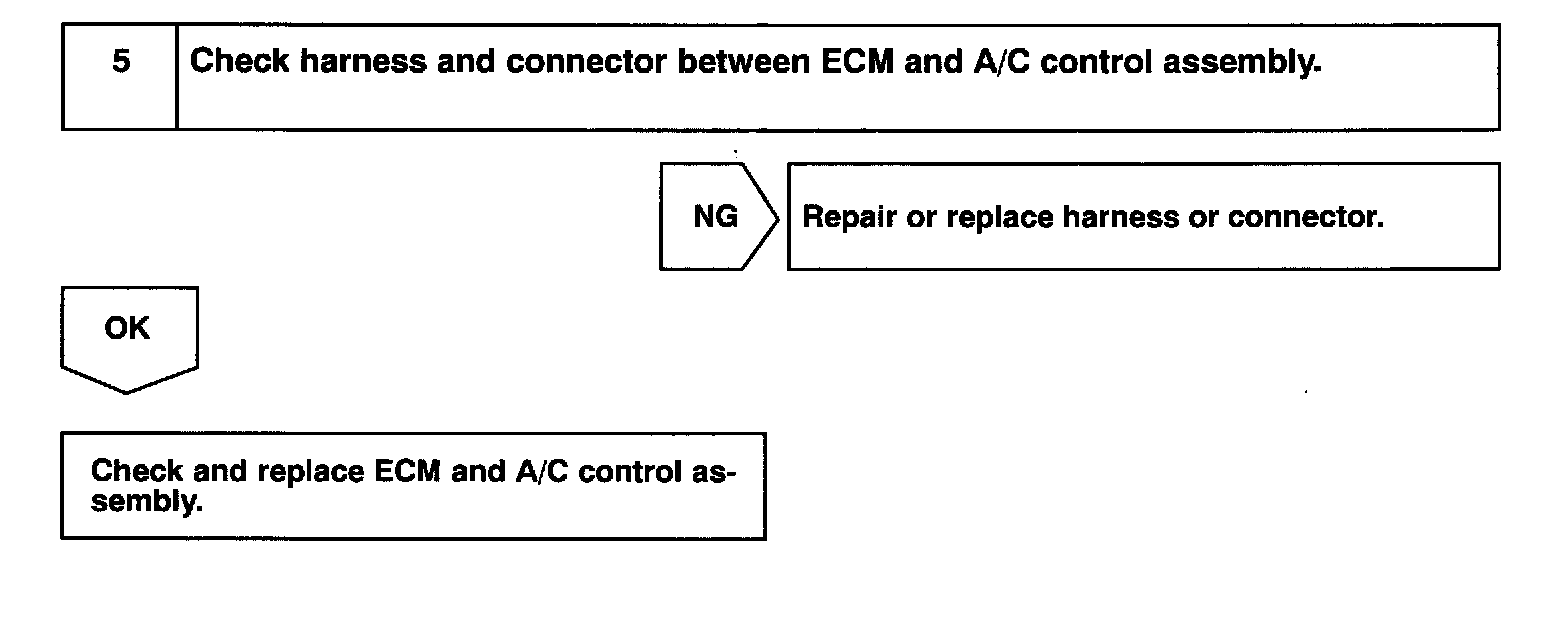

Step 5:

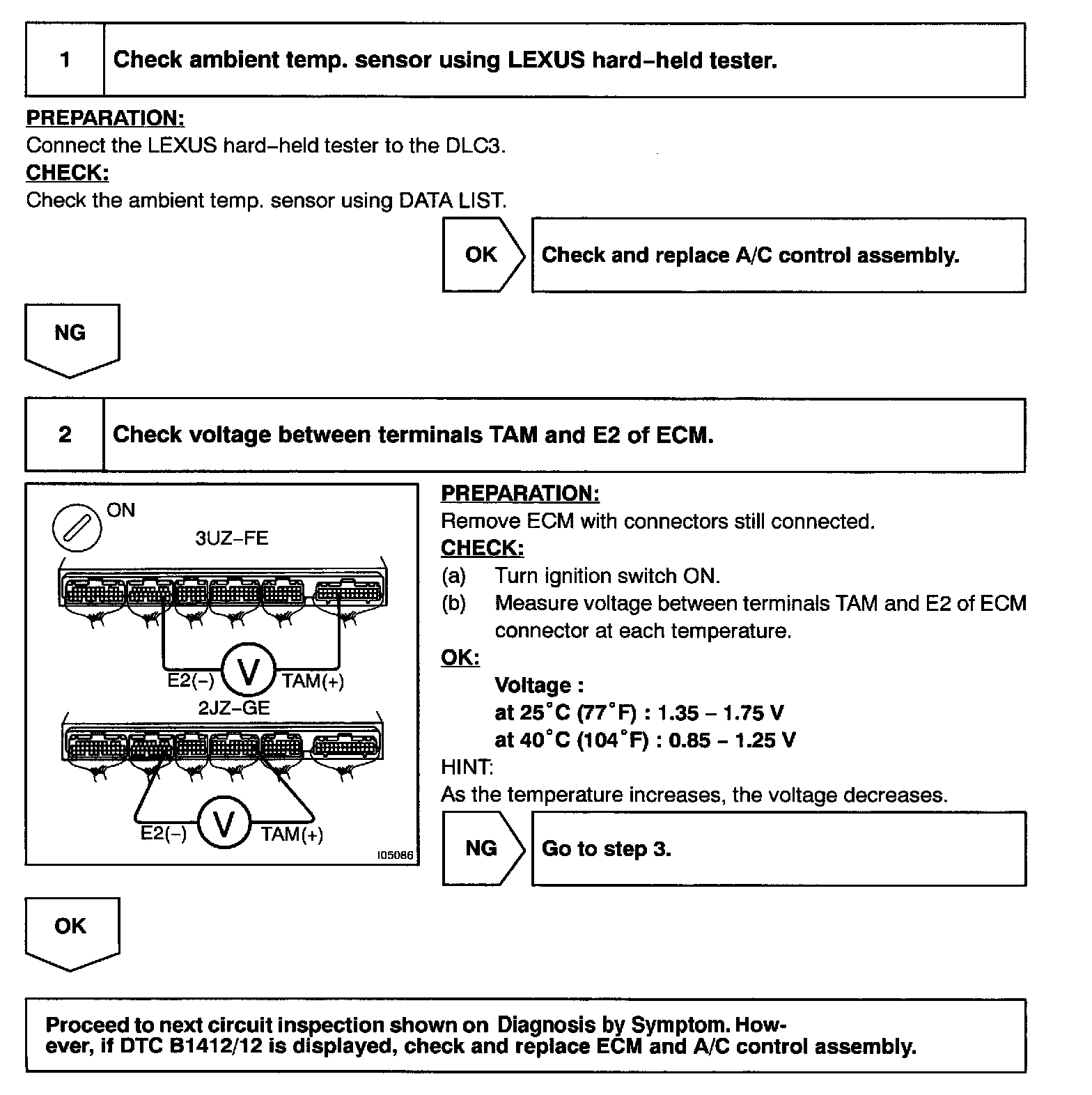

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start form step 2.
