B1281

B1281 / 81 - Airbag Sensor Assembly Communication Stop

CIRCUIT DESCRIPTION

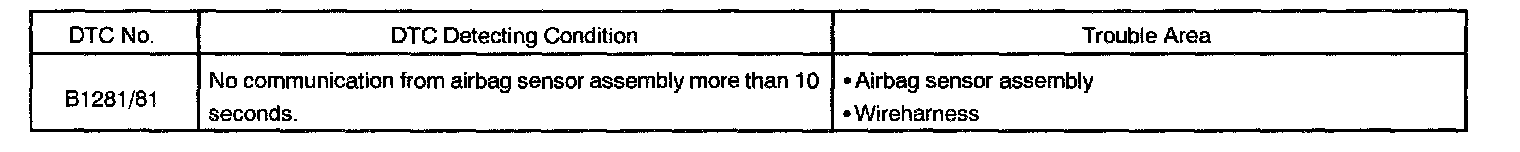

DTC Detecting Condition:

This DTC is output when communication stops between airbag sensor assembly, combination meter ECU and tilt and telescopic ECU.

Wiring Diagram:

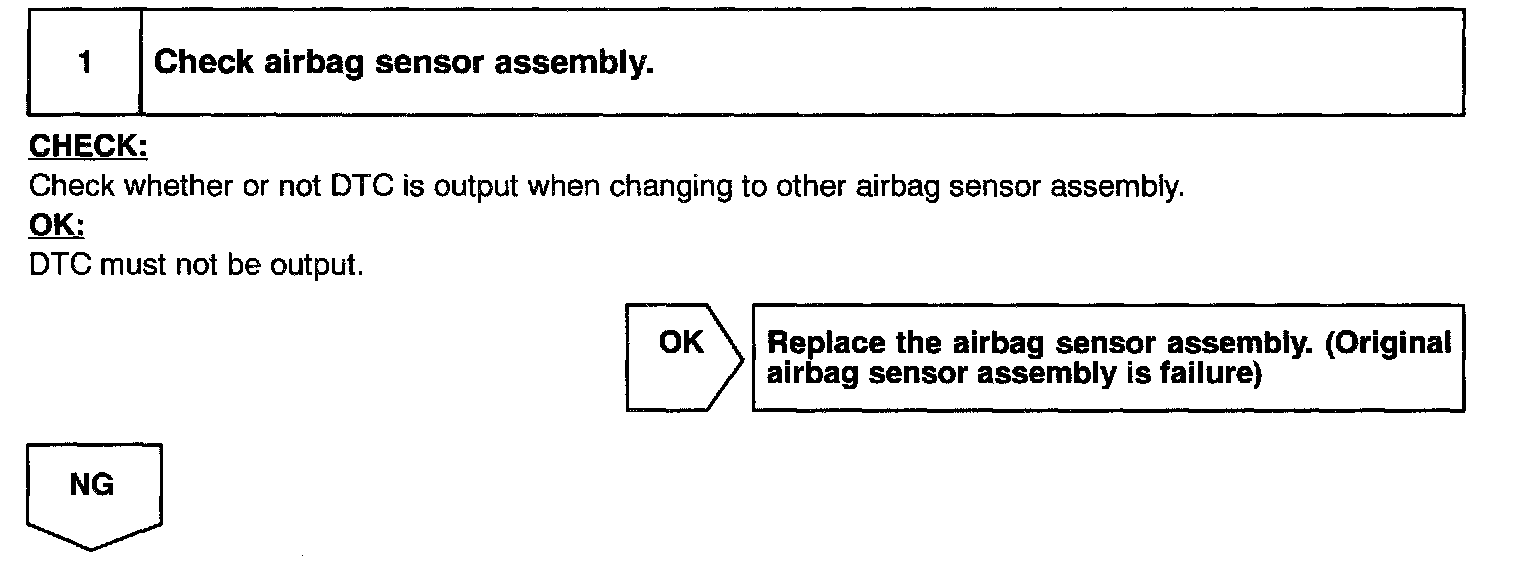

Step 1:

Step 2:

INSPECTION PROCEDURE
