B1242

B1242 / 42 - Wireless Door Lock Tuner Circuit Malfunction

CIRCUIT DESCRIPTION

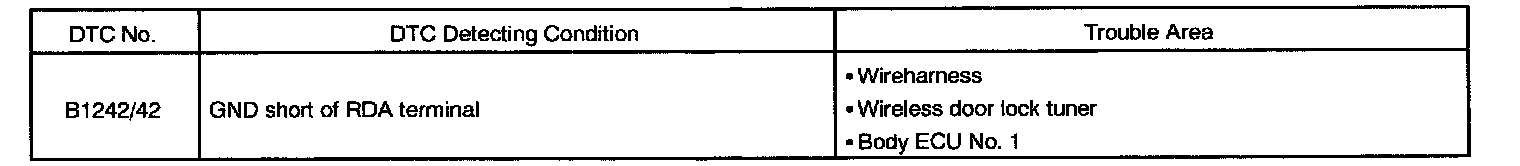

DTC Detecting Condition:

This DTC is output when GND short of RDA terminal is detected.

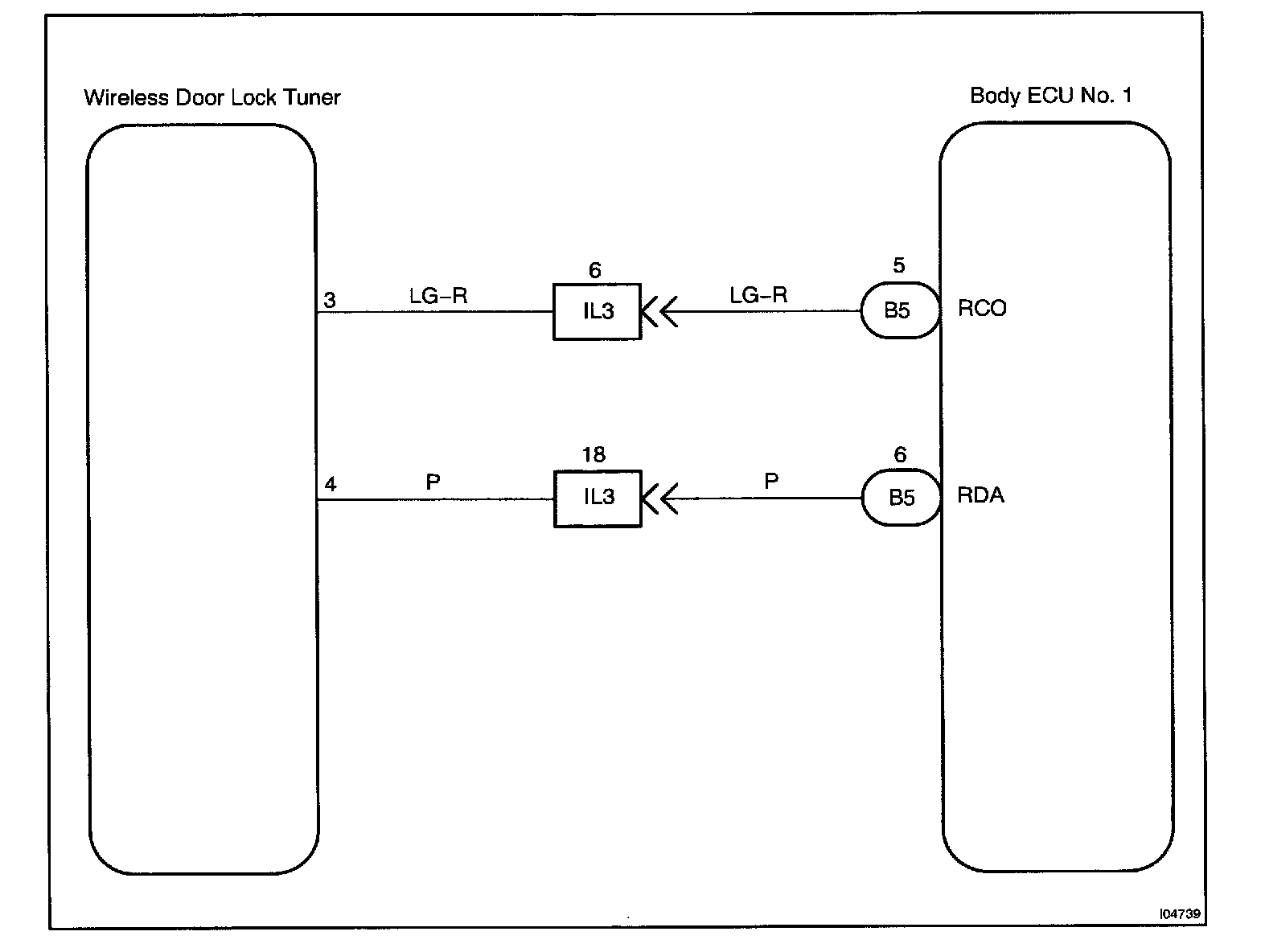

Wiring Diagram:

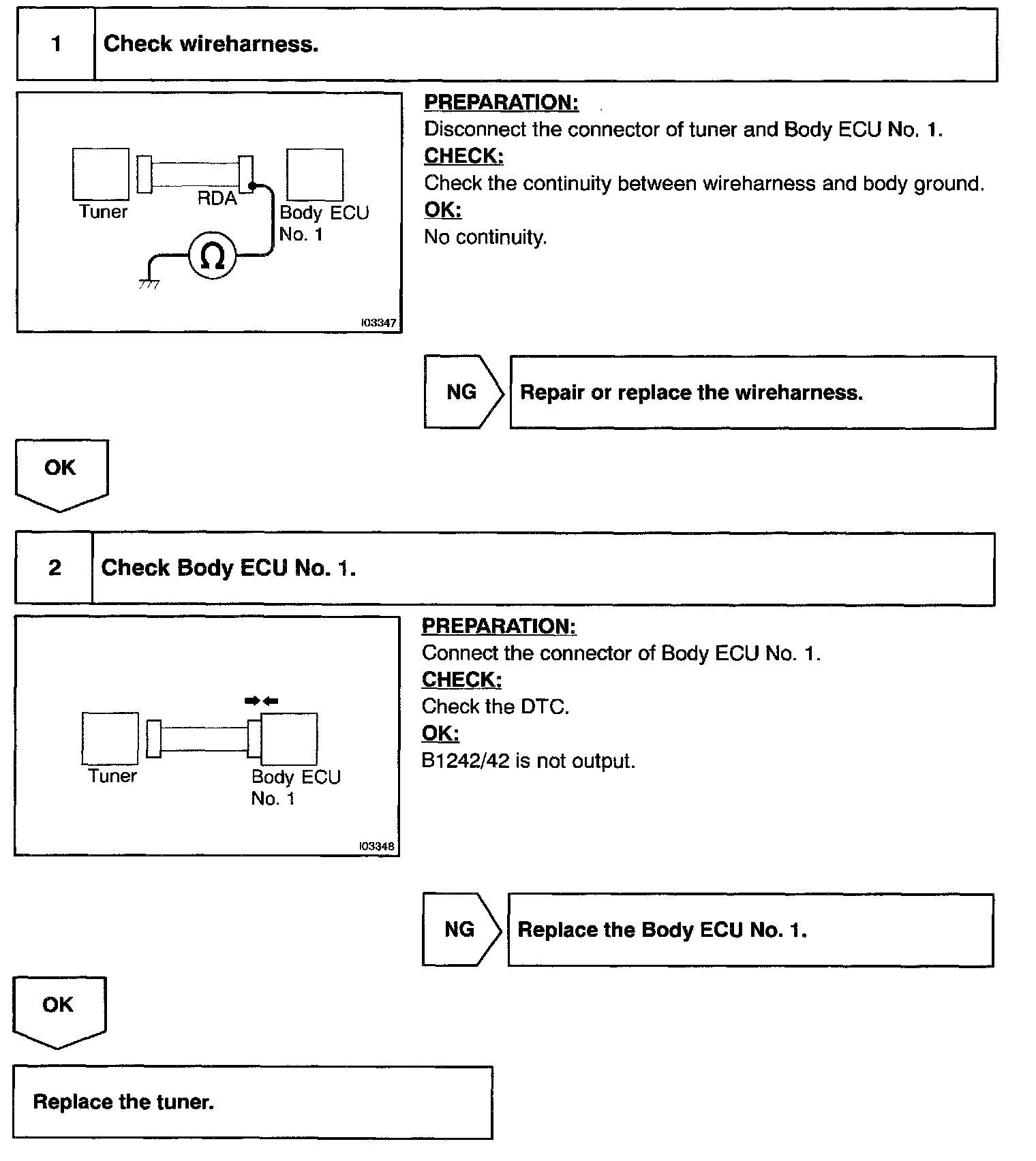

Steps 1 - 2:

INSPECTION PROCEDURE
