B1150

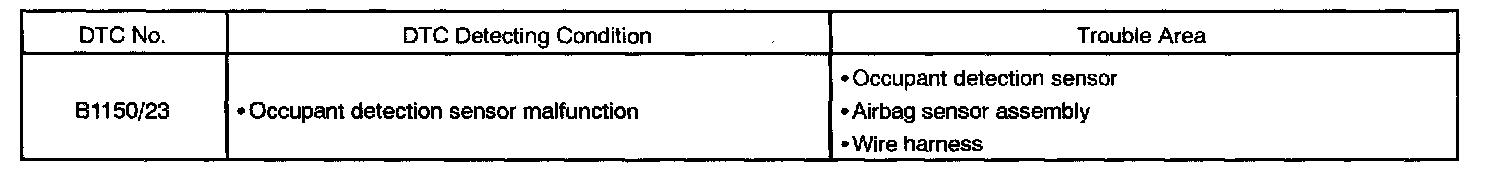

DTC Detecting Condition:

CIRCUIT DESCRIPTION
The occupant detection sensor circuit consists of the airbag sensor assembly and occupant detection sensor.

For details of the function of each components, see DESCRIPTION AND OPERATION.

DTC B1150/23 is recorded when a malfunction is detected in the occupant detection sensor circuit.

Wiring Diagram:

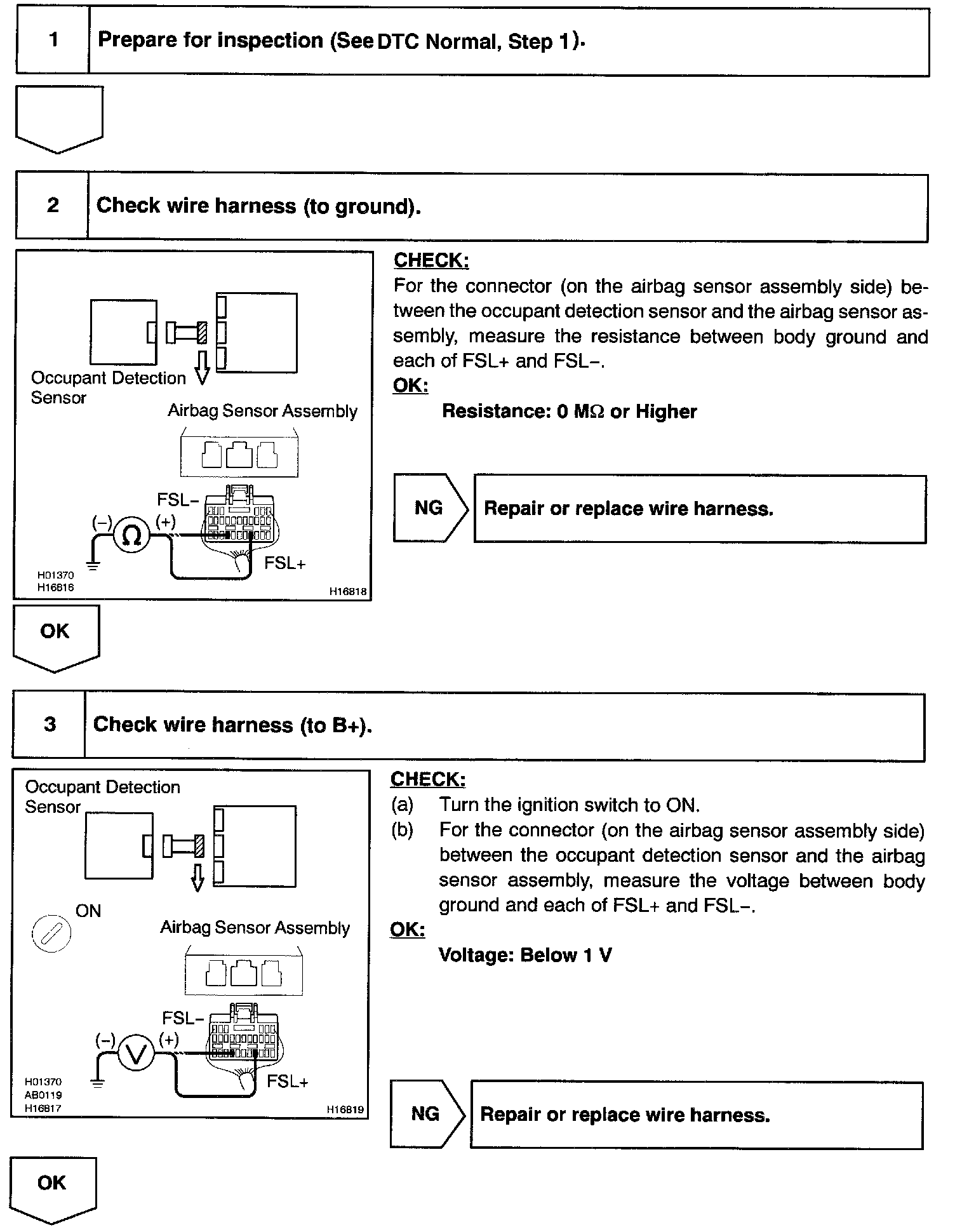

Steps 1 - 3:

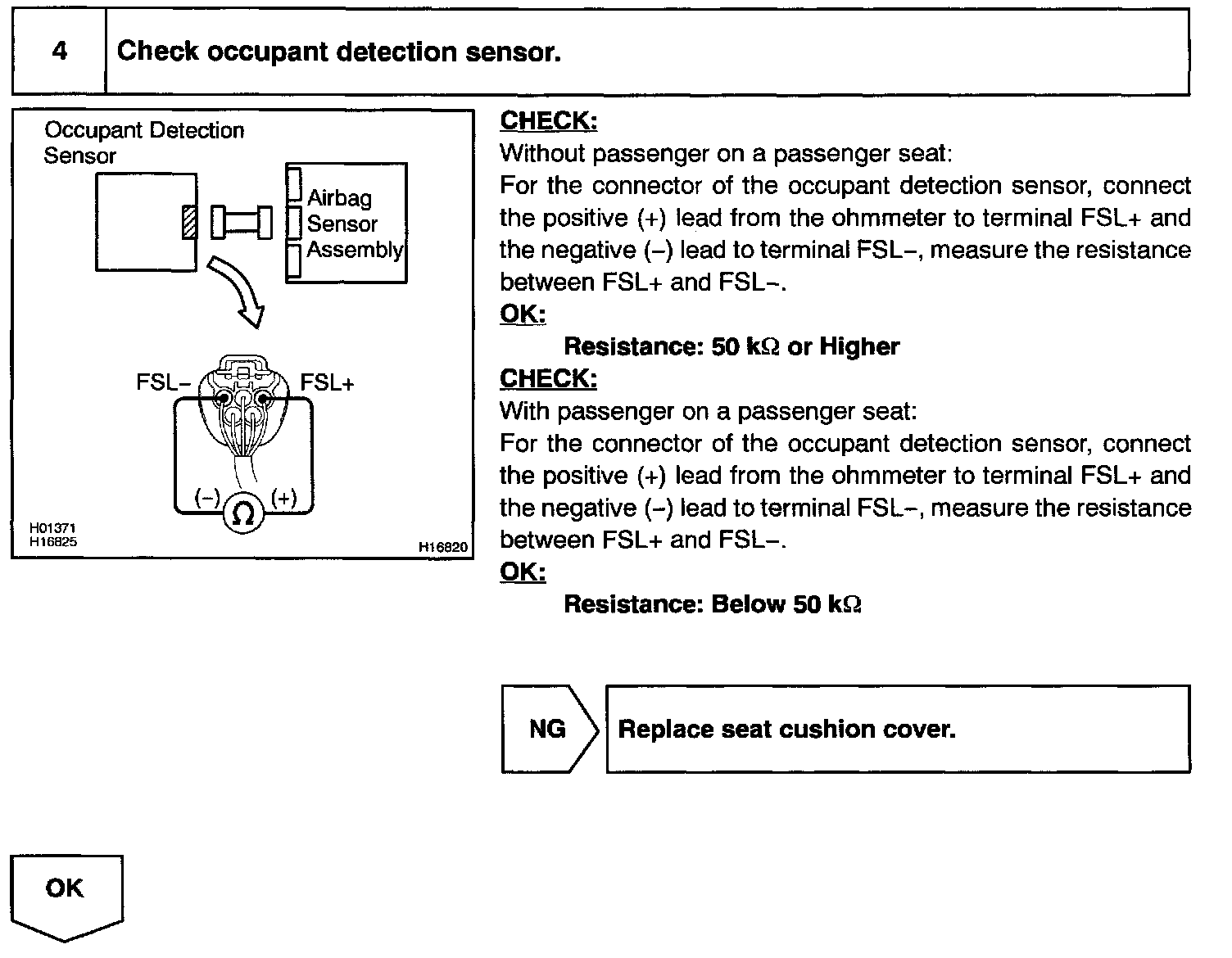

Step 4:

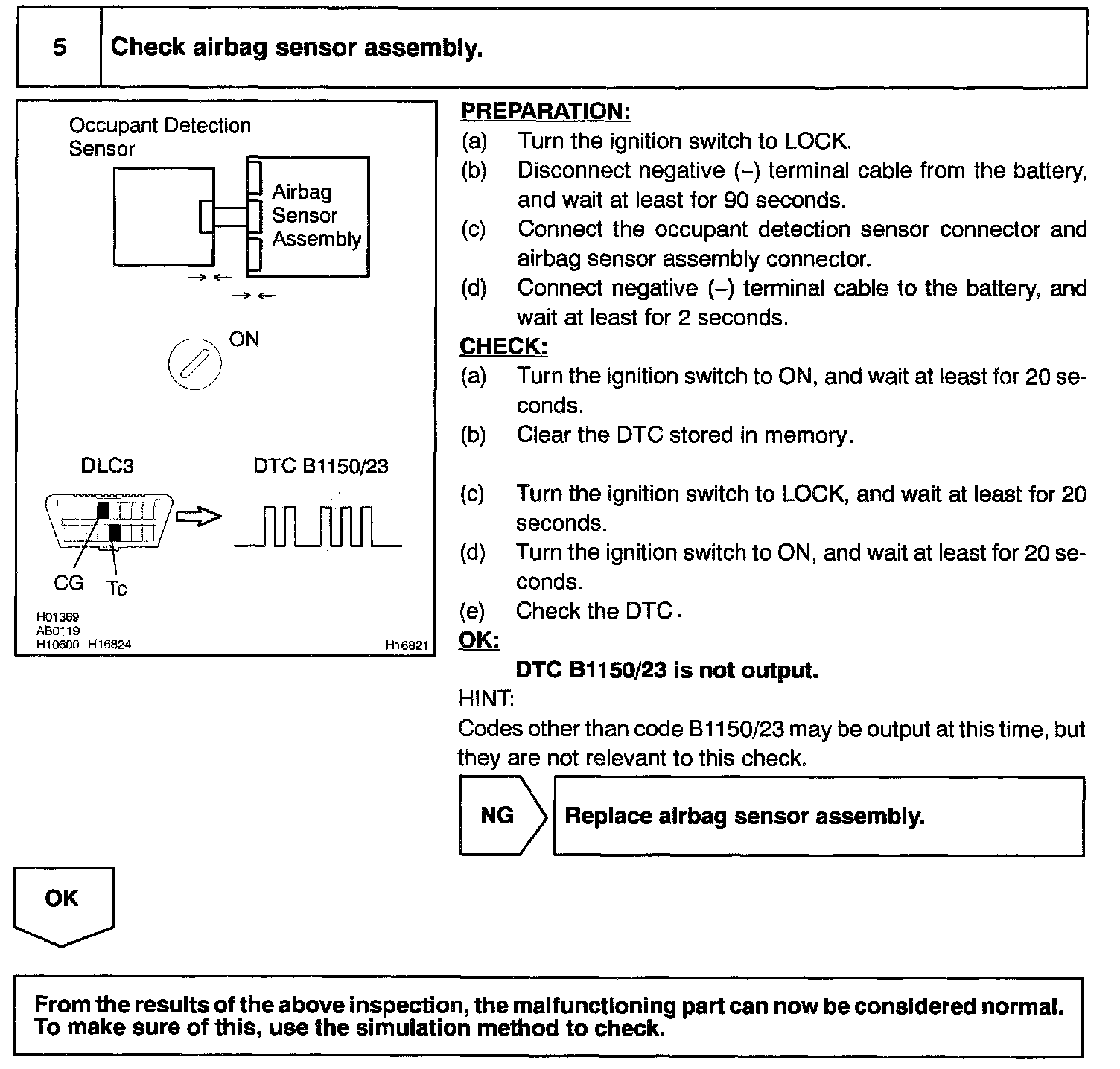

Step 5:

INSPECTION PROCEDURE
