Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the absorber control ECU, and the absorber control actuator.

Wiring Diagram:

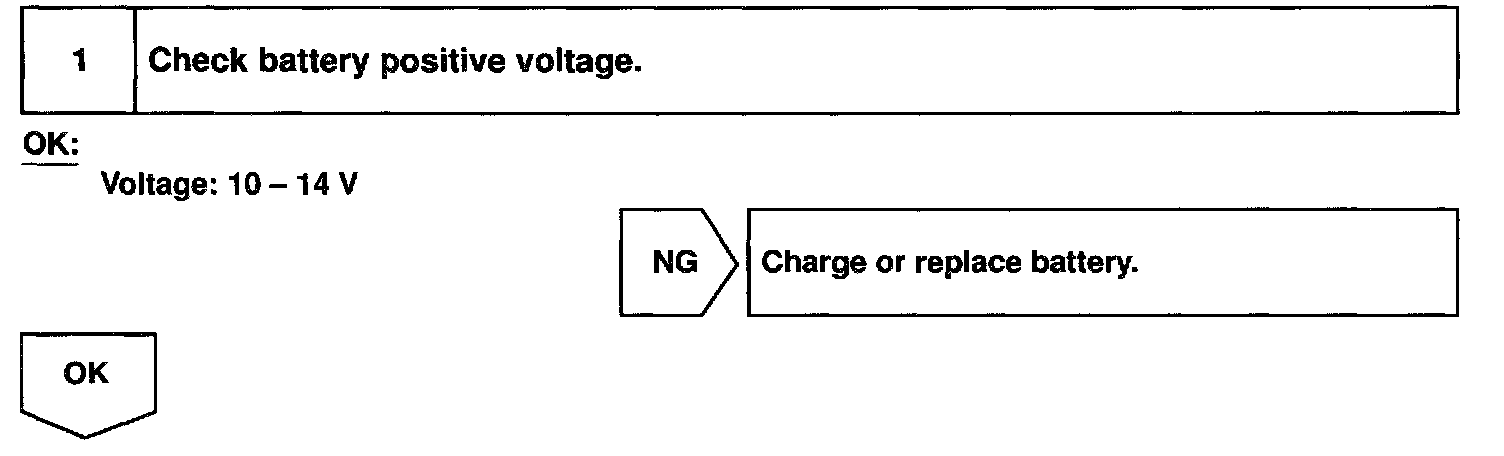

Step 1:

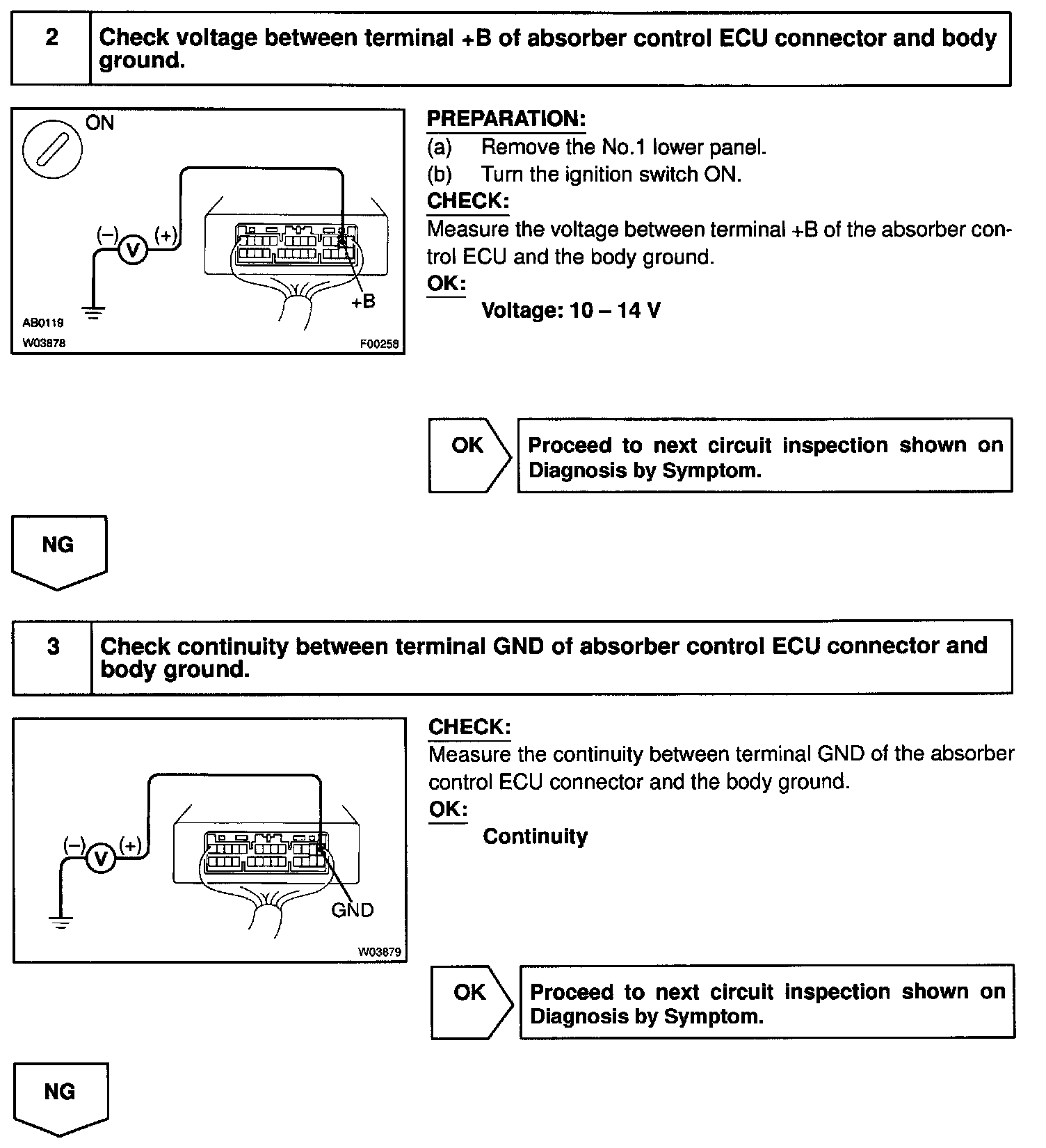

Steps 2 - 3:

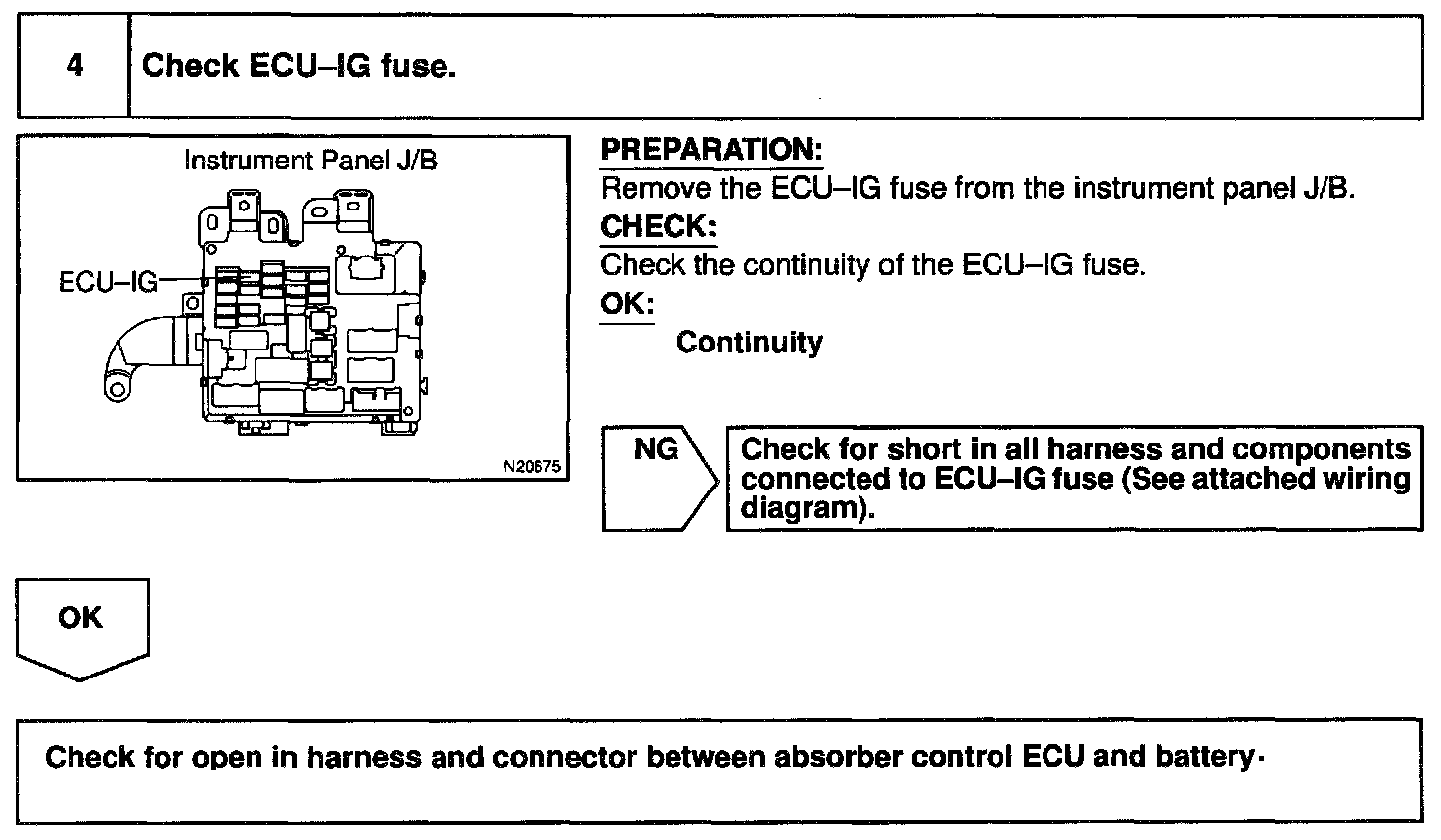

Step 4:




INSPECTION PROCEDURE
