Compressor Clutch Relay: Testing and Inspection

INSPECTION

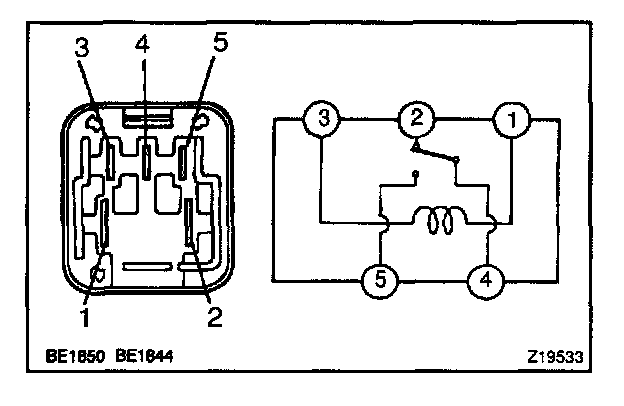

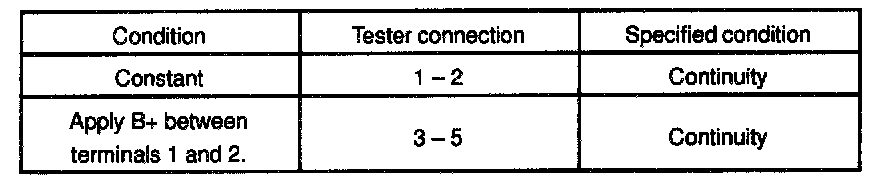

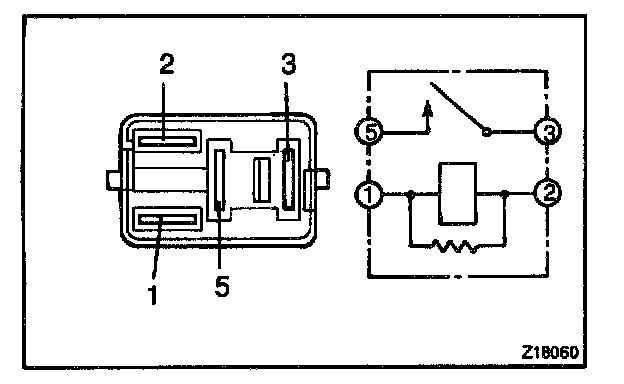

1. INSPECT HEATER MAIN RELAY (Marking: HTR RLY) CONTINUITY
If continuity is not as specified, replace the relay.

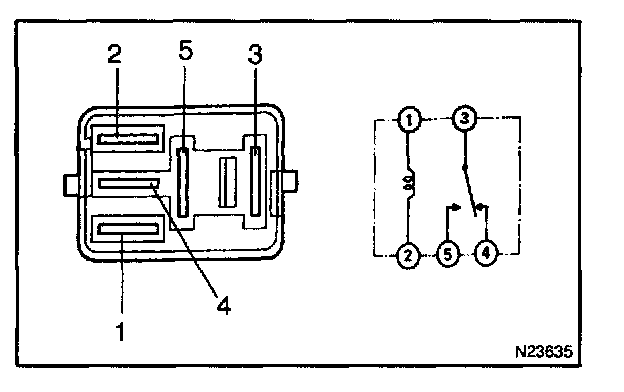

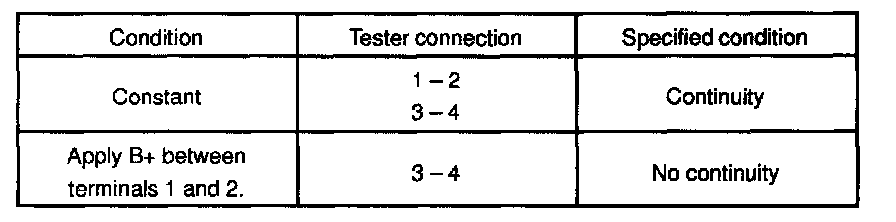

2. INSPECT MAGNETIC CLUTCH RELAY (Marking: MG CLT RLY) CONTINUITY
If continuity is not as specified, replace the relay.

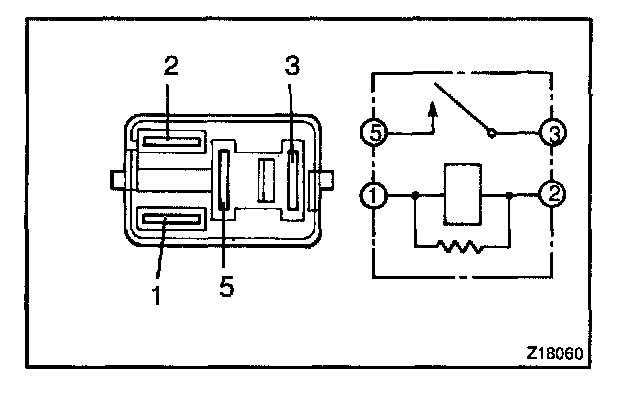

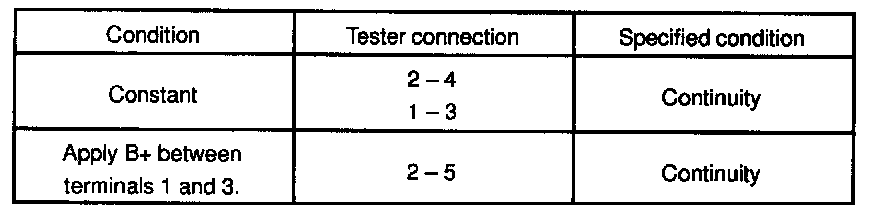

3. INSPECT No.1 COOLING FAN RELAY (Marking: FAN RLY NO.1) CONTINUITY
If continuity is not as specified, replace the relay.

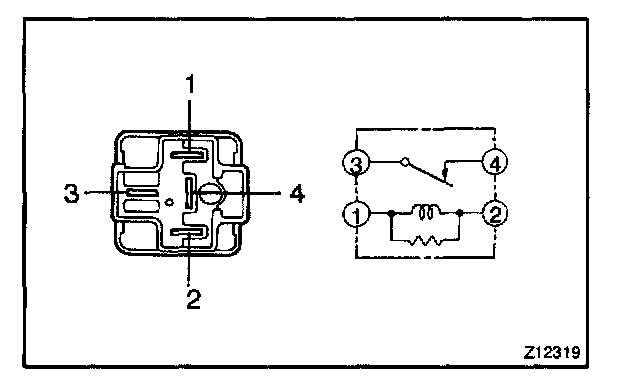

4. INSPECT No.2 COOLING FAN RELAY (Marking: FAN RLY NO.2) CONTINUITY
If continuity is not as specified, replace the relay

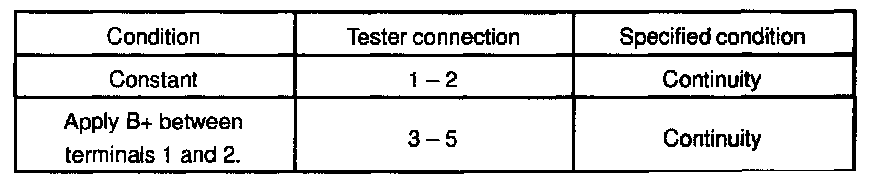

5. INSPECT No.3 COOLING FAN RELAY (Marking: FAN RLY NO.3) CONTINUITY
If continuity is not as specified, replace the relay.
