Fail-Safe Operation
Fail-Safe Operation
P0100 - P1300:

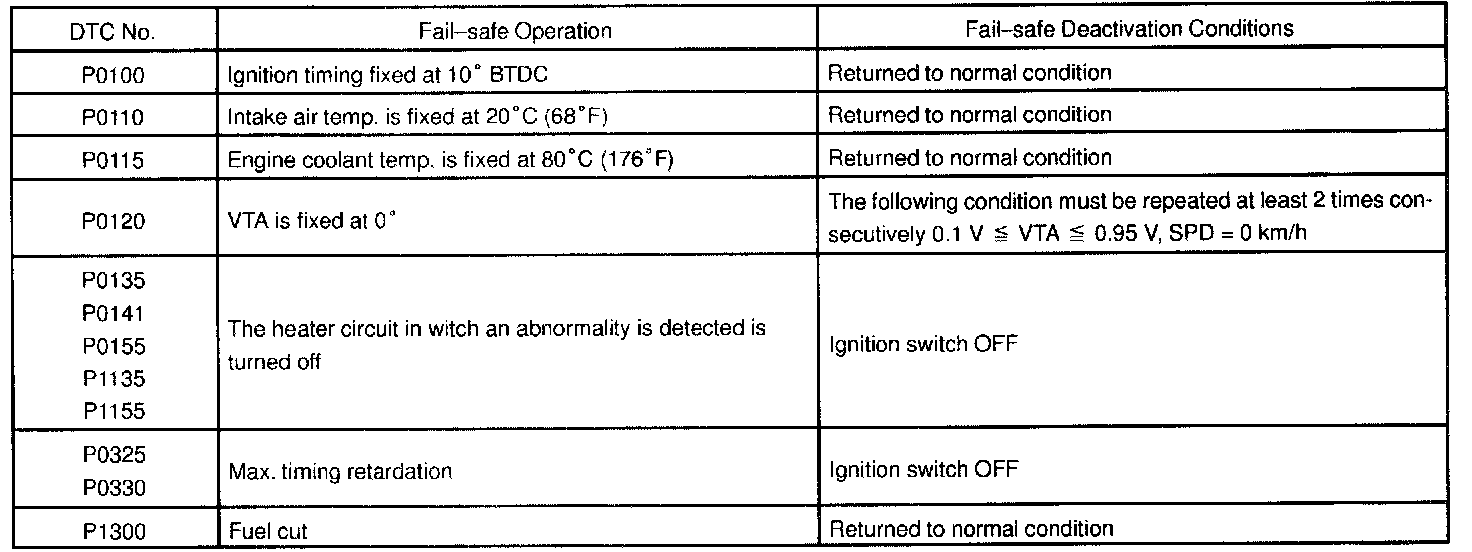

FAIL-SAFE CHART
If any of the following codes are recorded, the ECM enters fail-safe mode.
