Cabin Air Filter / Purifier: Service and Repair

REPLACEMENT

REMOVE AIR REFINER FILTER

Air Conditioning System:

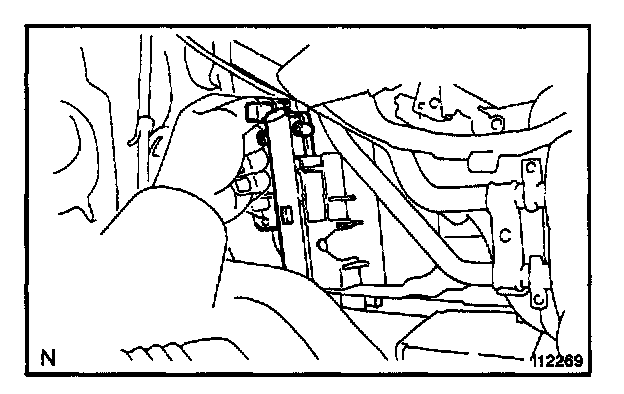

a. Release the 3 claws and remove the heater protector.

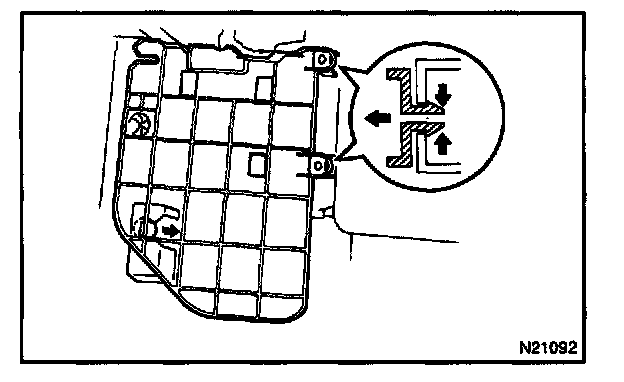

b. Release the 2 claws and remove the filter cover.

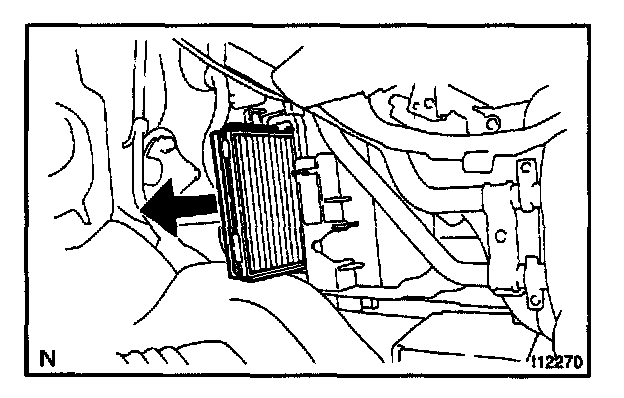

c. Pull out the air refiner filter.
