Home >> Lexus >> 2001 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Combination Meter >> Troubleshooting Diagnosis >> 10. Fuel Gauge Does Not Operate or Operation Is Abnormal

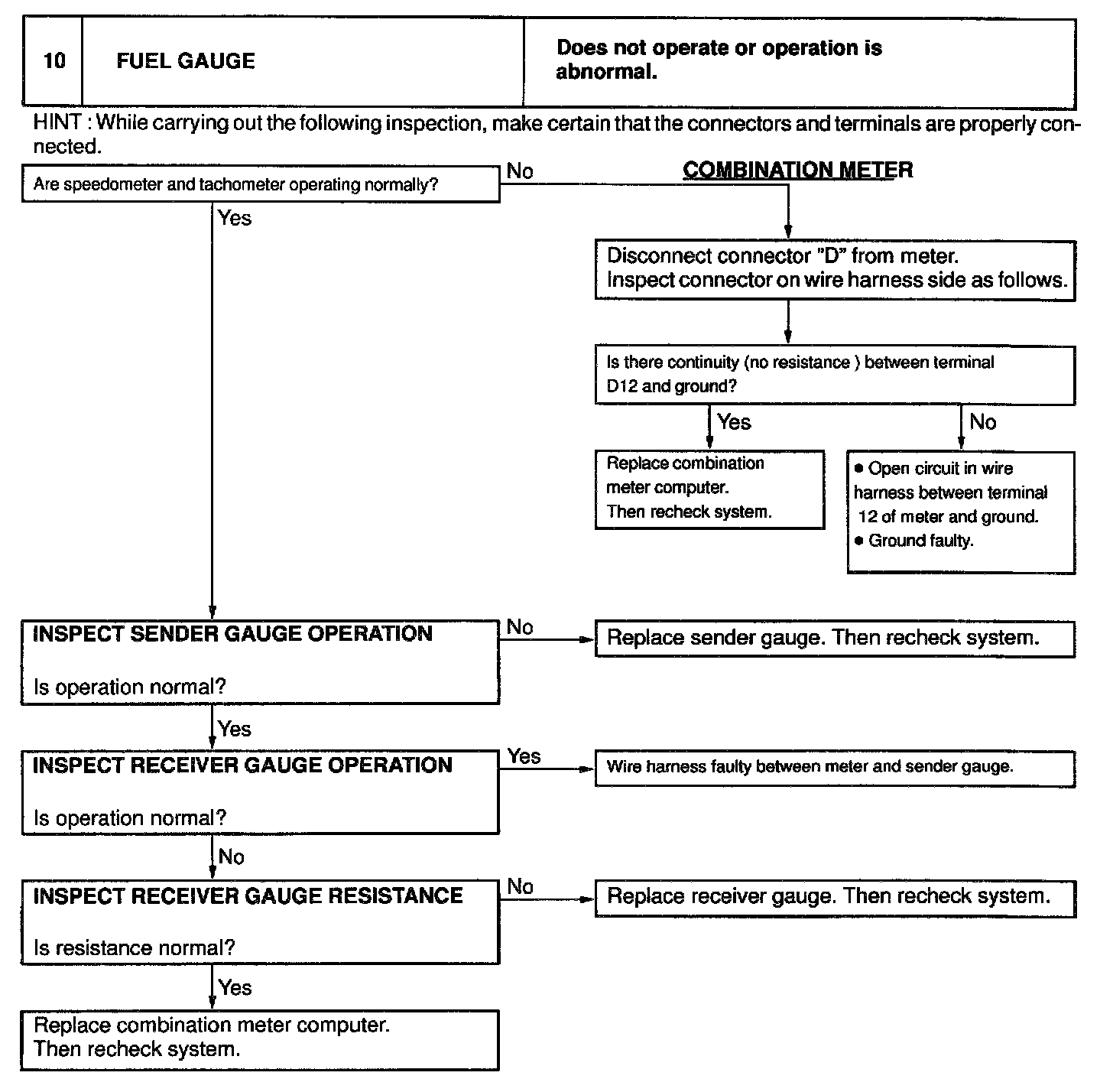

10. Fuel Gauge Does Not Operate or Operation Is Abnormal
