Illumination Light System

INSPECTION




1. Combination Meter Adjustment:
INSPECT RHEOSTAT LIGHT CONTROL VOLUME
a. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1.
b. Connect the positive (+) lead from the voltmeter to terminal 5 and negative (-) lead to terminal 3.
c. Turn the rheostat knob and check that the voltage changes.




2. Illumination Adjustment:
INSPECT RHEOSTAT LIGHT CONTROL VOLUME
a. Connect the positive (+) lead from the battery to terminal 5 and 7 and negative (-) lead to terminal 1.
b. Connect the positive (+) lead from the voltmeter to terminal 7 and negative (-) lead to terminal 2.
c. Turn the rheostat knob and check that the voltage changes.




3. Tail Cancel:
INSPECT RHEOSTAT LIGHT CONTROL VOLUME
a. Connect the ohmmeter to terminals 6 and 7.
b. Turn the rheostat knob fully clockwise and check that current flow stops.
If switch is not as specified, replace the volume.

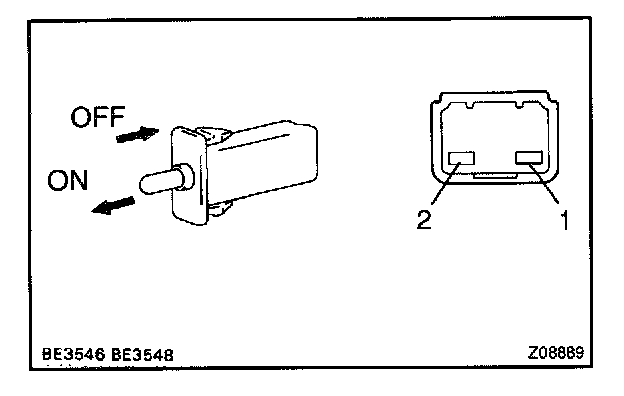

4. INSPECT GLOVE BOX LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the relay.

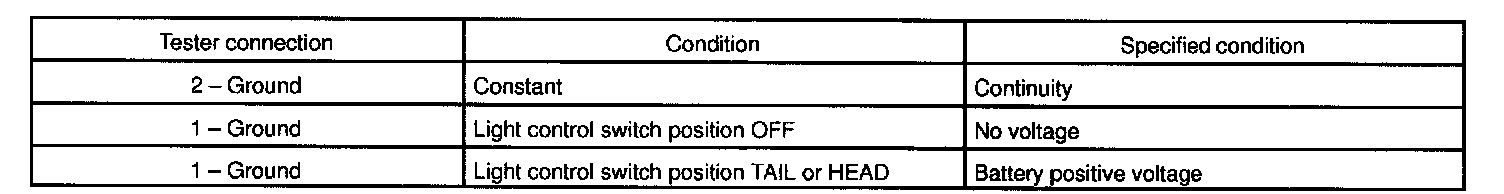

5. INSPECT GLOVE BOX LIGHT SWITCH CIRCUIT

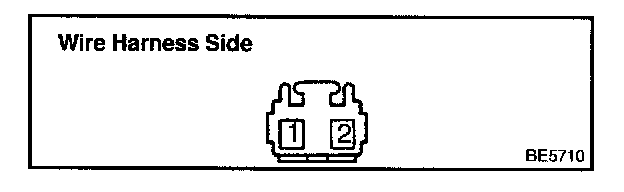

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
