Home >> Lexus >> 2001 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Clock >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

CLOCK TROUBLESHOOTING

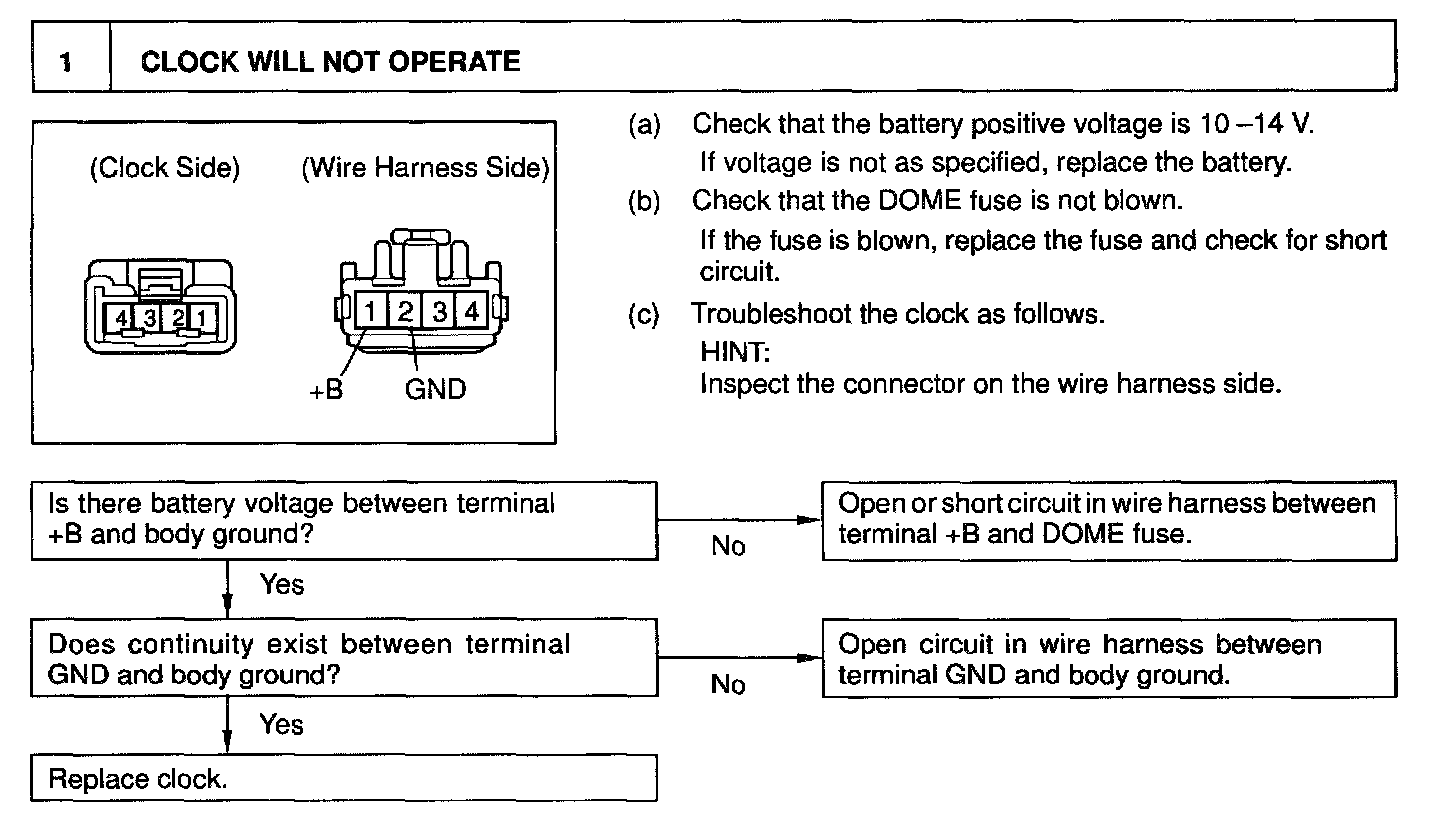

Step 1:

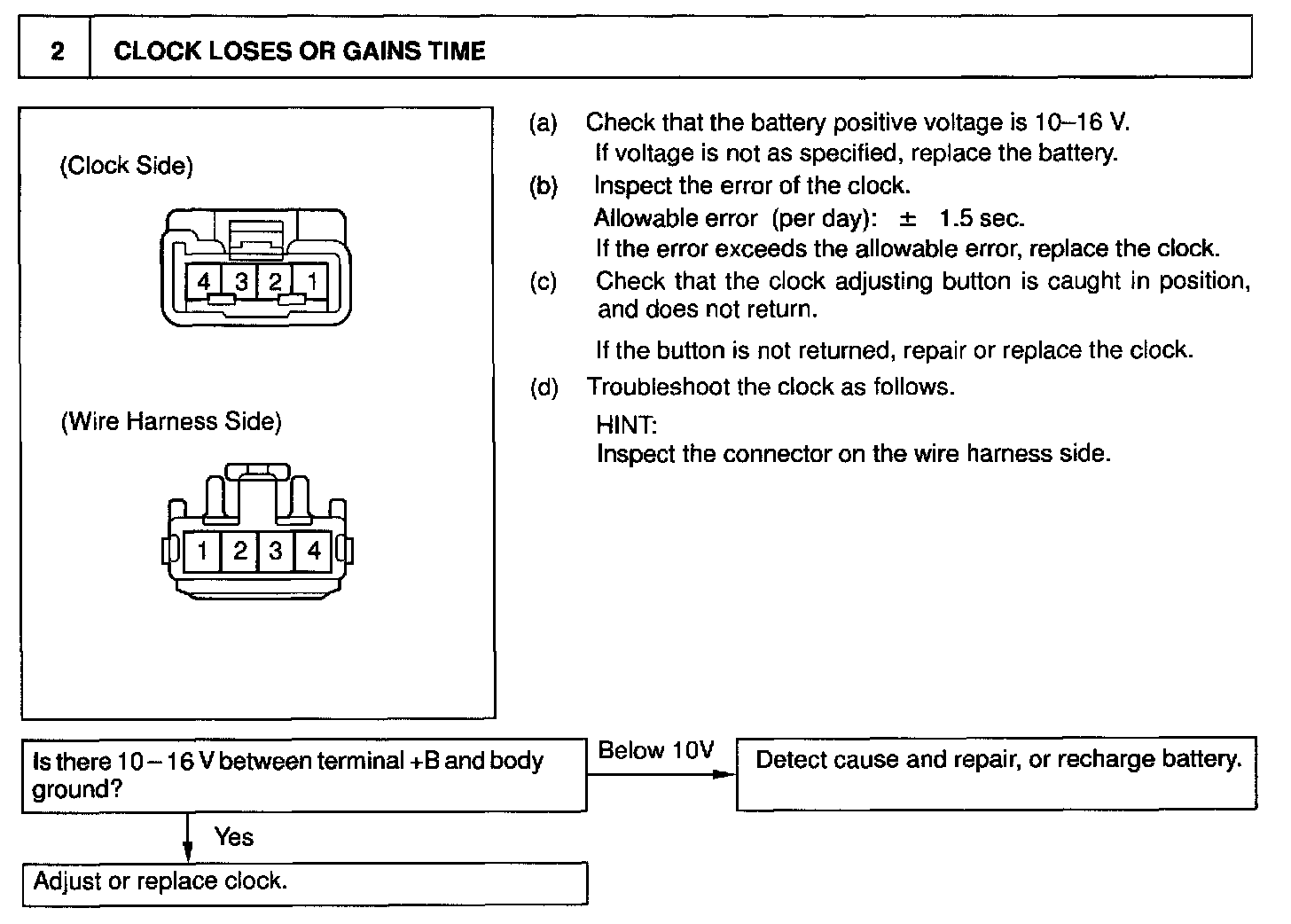

Step 2:

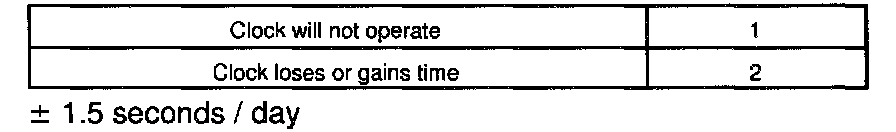

HINT: Troubleshoot the clock according to the table.
