Actuator Check

INDICATOR CHECK

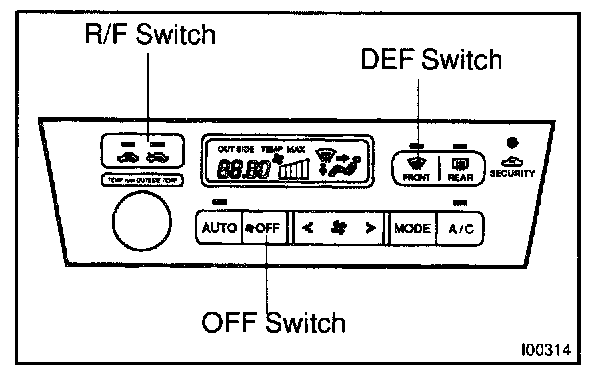

a. Turn the ignition switch ON while pressing the A/C control AUTO switch and R/F switch simultaneously.

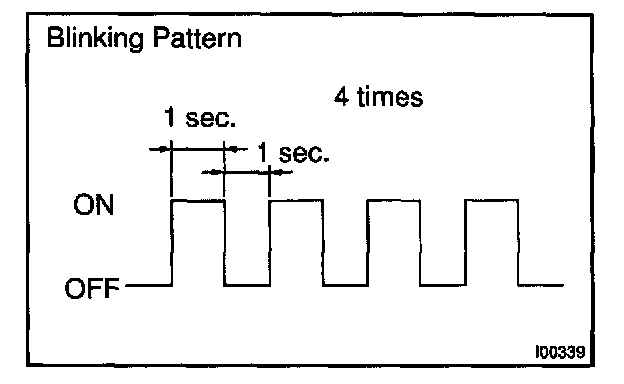

b. Check that the indicators light up and go off at second intervals 4 times in succession.

HINT:
- After the indicator check is completed, the system enters the DTC begins automatically.
- Press the OFF switch when desiring to cancel the check mode.


ACTUATOR CHECK







a. After entering the DTC check mode (Sensor Check Mode) press the R/F switch.

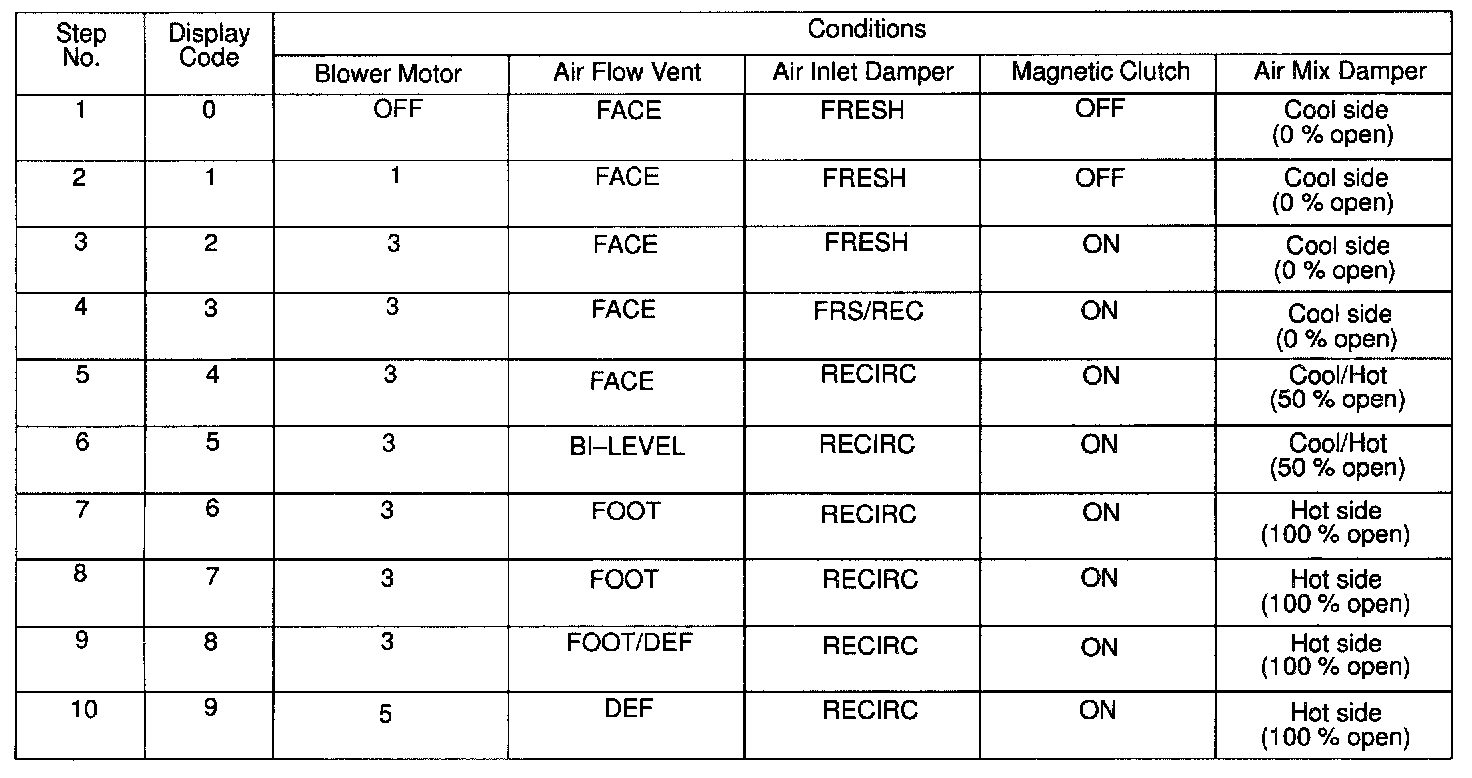

b. Since each damper, motor and relay automatically operates at 1 sec. intervals beginning in order from 10 in the temperature display, check the temperature and air flow visually and by hand.
It the slower display is desired, press the DEF switch and change it to step operation. Each time the DEF switch is pressed, the display changes by 1 step.

HINT:
- Code are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the OFF switch.
