Removal and Installation

Air Conditioning Control Assembly:

REMOVAL

1. REMOVE THESE PARTS:
a. End cluster finish panel
b. Center cluster finish panel




2. REMOVE A/C CONTROL ASSEMBLY

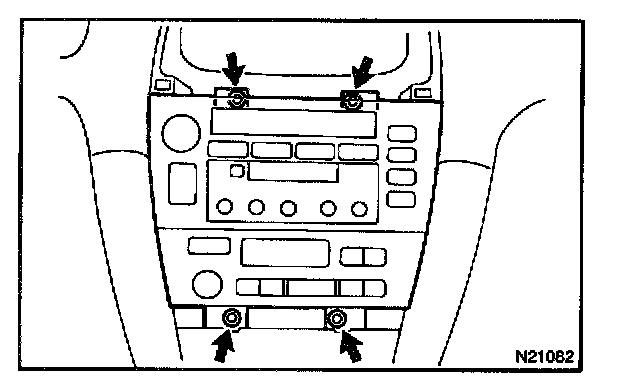

a. Remove the 4 bolts and pull out the A/C control assembly with radio, then disconnect the connectors.




b. Remove the 8 bolts, 4 screws and bracket.
c. Remove the A/C control assembly from the radio.

INSTALLATION
Installation is in the reverse order of removal.
