Radiator Cooling Fan Motor: Service and Repair

REMOVAL





1. REMOVE NO.1 COOLING FAN
a. Disconnect the No.2 engine room relay block from the battery holddown clamp.
b. Disconnect the cooling fan connector.
c. Disconnect the No.1 ECT switch wire connector.
d. Disconnect the No.1 ECT switch wire clamps.

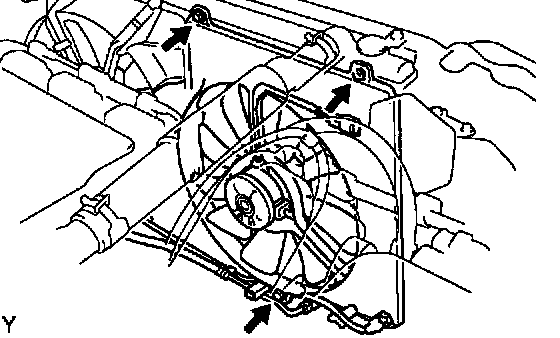

e. Remove the 2 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)





2. REMOVE NO.2 COOLING FAN
a. Drain the engine coolant.
b. Disconnect the upper radiator hose from the radiator.
c. Disconnect the cooling fan connector.

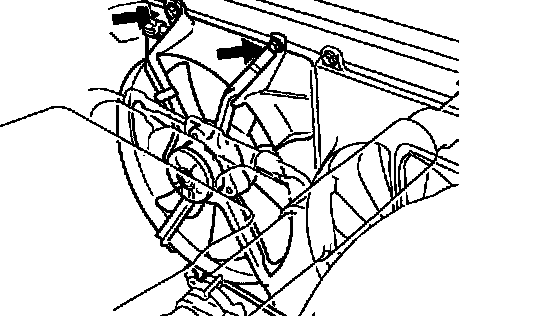

d. Remove the 3 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)

DISASSEMBLY
1. REMOVE NO.1 COOLING FAN

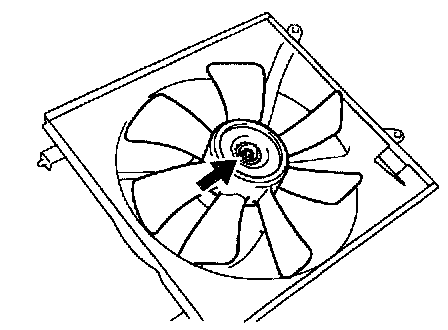

a. Remove the nut and fan.

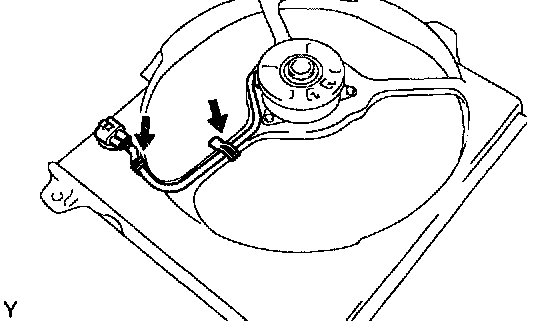

b. Disconnect the lead wire from the fan shroud.

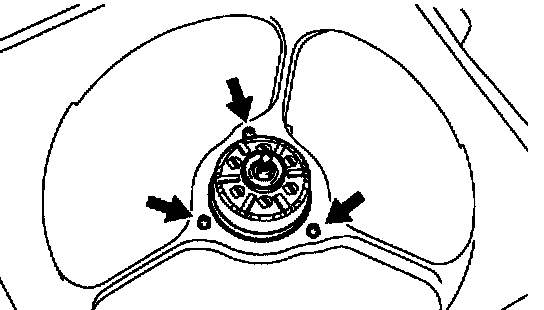

c. Remove the 3 screws and fan motor.
2. REMOVE NO.2 COOLING FAN





a. Remove the nut and fan.





b. Disconnect the lead wire from the fan shroud.

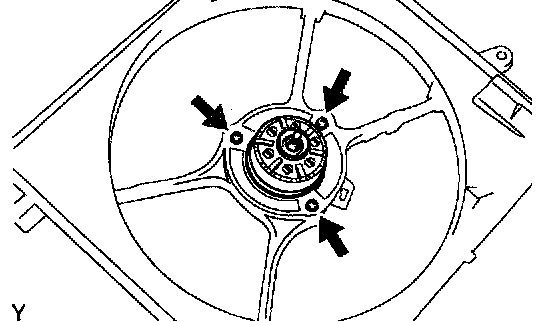

c. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.

INSTALLATION
Installation is in the reverse order of removal.
