Lexus
>>
2001
>>
ES 300 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
>>
Instrument Panel / Center Console
Instrument Panel / Center Console

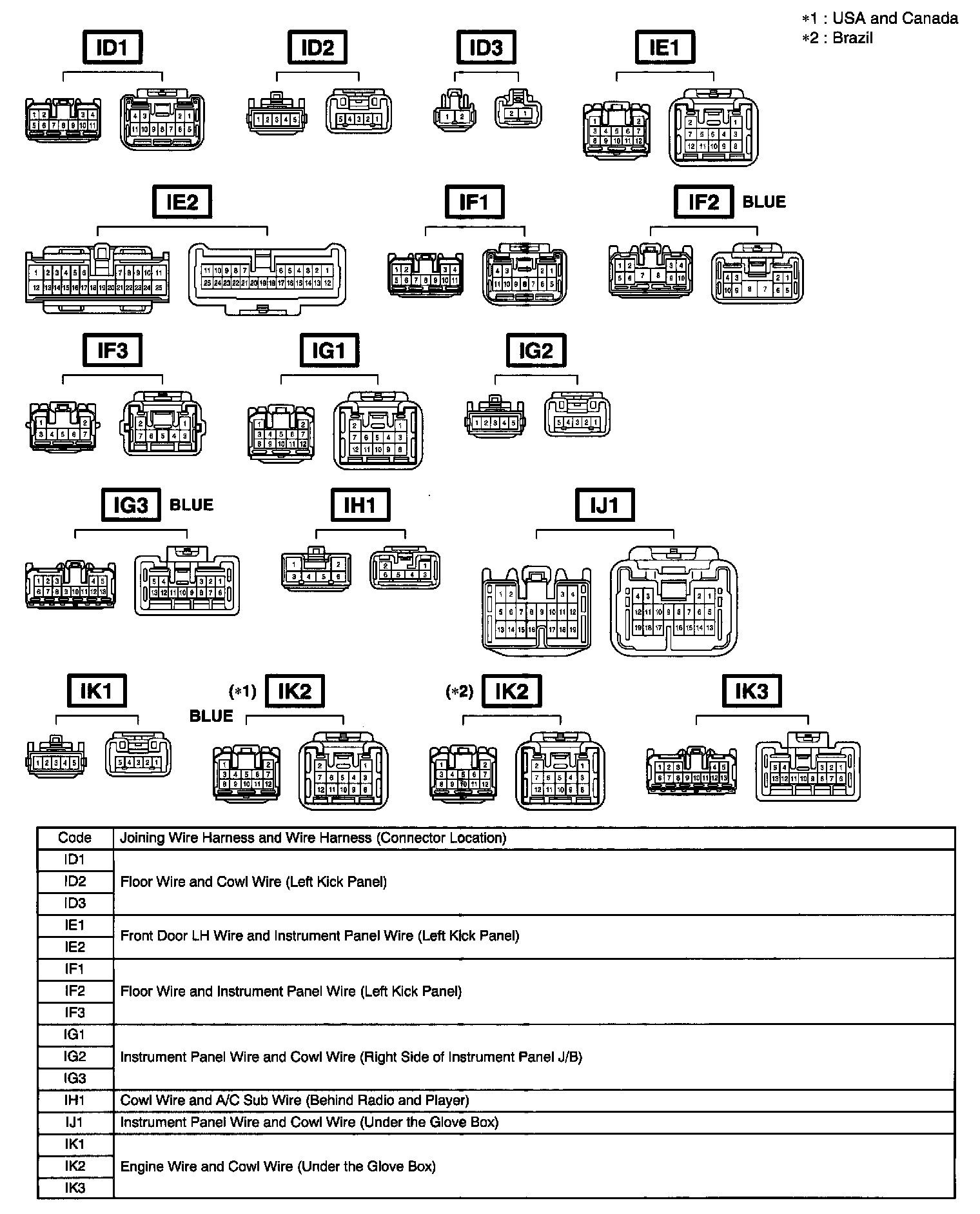

Wire Harness To Wire Harness Connectors (ID1 - IK3):

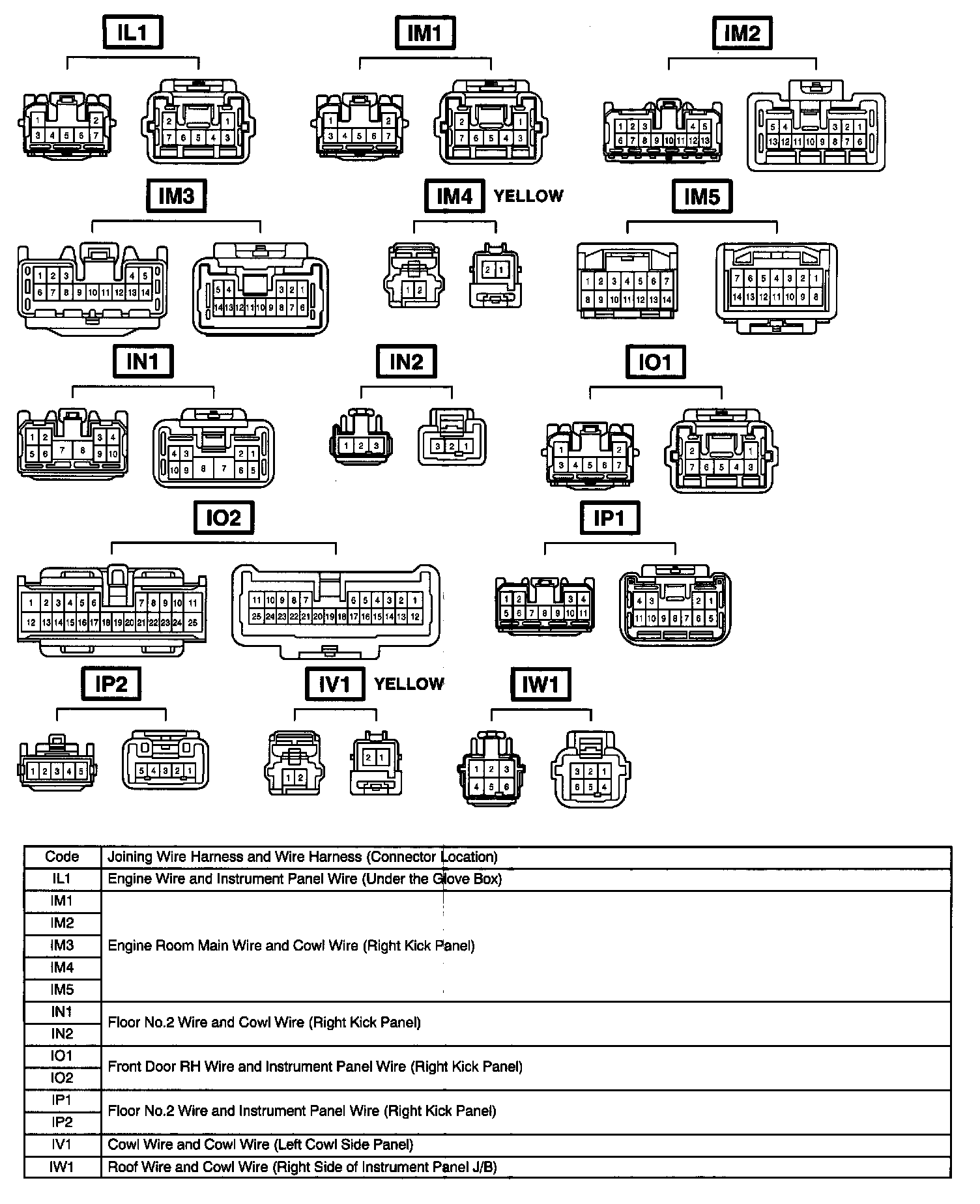

Wire Harness To Wire Harness Connectors (IL1 - IW1):
