ABS W/BA & VSC System

CIRCUIT DESCRIPTION

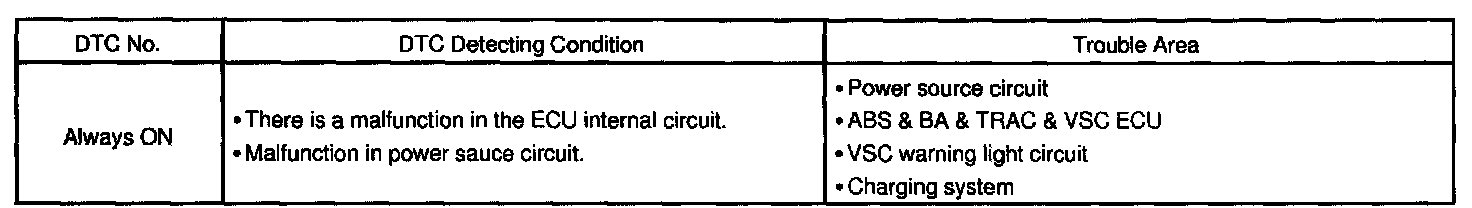

DTC Detecting Condition:

Fail safe function:
It a trouble has occurred in the ECU, the ECU prohibits the ABS & BA & TRAC & VSC controls and the brake system becomes normal.

HINT: If the fail safe function is activated in VSC system, "VSC OFF" indicator light lights up.

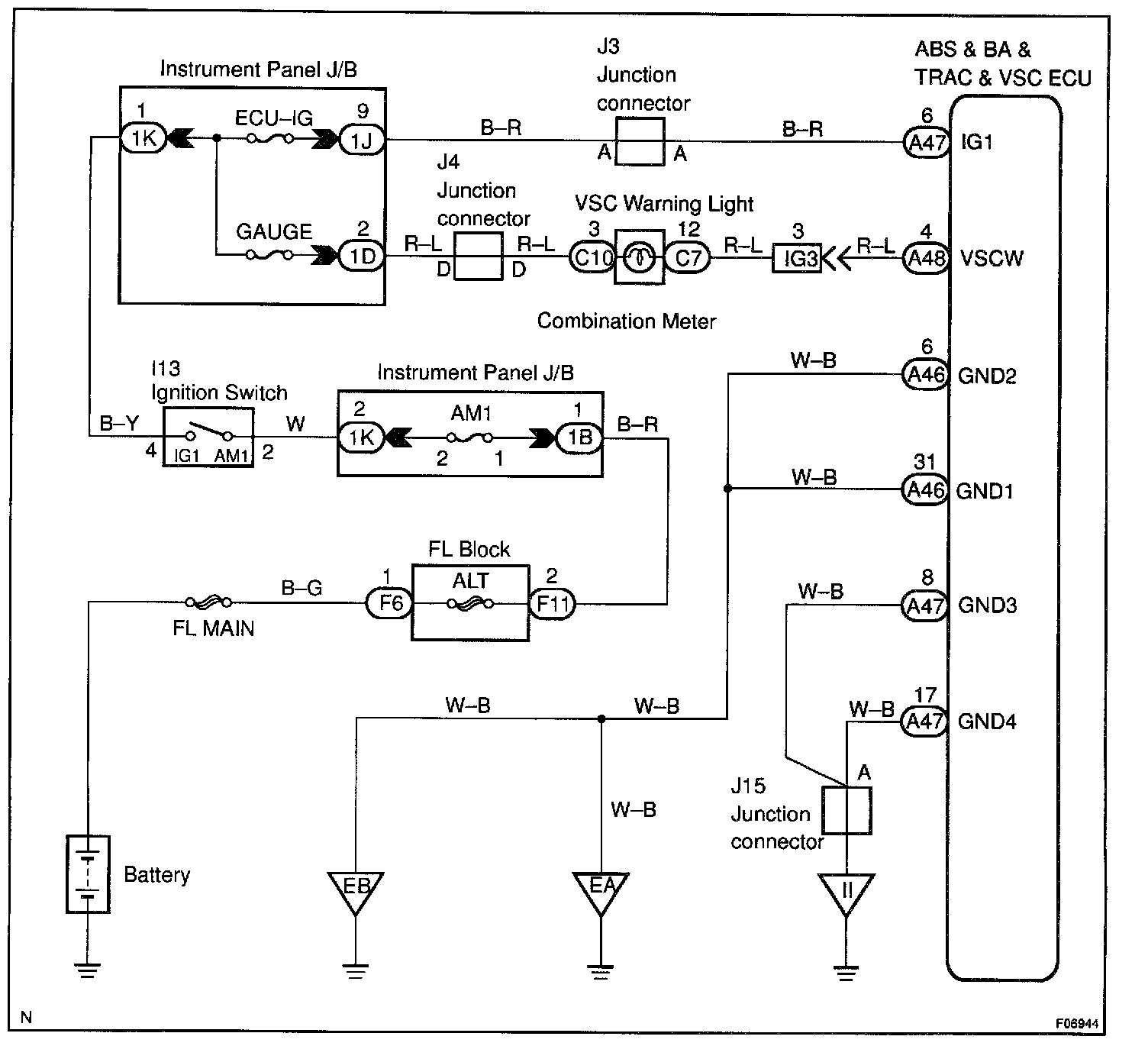

Wiring Diagram:

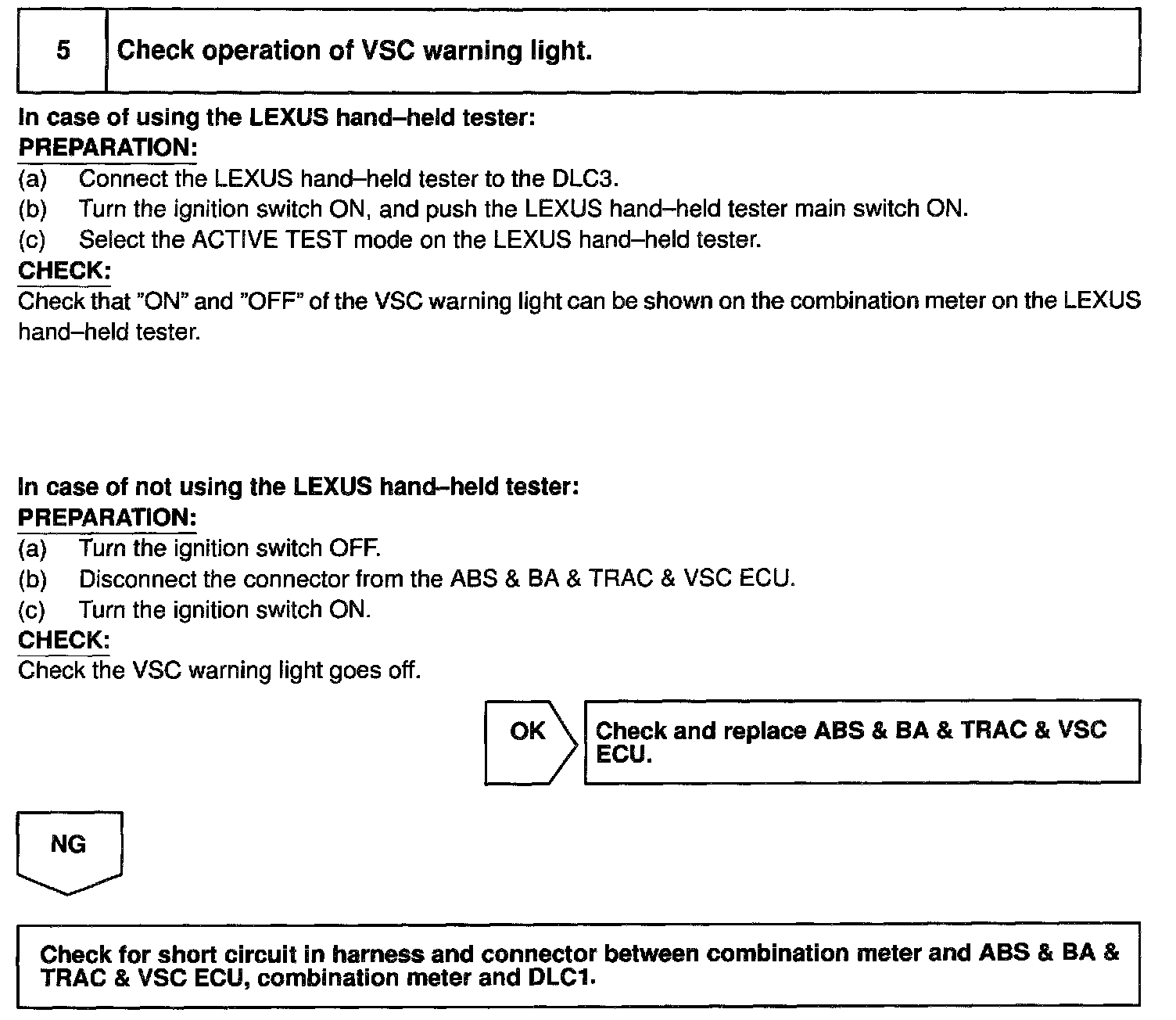

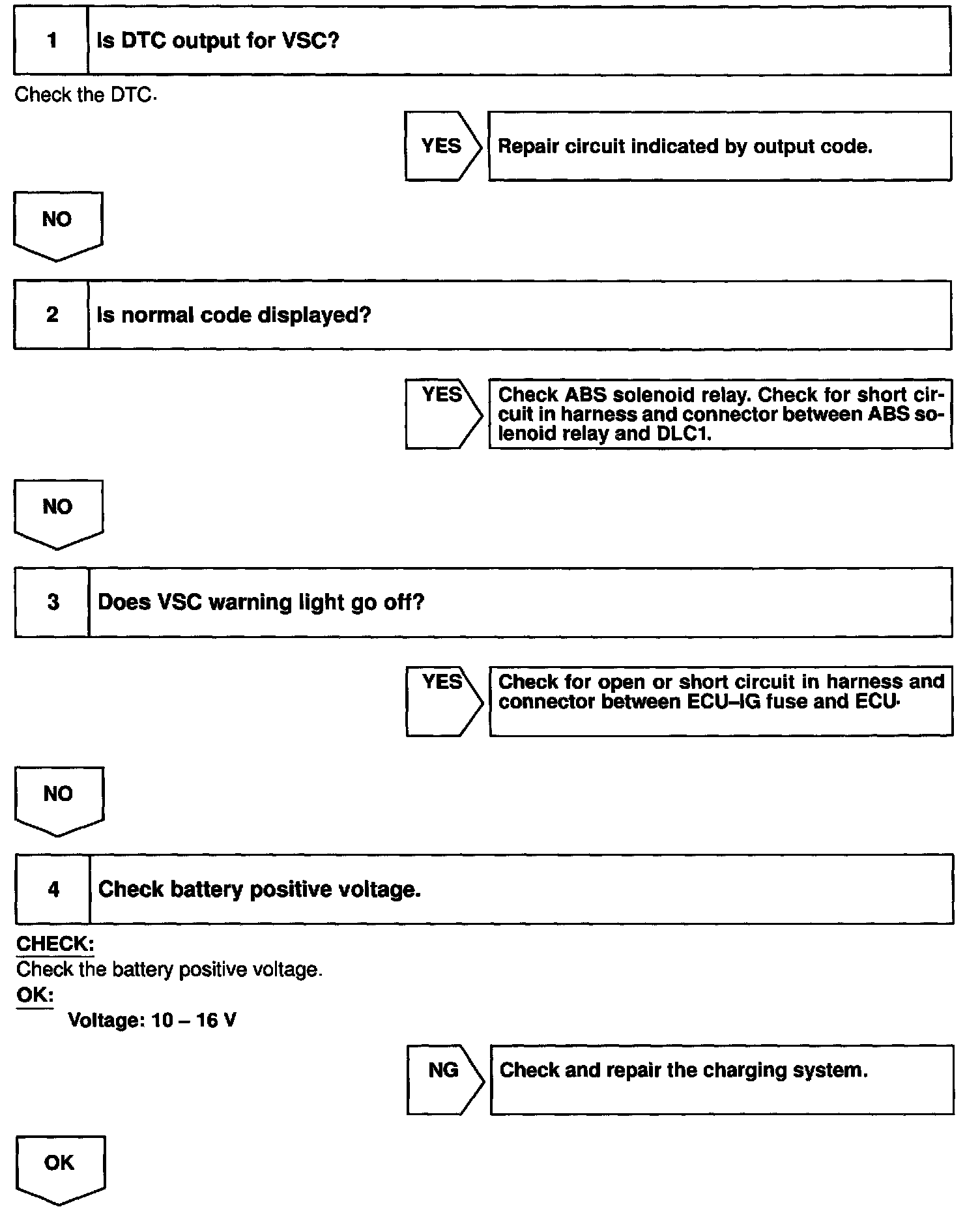

Steps 1 - 4:

Step 5:

INSPECTION PROCEDURE
