ABS W/Traction Control (TRAC)
ABS W/Traction Control (TRAC)

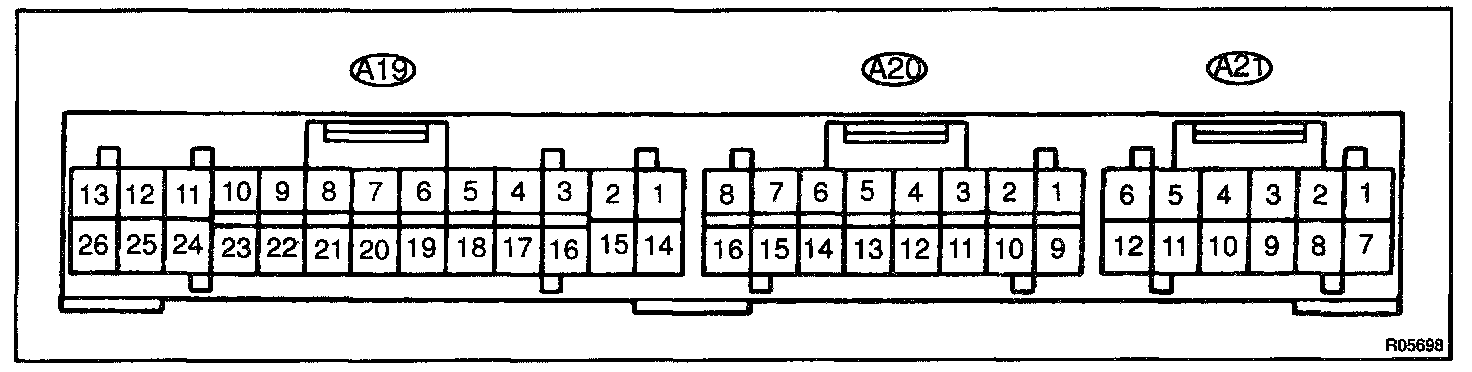

Terminals Of ECU - Connector View:

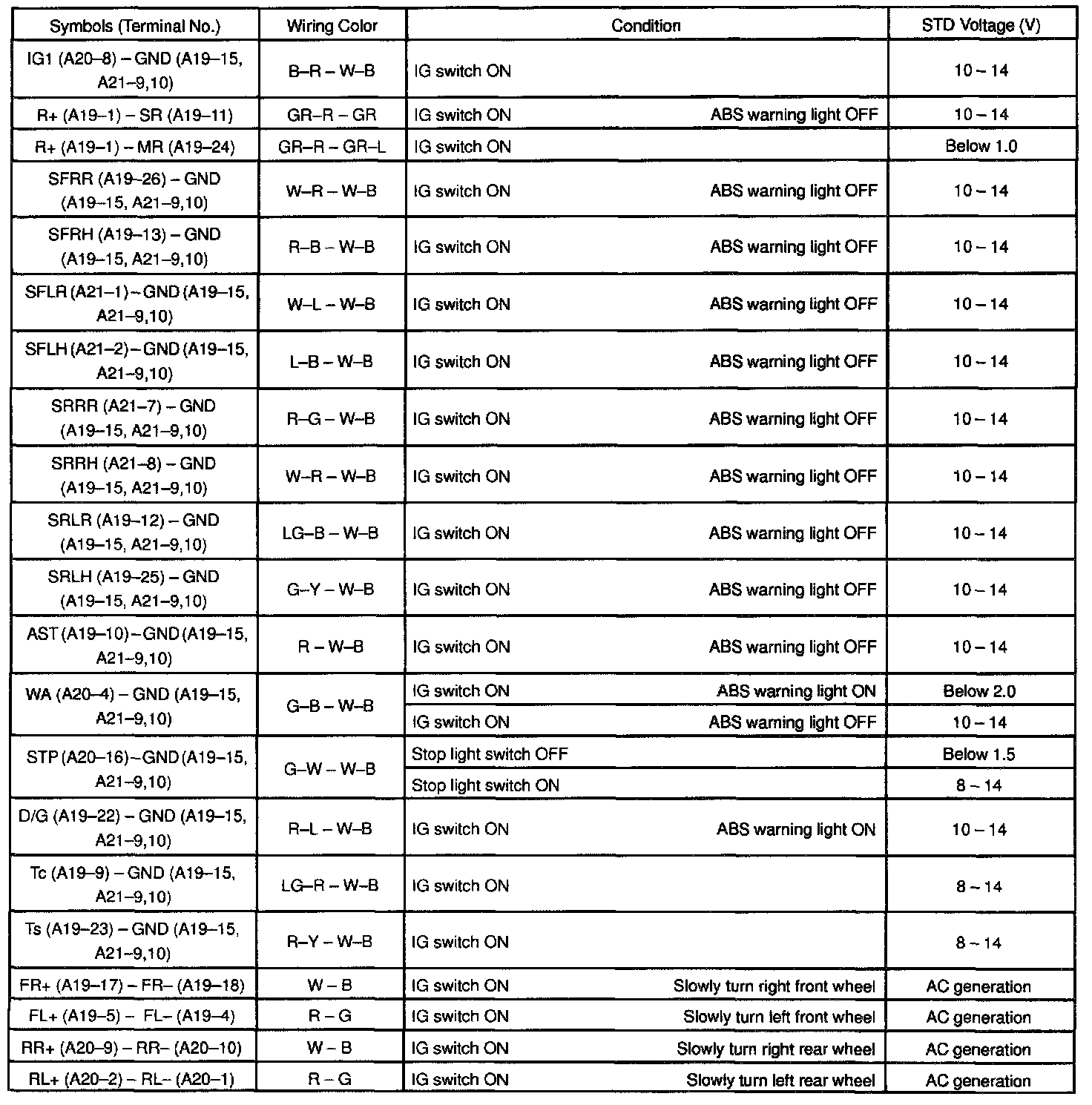

Terminals Of ECU - Pinouts (Part 1):

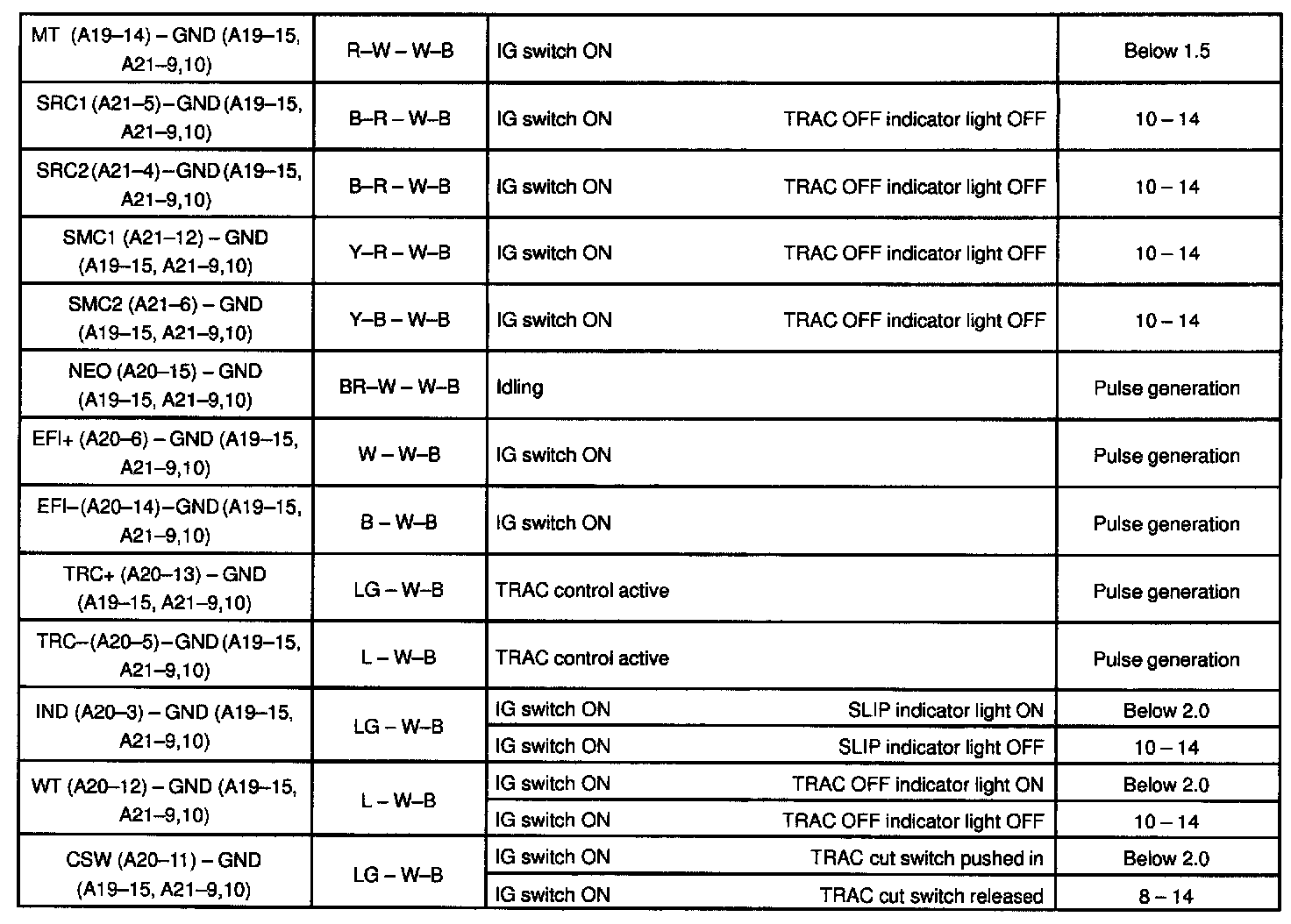

Terminals Of ECU - Pinouts (Part 2):
