Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting terminals Tc and E1 of the DLC1 or Tc and CC of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

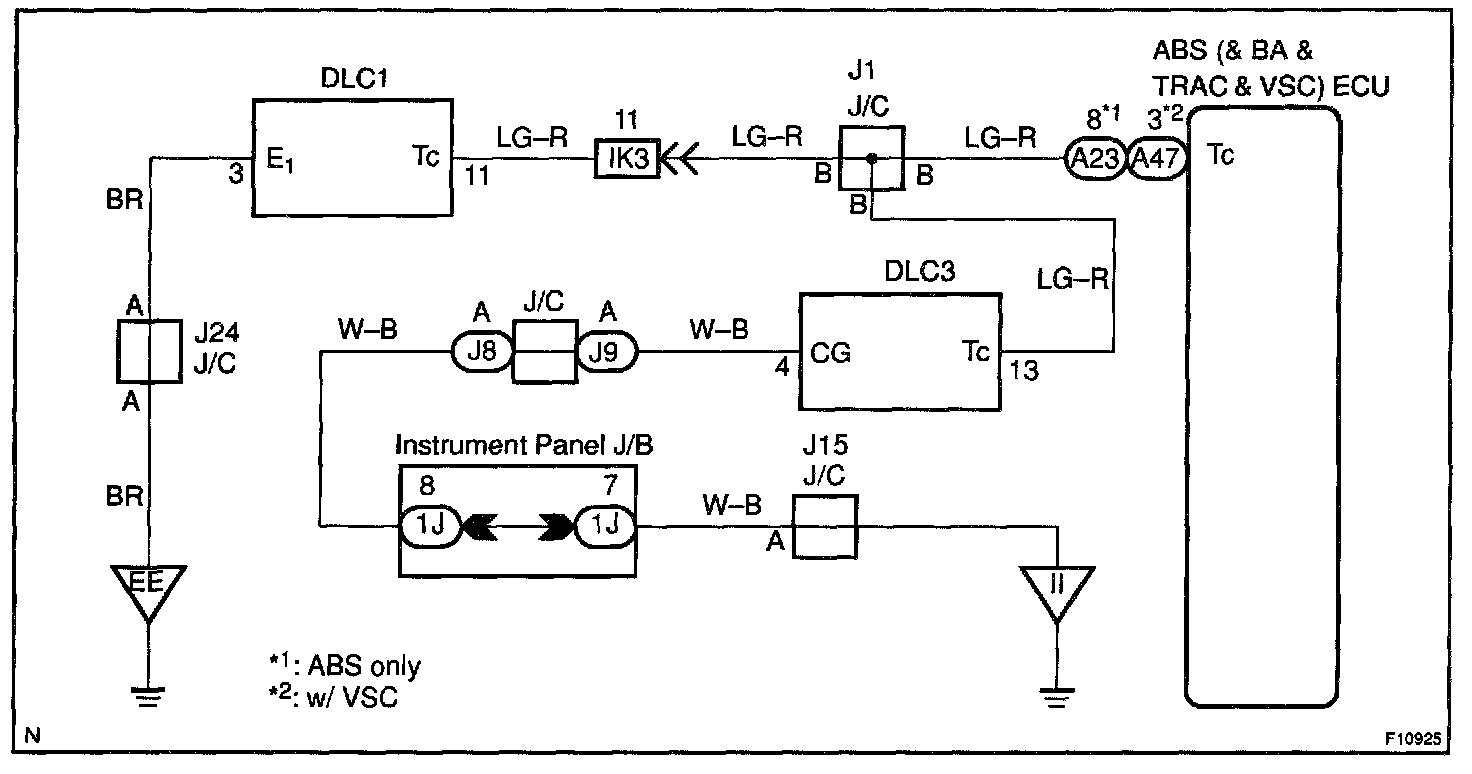

Wiring Diagram:
Steps 1 - 2:
INSPECTION PROCEDURE
Connecting terminals Tc and E1 of the DLC1 or Tc and CC of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.
INSPECTION PROCEDURE
