ABS Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU detects a trouble, it lights the ABS warning light, and prohibits the ABS control simultaneously.

At this time, the ECU records a DTC in memory.

After removing the short pin of the DLC1, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

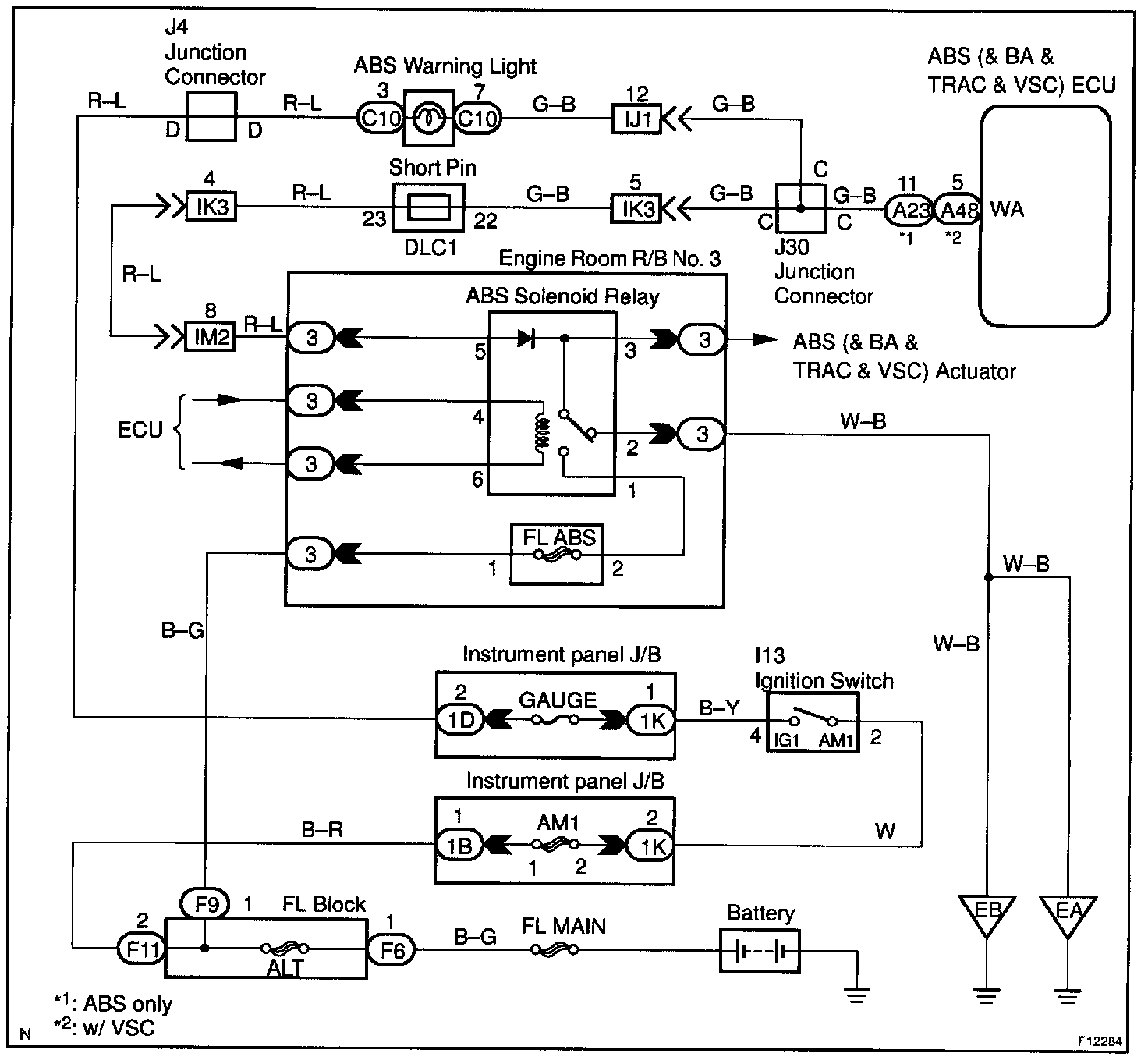

Wiring Diagram:

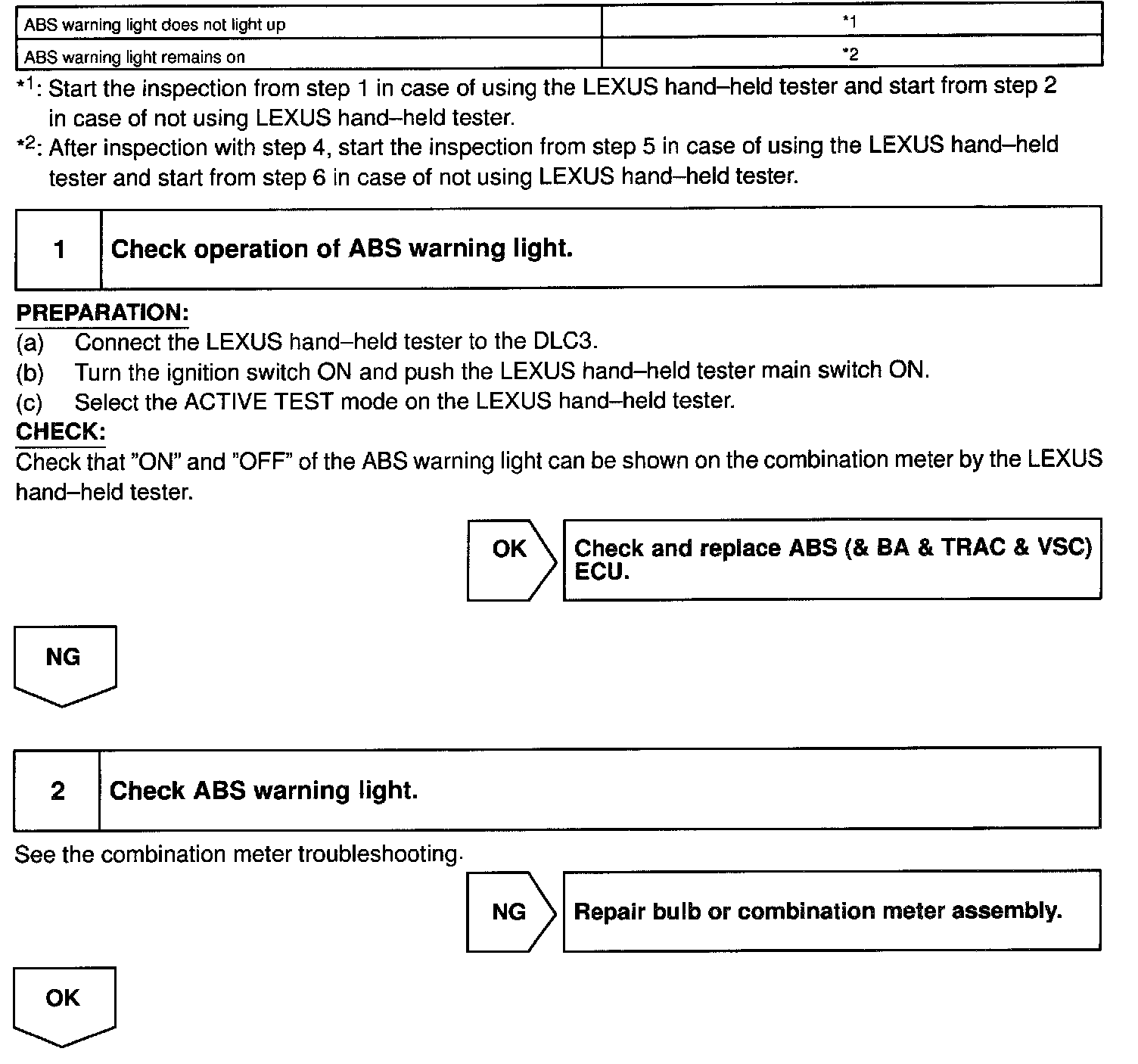

Steps 1 - 2:

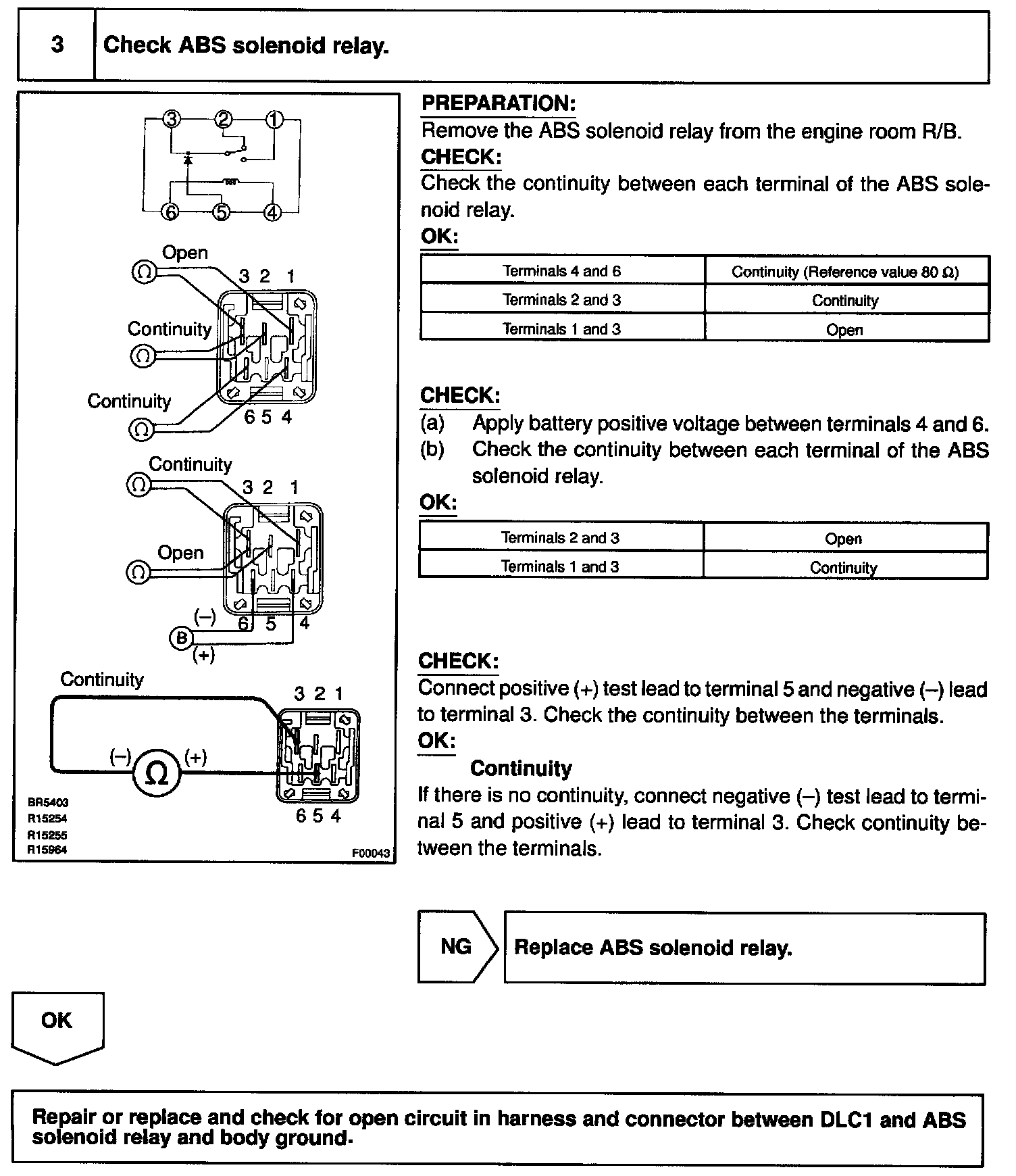

Step 3:

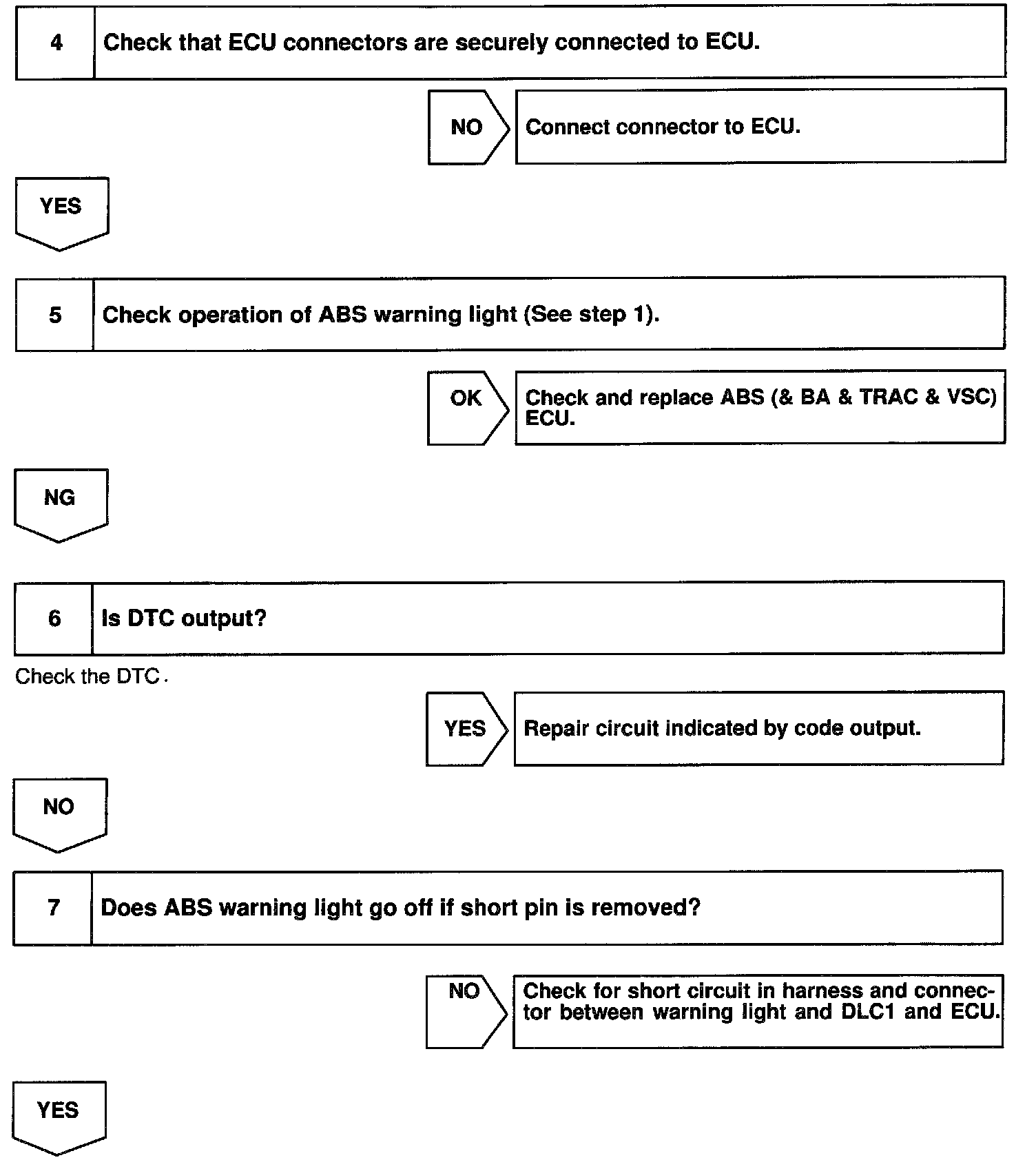

Steps 4 - 7:

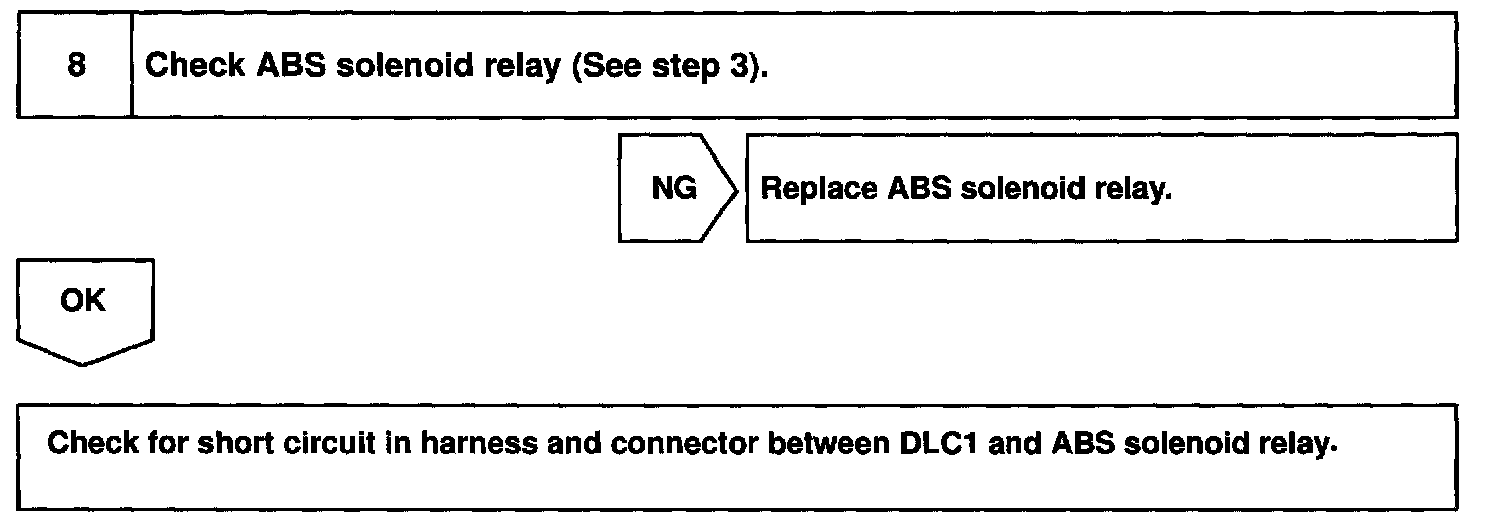

Step 8:

INSPECTION PROCEDURE

HINT: Troubleshooting in accordance with the chart below for each trouble symptom.
