ABS Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU has detected a trouble, it lights the ABS warning light and prohibits the ABS control at the same time. At this time, the ECU records a DTC in the memory.

Connect terminals Tc and E1 of the DLC1, or terminals To and CG of the DLC3 to make the ABS warning light blink and output the DTC.

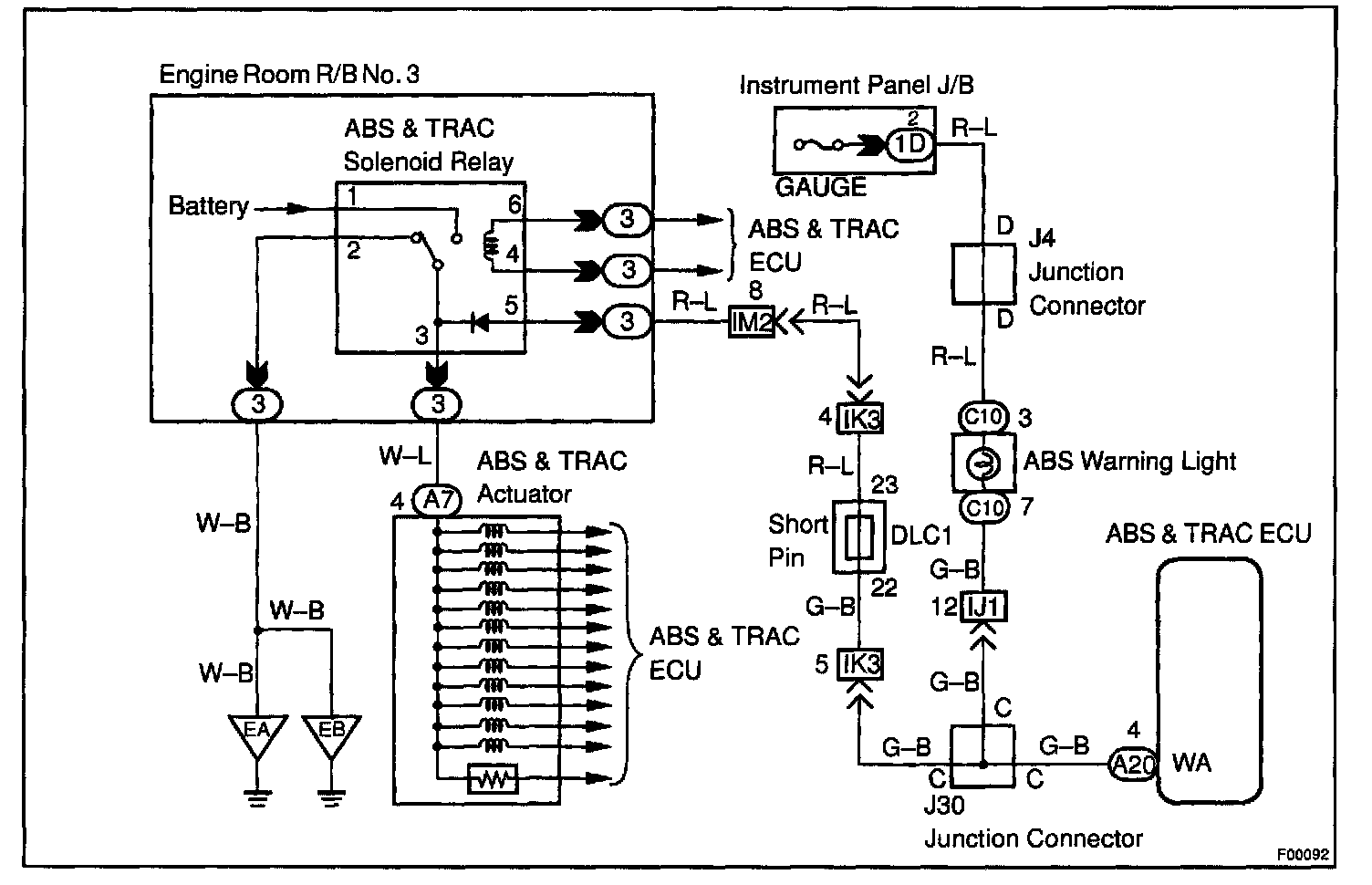

Wiring Diagram:

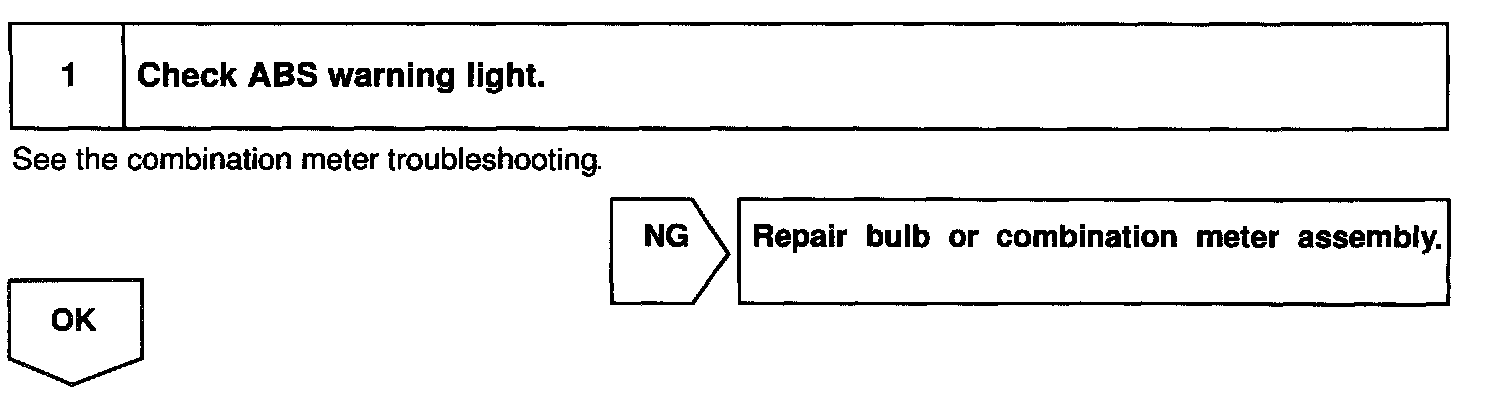

Step 1:

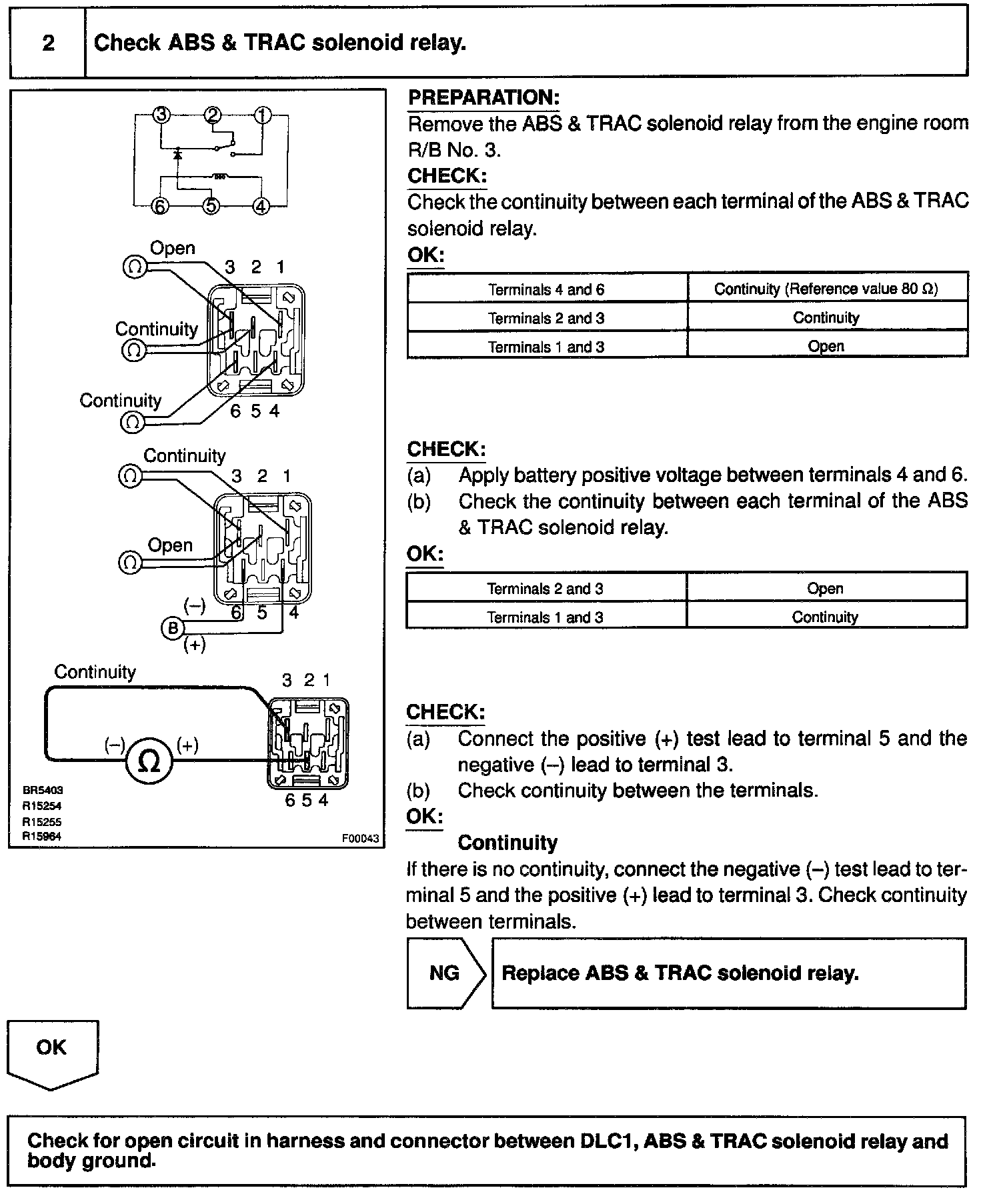

Step 2:

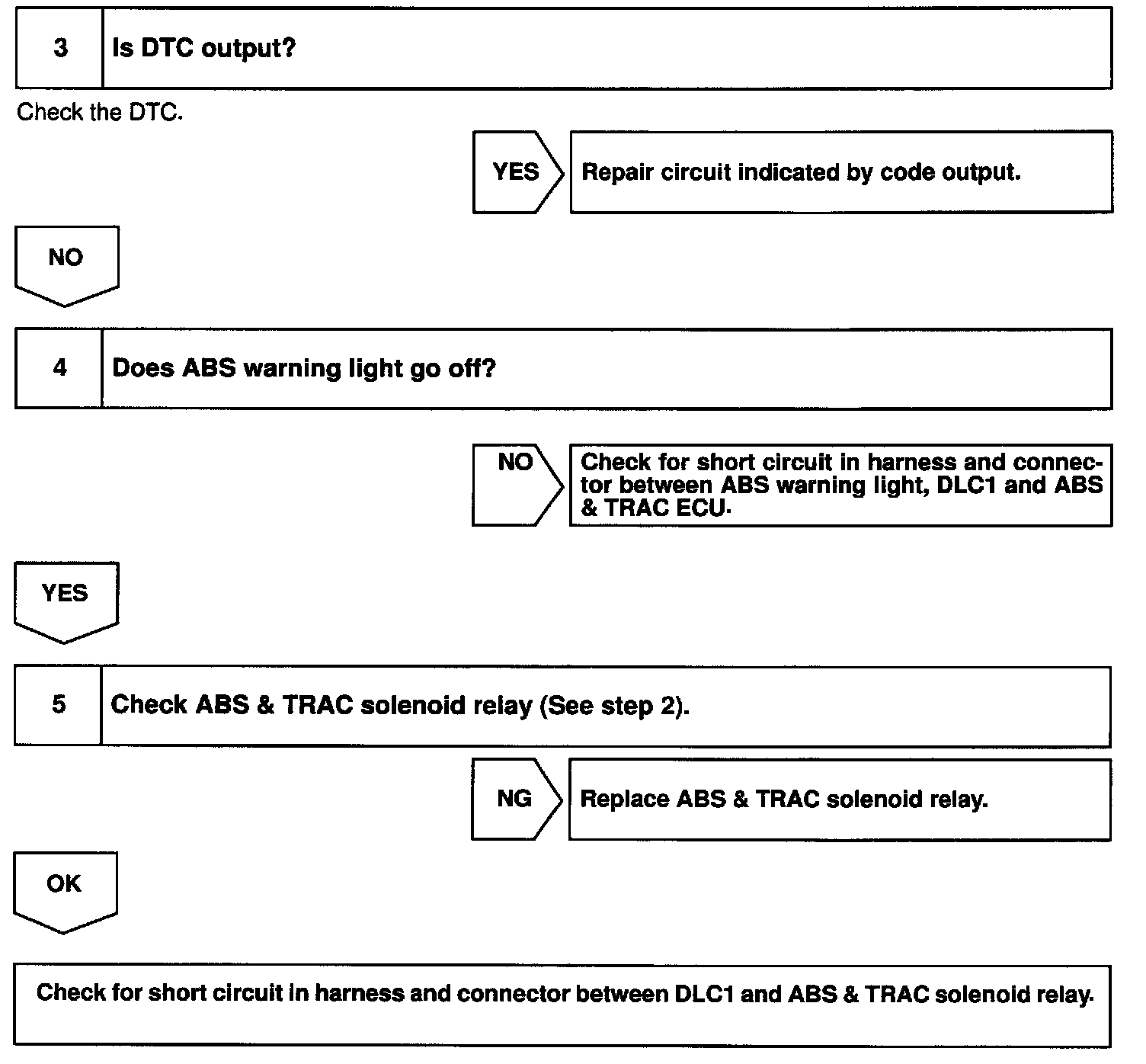

Steps 3 - 5:

INSPECTION PROCEDURE

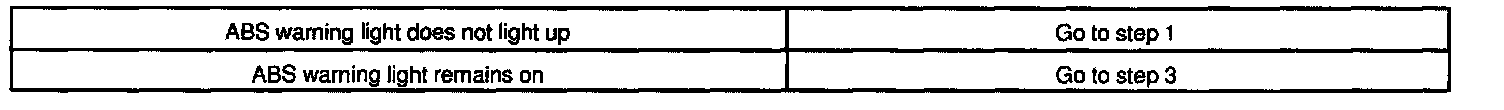

Troubleshoot in accordance with the chart below for each trouble symptom.
