SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

Wiring Diagram:

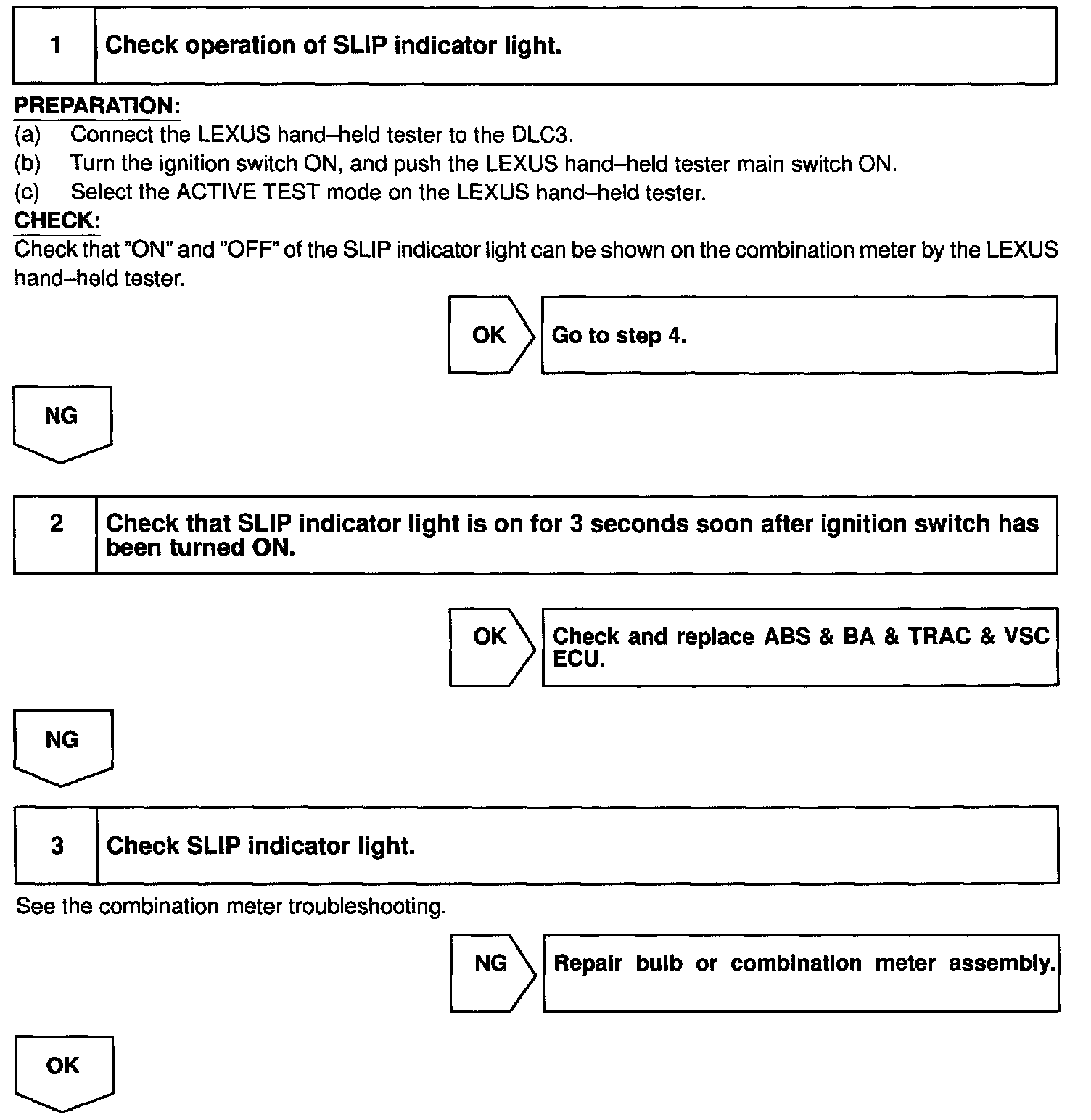

Steps 1 - 3:

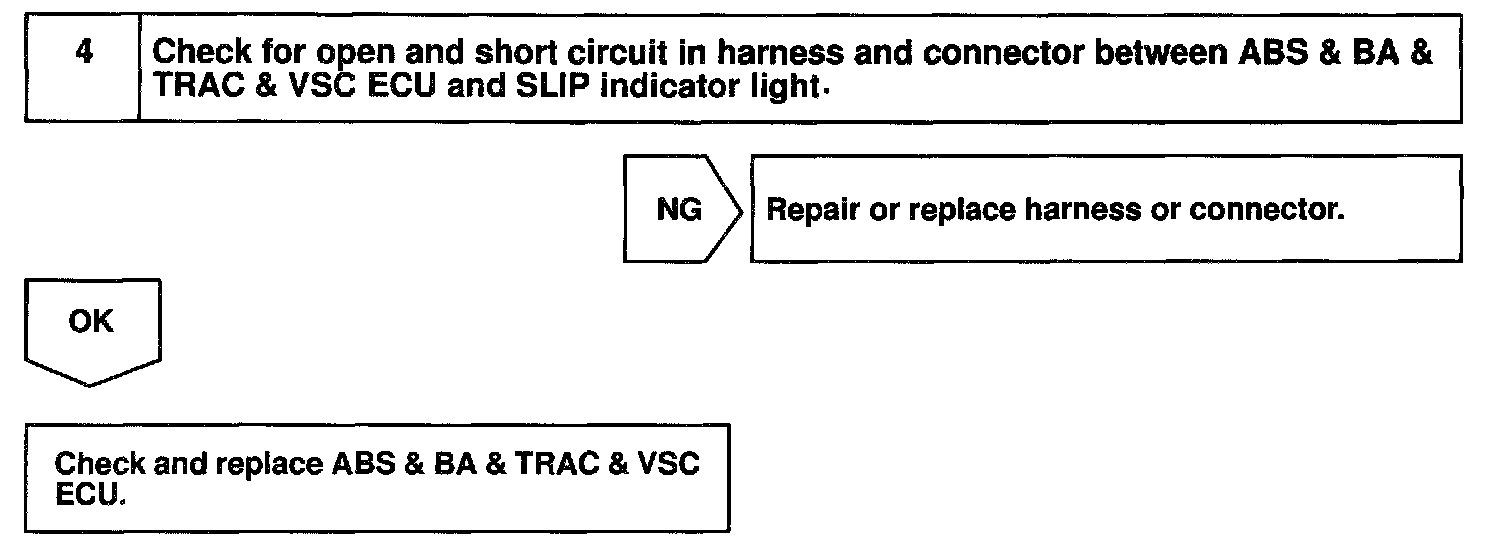

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
