Component Locations

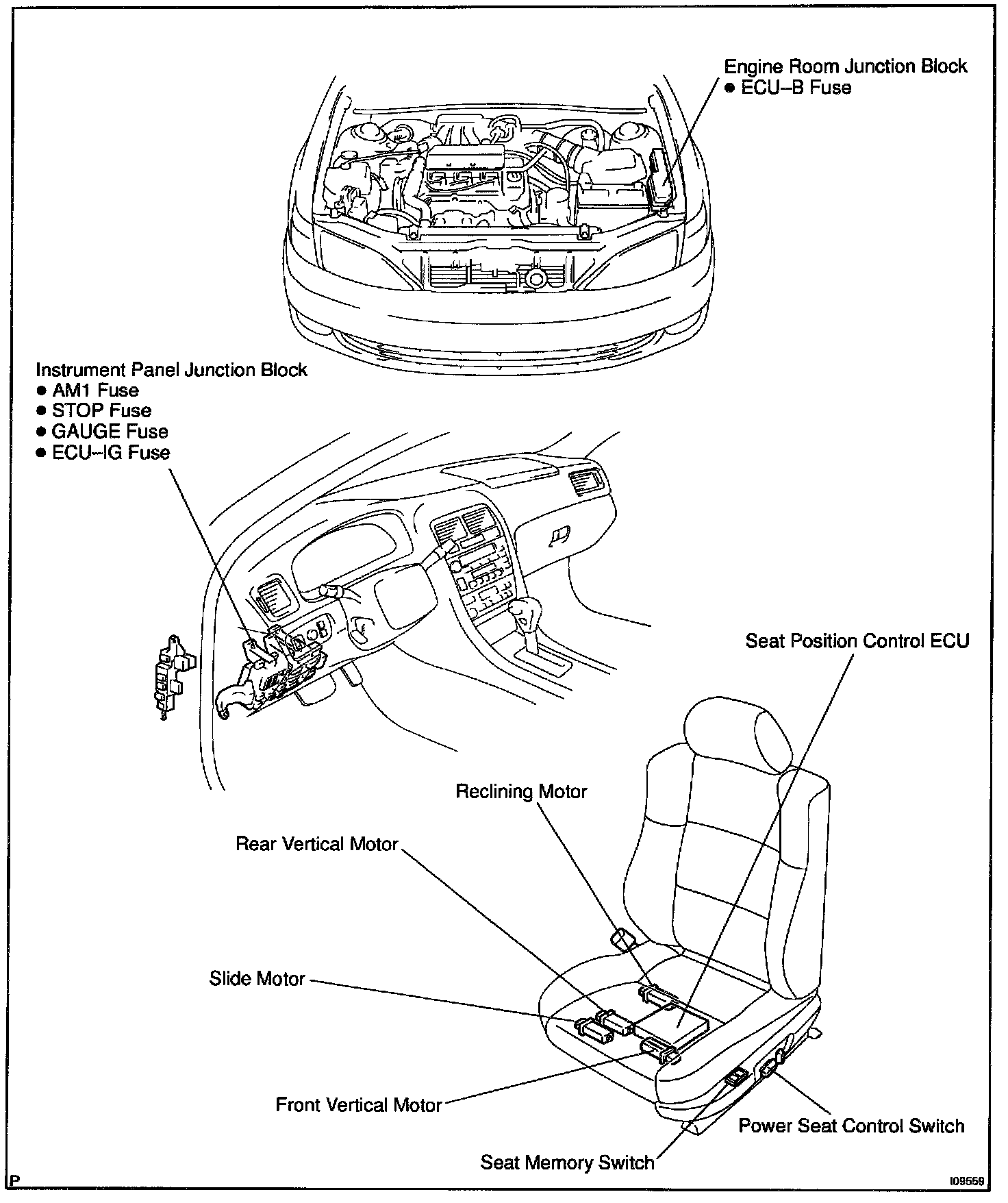

Power Seat Control System:



Seat:



Front Seat:



Rear Seat:

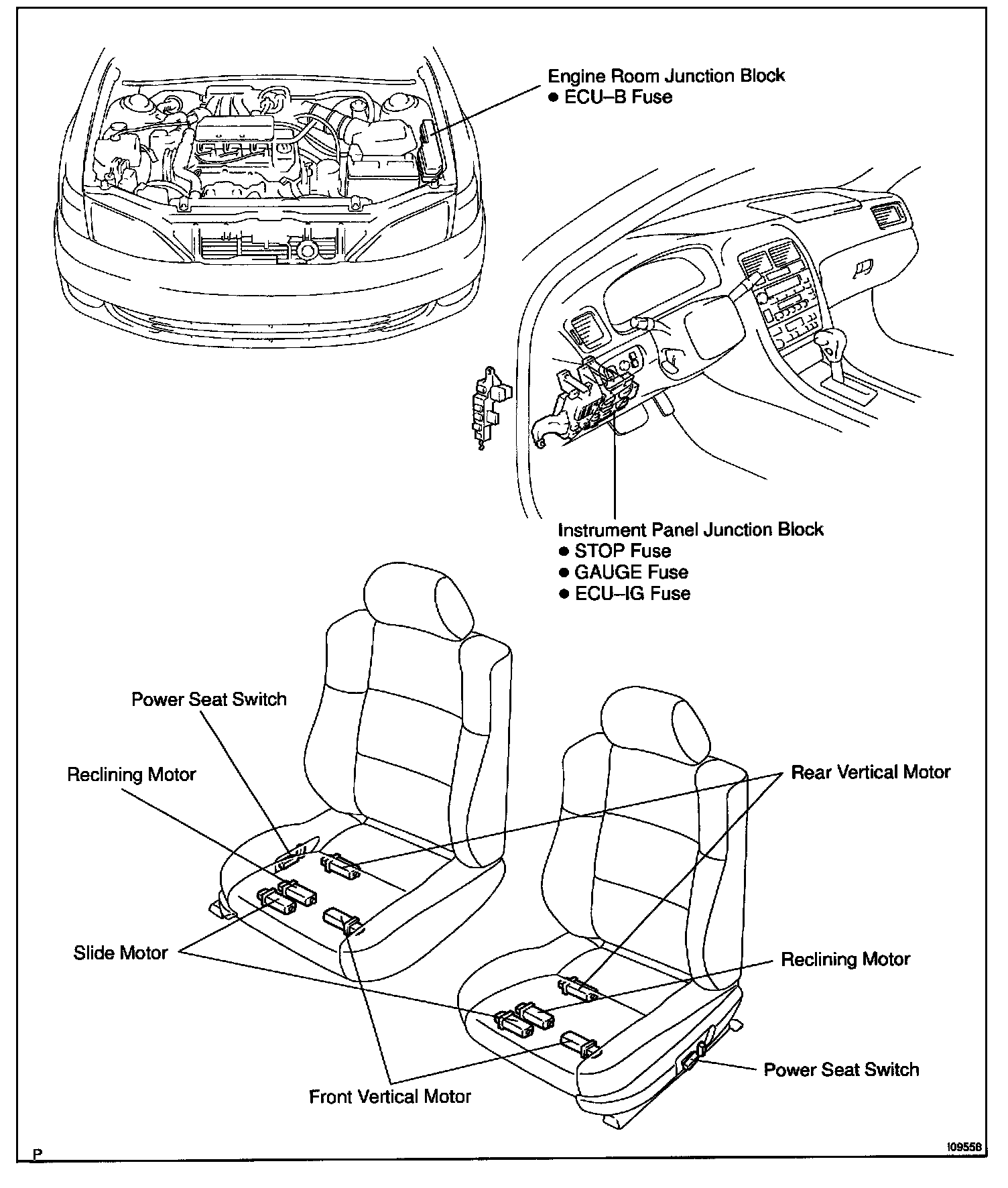

Power Seat Control System:
