Symptom Related Diagnostic Procedures

Sliding Roof System - Troubleshooting:

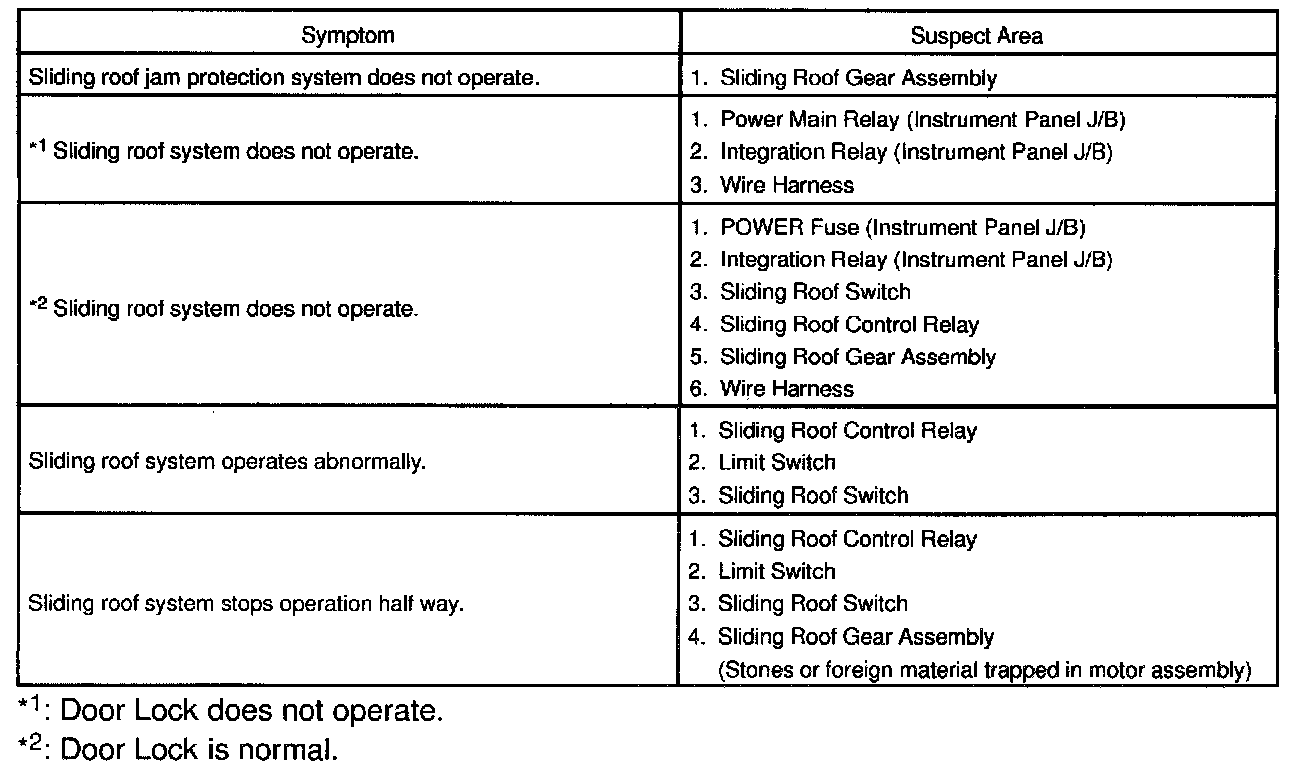

Problem Symptoms Table - Sliding Roof System:

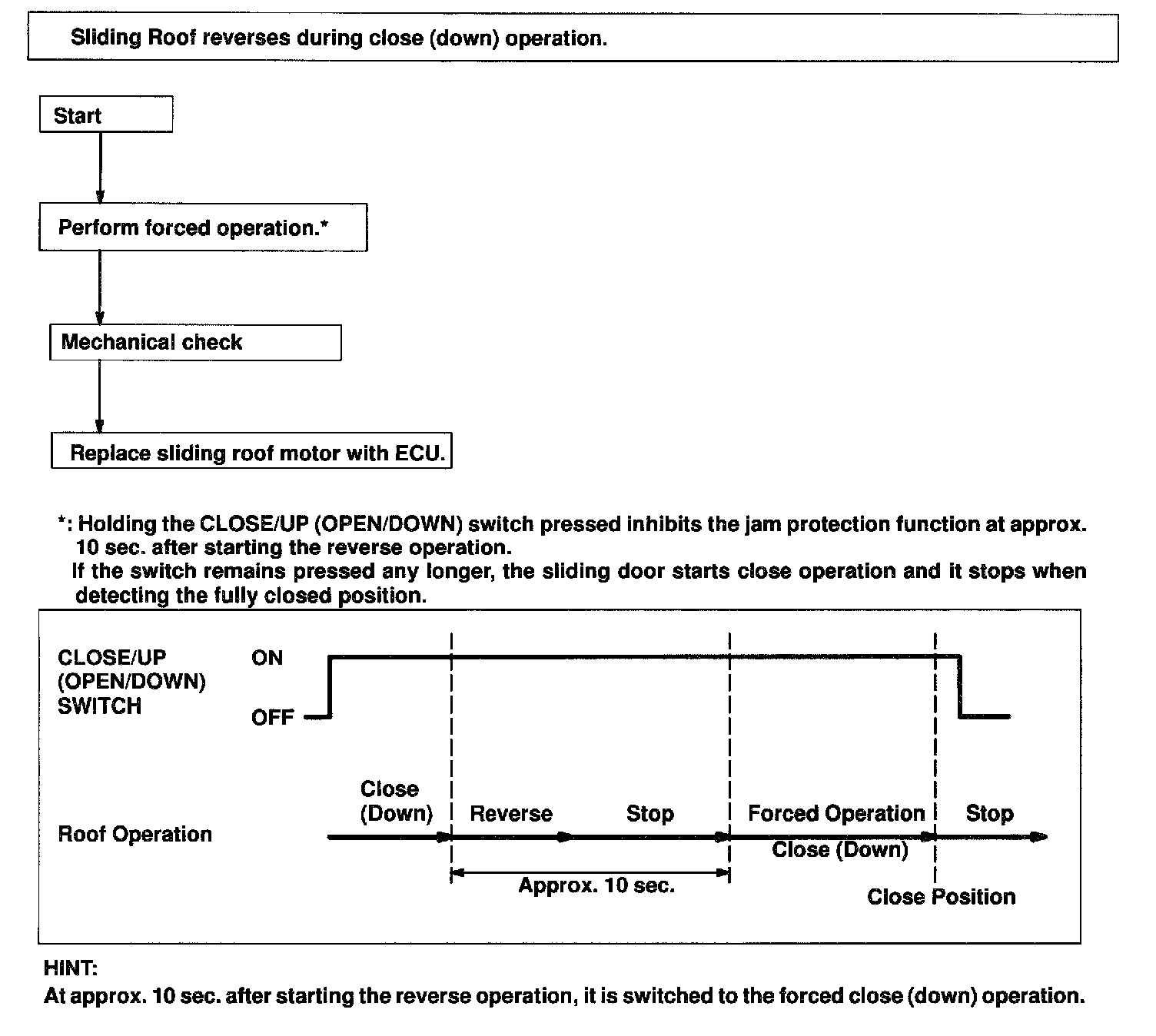

HINT: At approx. 10 sec. after starting the reverse operation, it is switched to the forced close (down) operation.
