Power Mirror Control System
Power Mirror Control System

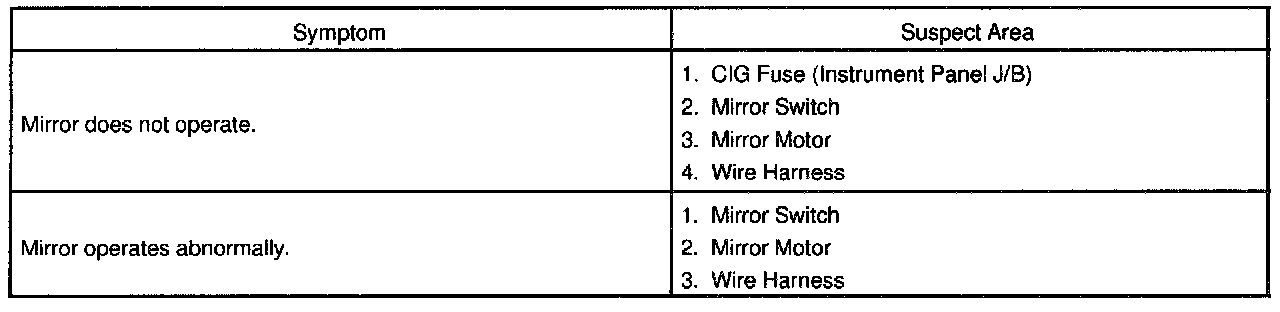

Problem Symptoms Table - Power Mirror Control System (w/o Driving Position Memory):

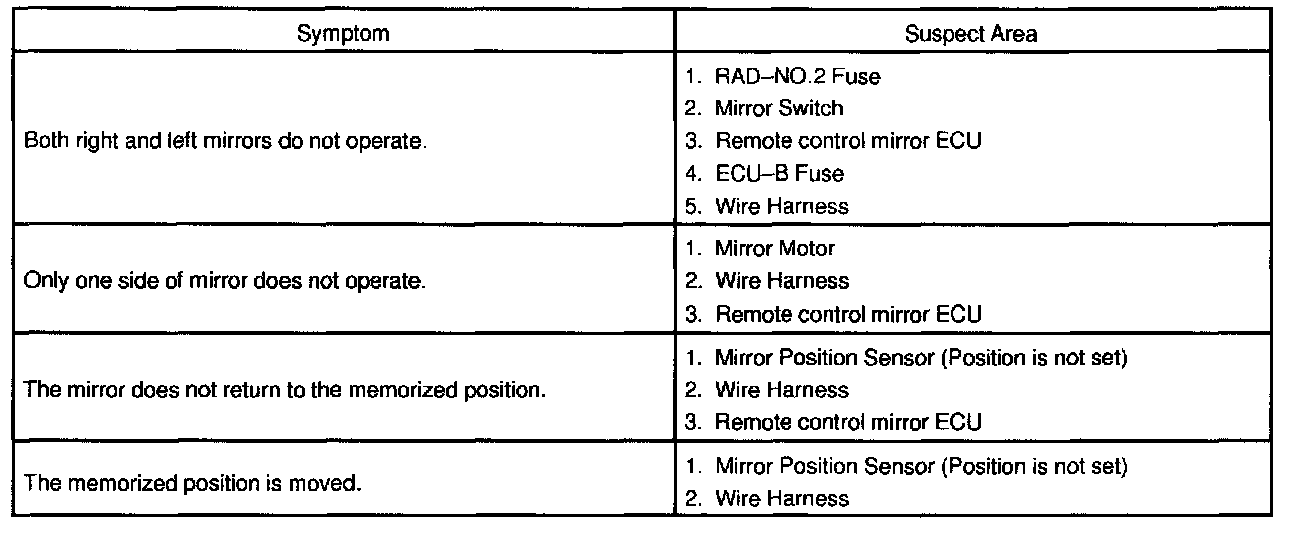

Problem Symptoms Table - Power Mirror Control System (w/ Driving Position Memory):
