OUTSIDE REAR VIEW MIRROR

REPLACEMENT




1. IF NECESSARY, DISCONNECT MIRROR

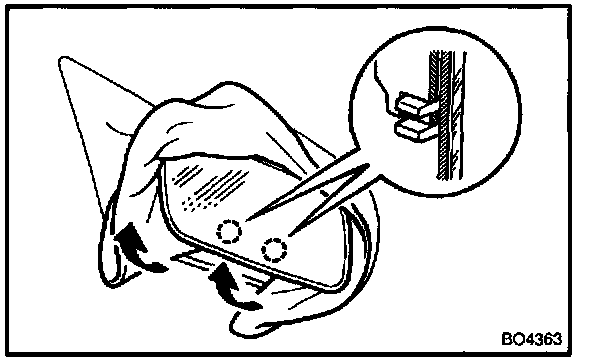

a. Insert a shop rag between the mirror and mirror body to wrap up the mirror in the shop rag.
b. Pull up the lower side of the shop rag to disconnect the mirror joint.

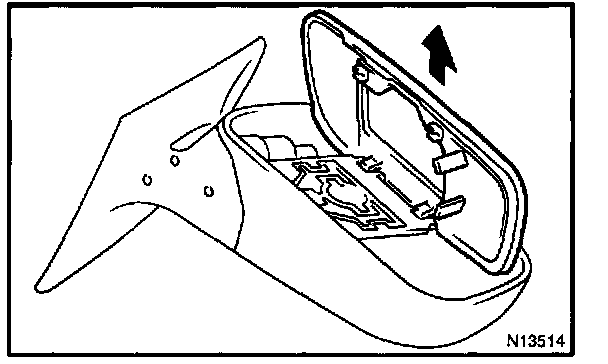

c. Pull up the mirror and disconnect it.

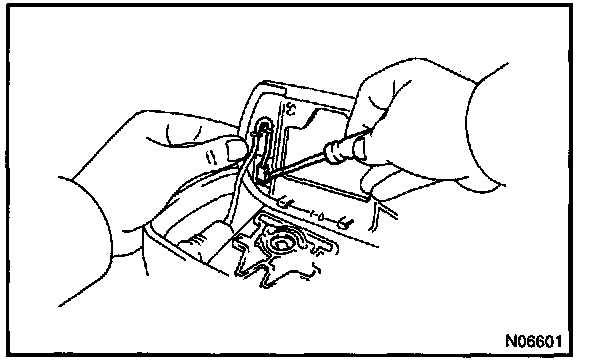

d. Disconnect the connector.




2. CONNECT MIRROR

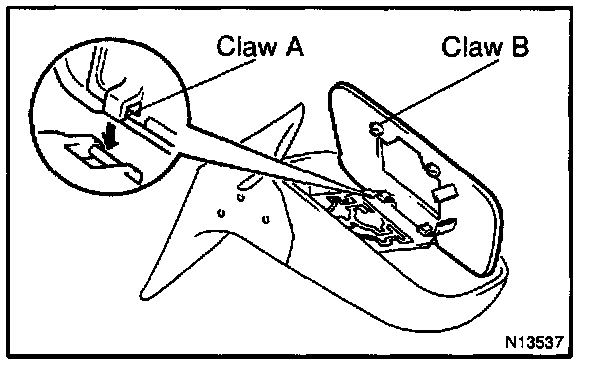

a. Engage the claws (A) and set the mirror to the mirror body.
b. Push the mirror to engage the claws (B) and connect it.
