Upper Side Moulding / Trim: Service and Repair

ROOF DRIP SIDE FINISH MOULDING

Roof Drip Side Finish Moulding:

REMOVAL




1. REMOVE ROOF DRIP SIDE FINISH MOULDING

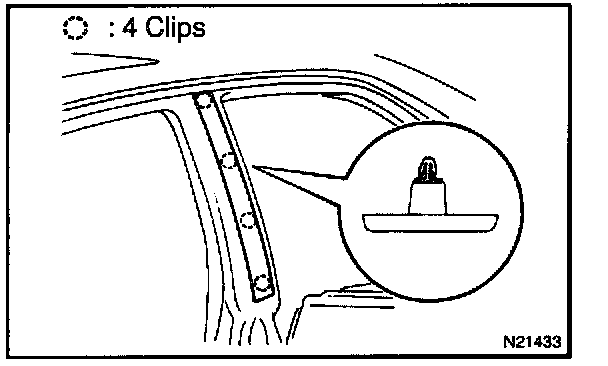

Using a screwdriver, remove the moulding as shown in the illustration.

HINT: Tape the screwdriver tip before use.

2. REMOVE ROOF SIDE RAIL WEATHERSTRIP

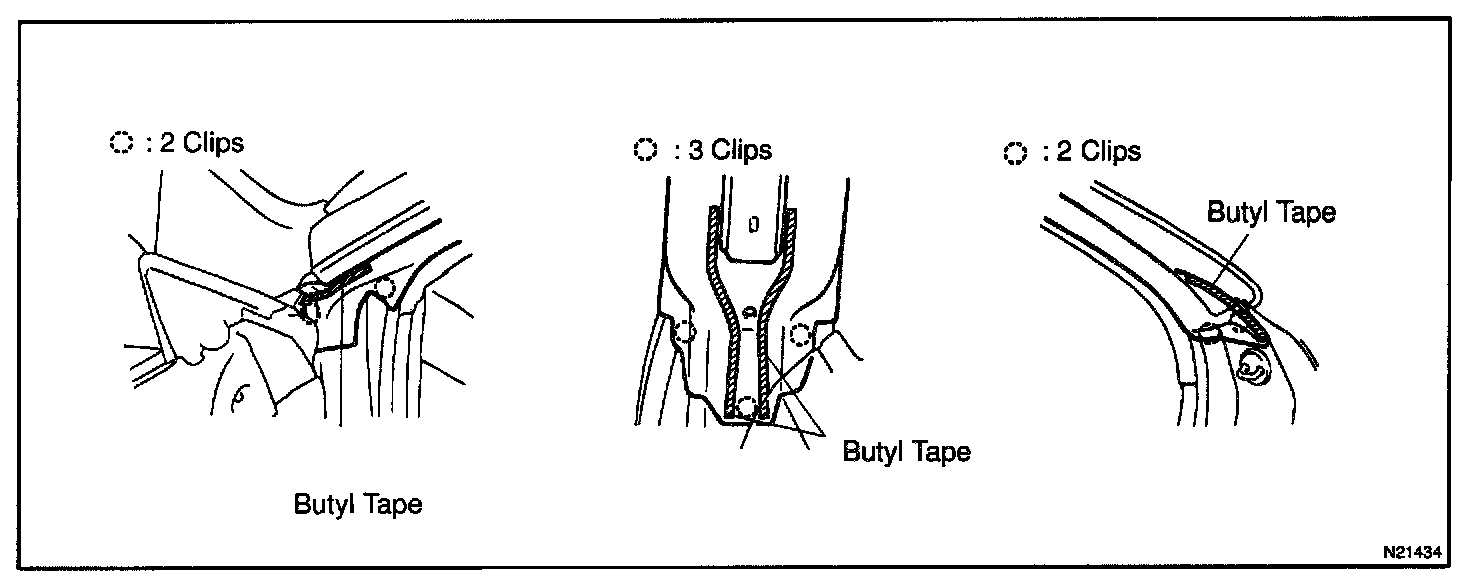

a. Using a clip remover, remove the 7 clips.




b. Pull off the weatherstrip.




3. REMOVE CENTER ROOF SIDE RAIL WEATHERSTRIP RETAINERS
Remove the 6 screws and retainers.




4. REMOVE FRONT ROOF SIDE WEATHERSTRIP RETAINERS
Remove the 9 screws and retainers.

INSTALLATION
Installation is in the reverse order of removal.
