Home >> Lexus >> 2001 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations >> Component Locations

Component Locations

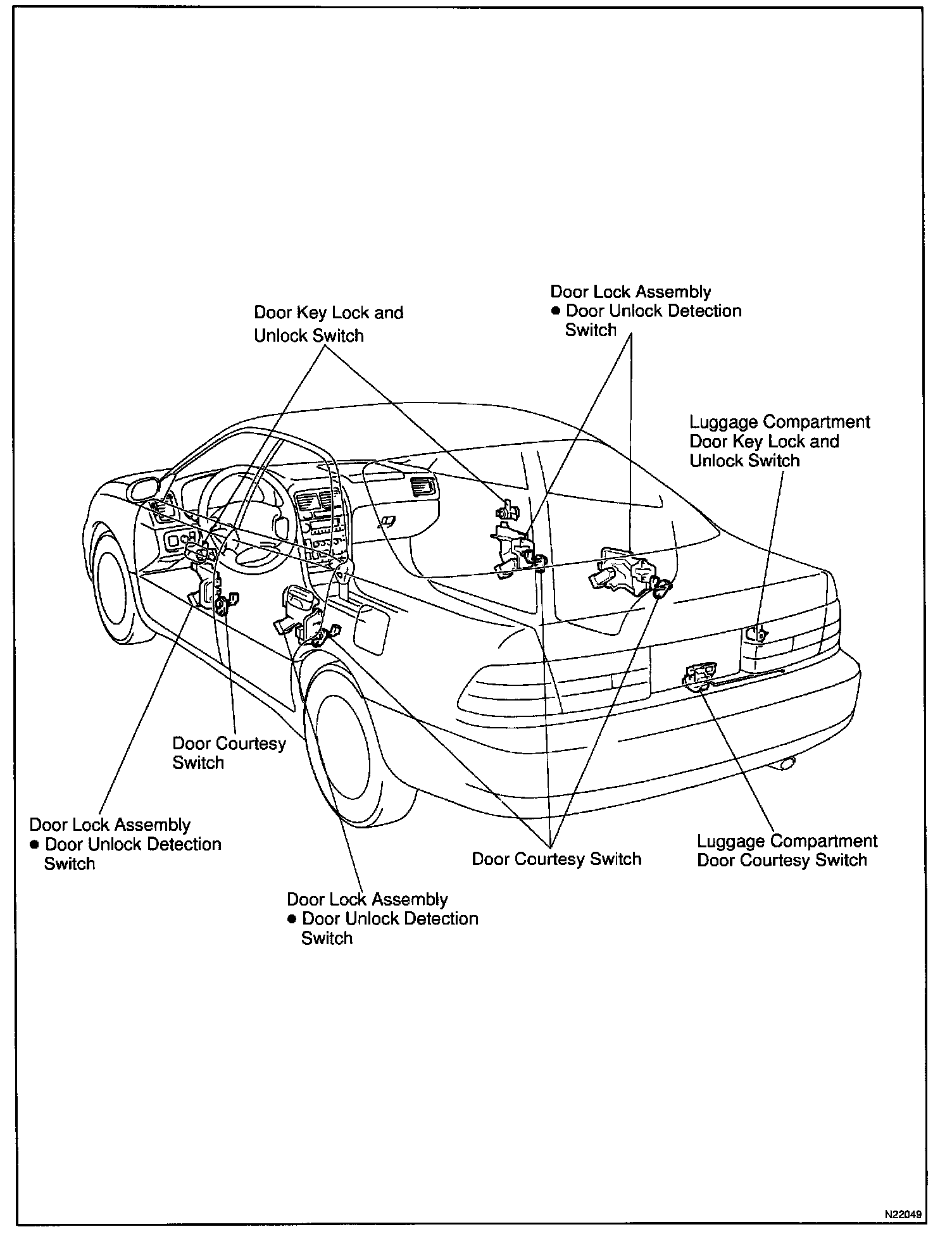

Theft Deterrent System (Part 1):

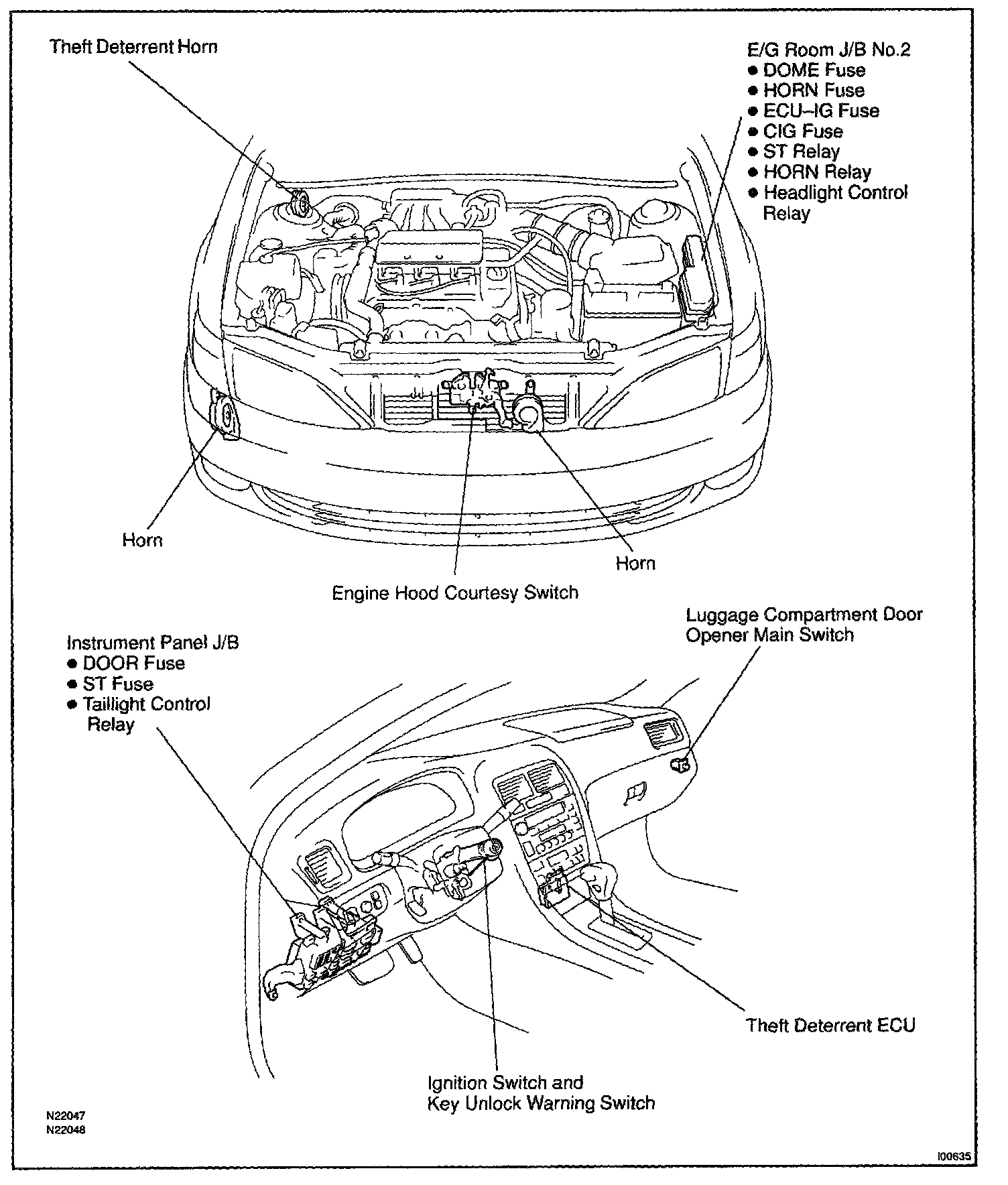

Theft Deterrent System (Part 2):

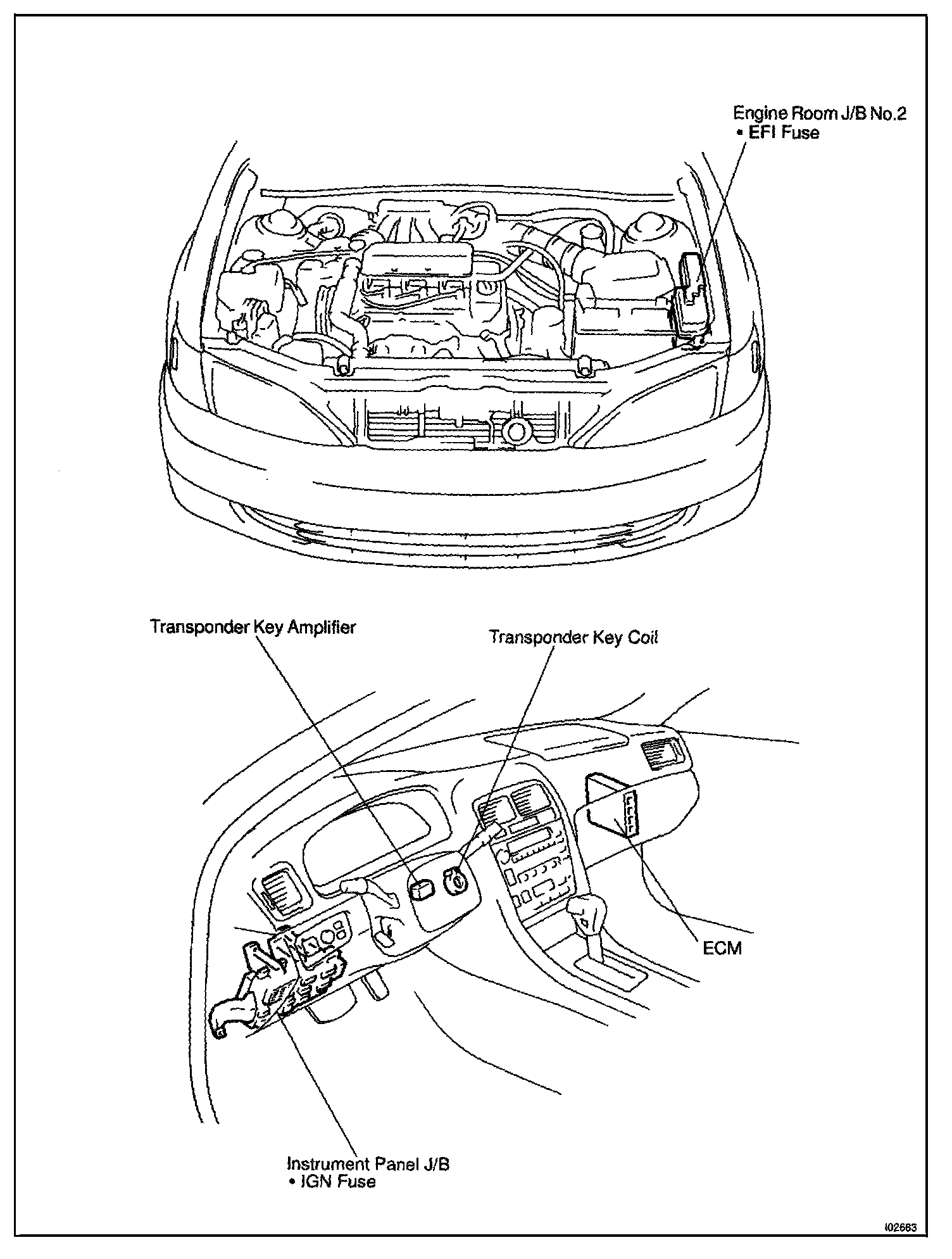

Engine Immobilizer System:

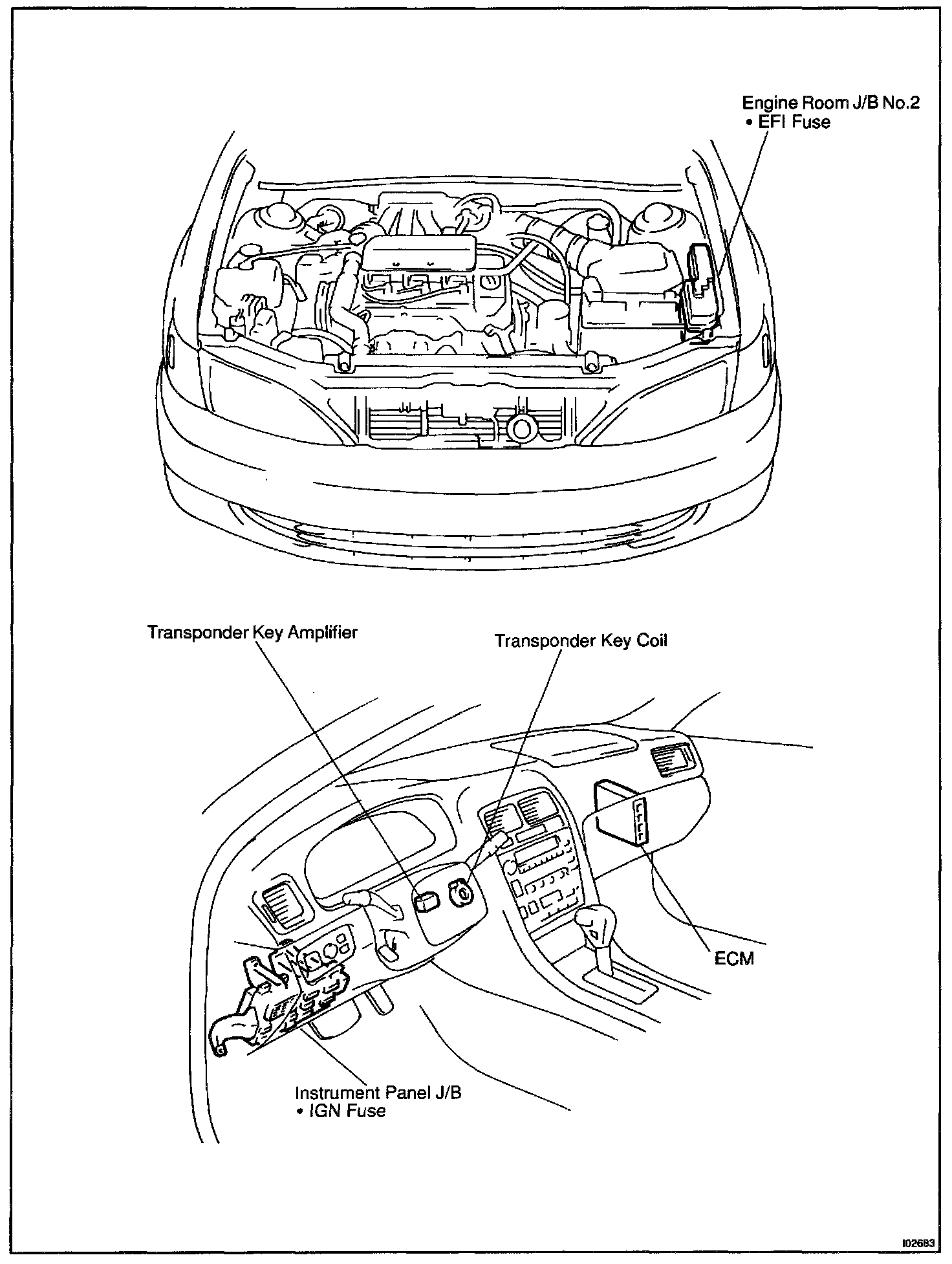

Engine Immobilizer System:
