P1725

DTC P1725 NT REVOLUTION SENSOR CIRCUIT MALFUNCTION


CIRCUIT DESCRIPTION

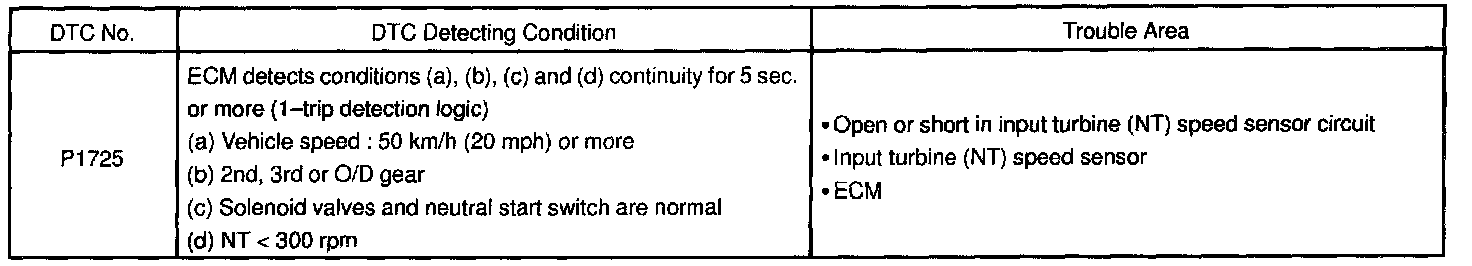

DTC Detecting Condition:

This sensor detects the rotation speed of the input turbine. By comparing the input turbine speed signal (NT) and the counter gear speed sensor signal (A/C), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure in response to various conditions, thus performing smooth gear shifting.

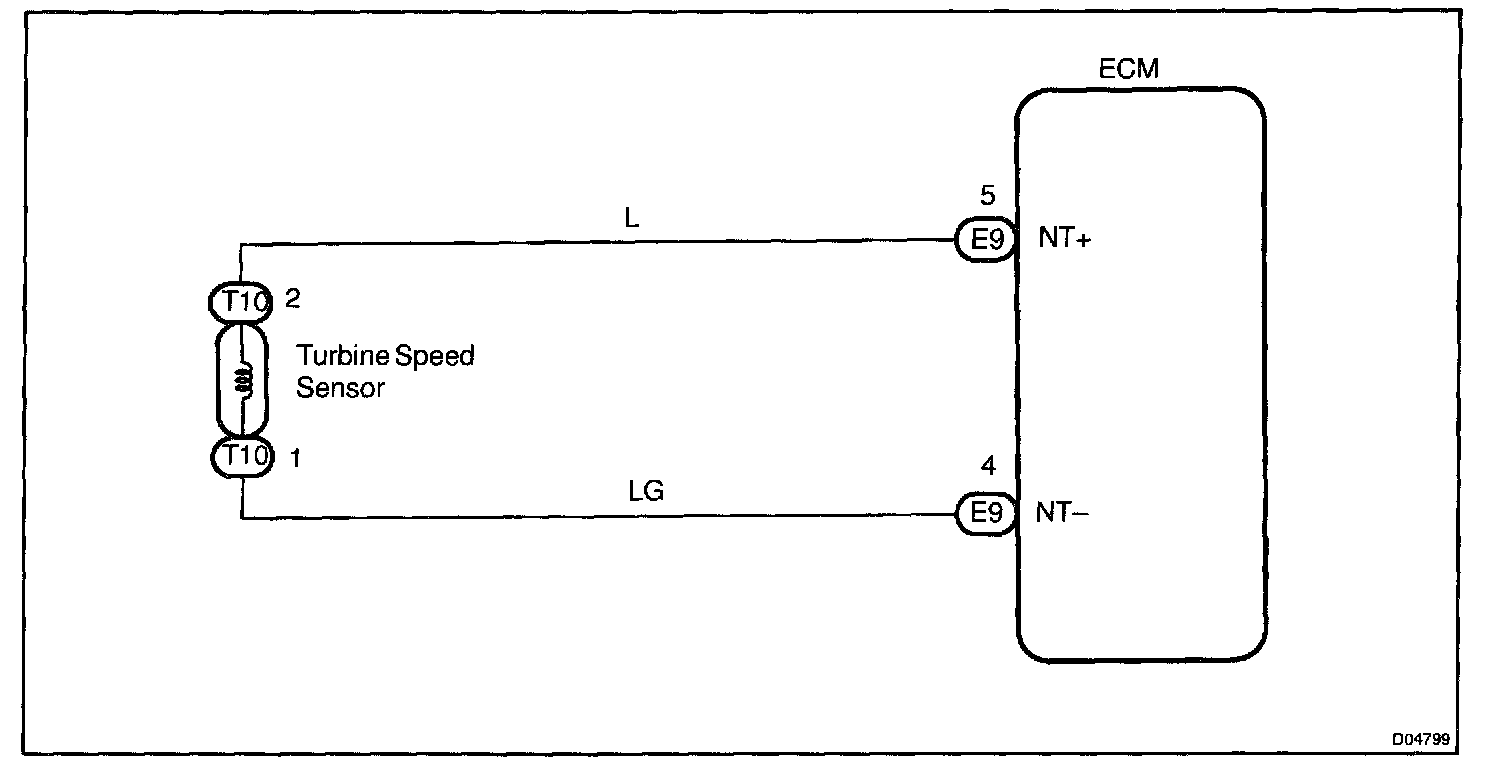

Wiring Diagram:

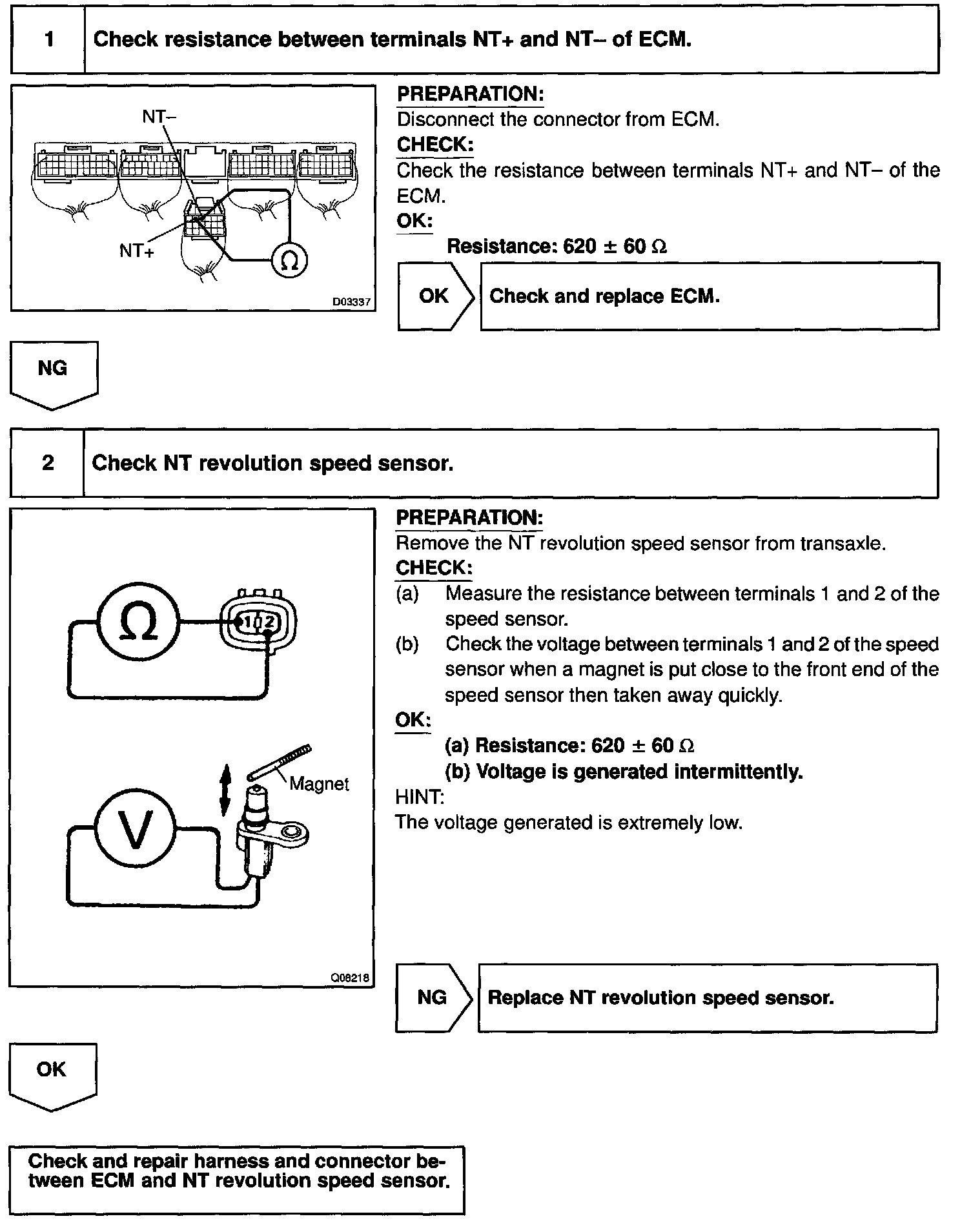

Steps 1 - 2:

INSPECTION PROCEDURE
