Troubleshooting

DTC P0710 TRANSMISSION FLUID TEMPERATURE SENSOR MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

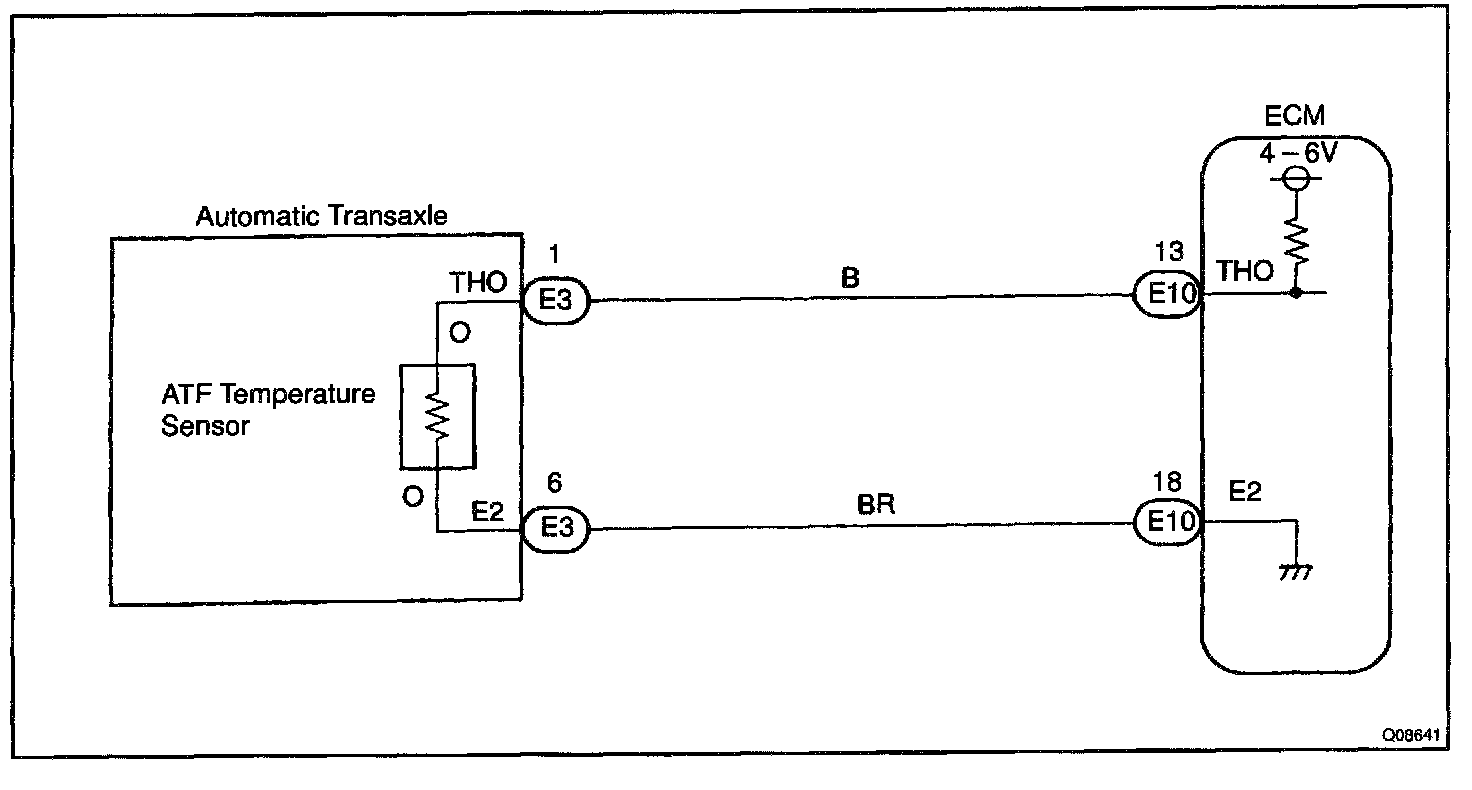

Wiring Diagram:

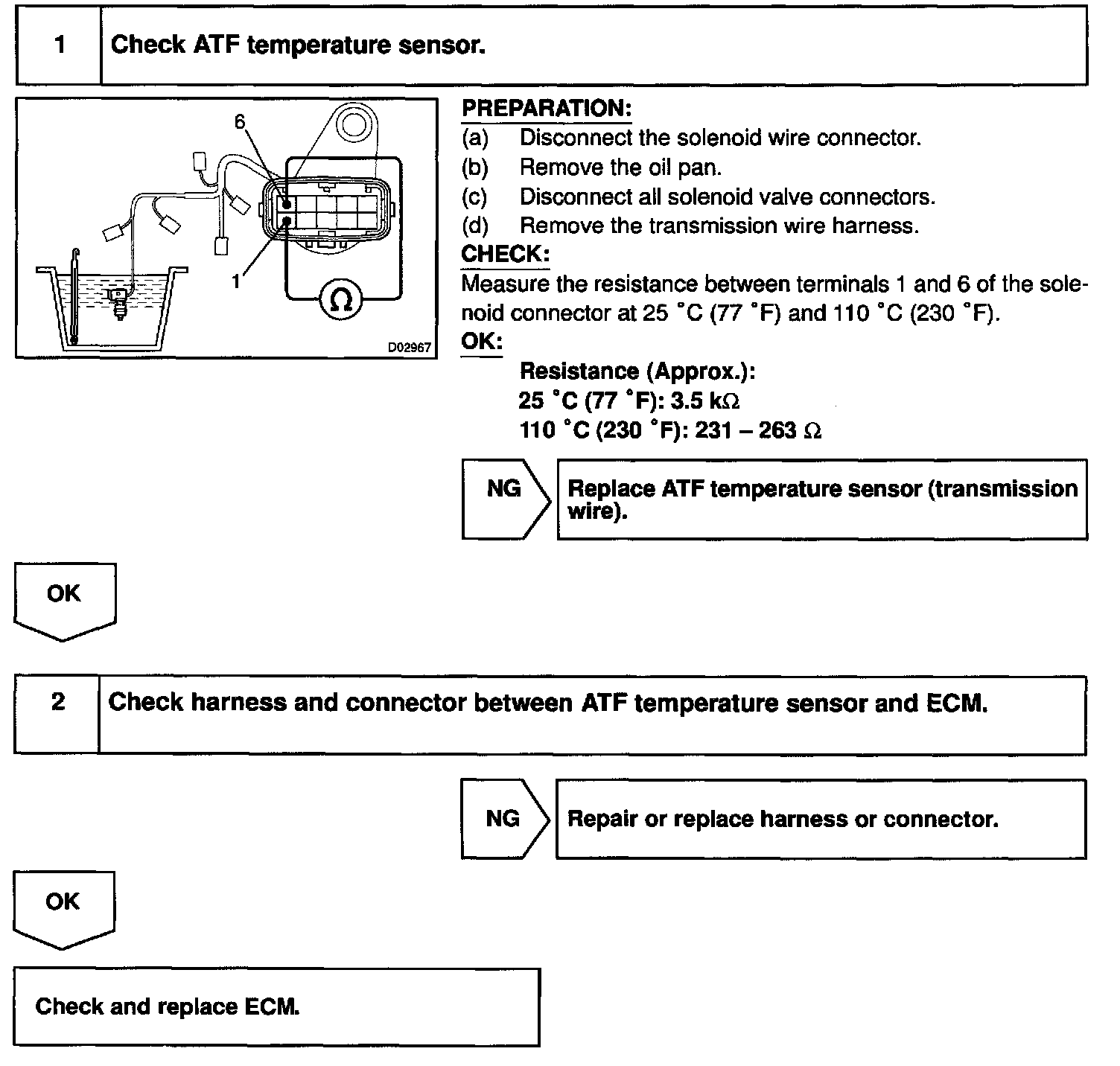

Steps 1 - 2:

INSPECTION PROCEDURE
