DTC P0500 VEHICLE SPEED SENSOR MALFUNCTION


NOTE: This article contains corrected data processed from TSB# PG001-05.

CIRCUIT DESCRIPTION

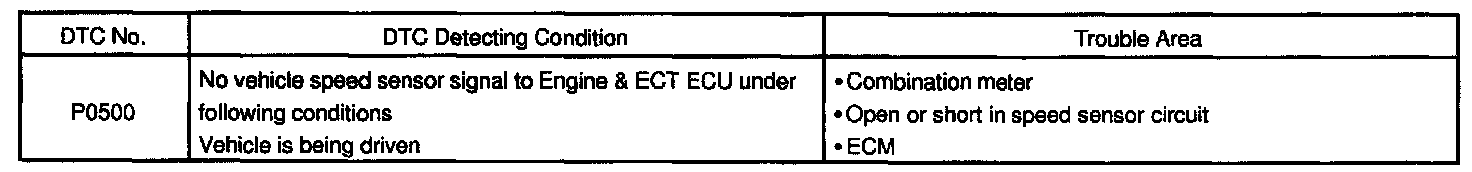

DTC Detecting condition:

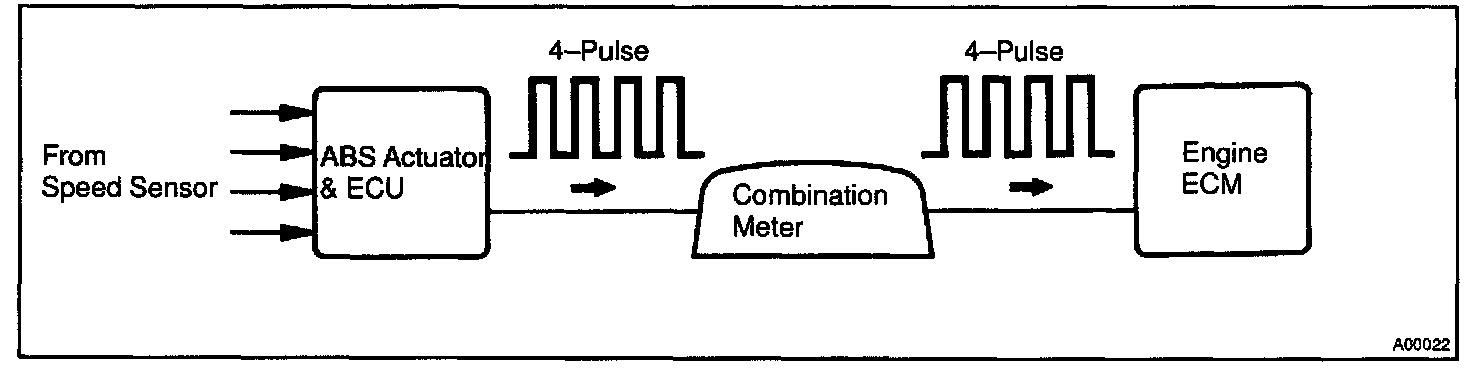

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.

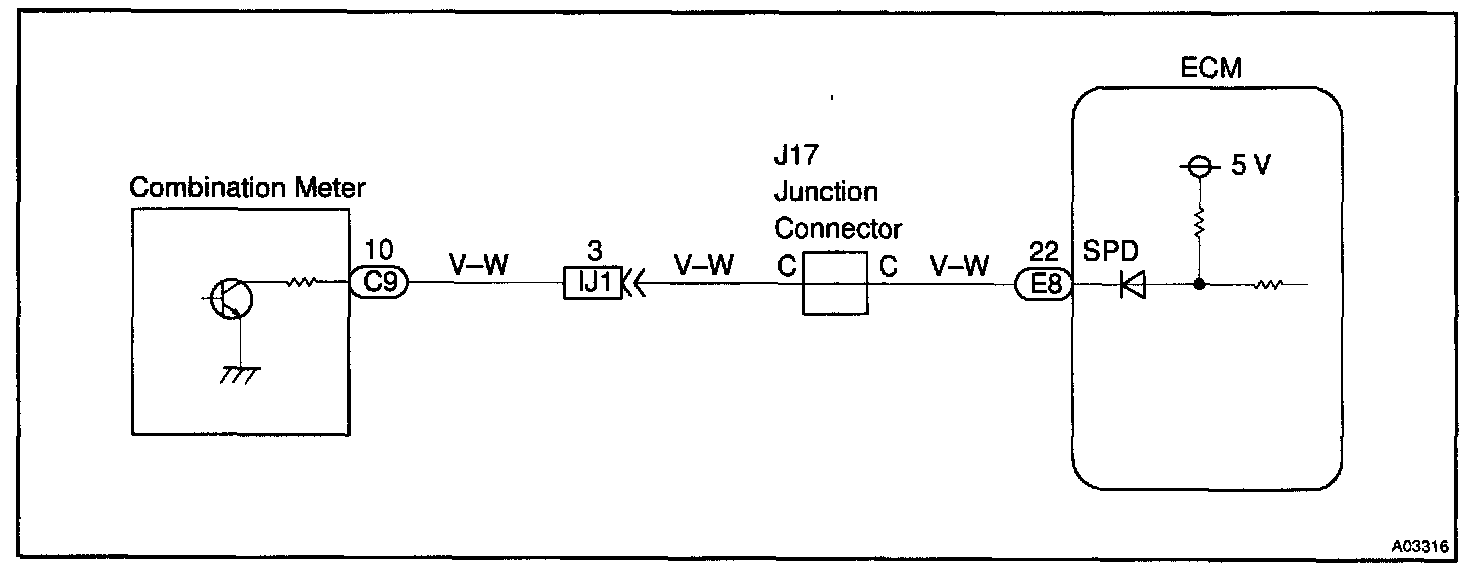

Wiring Diagram:

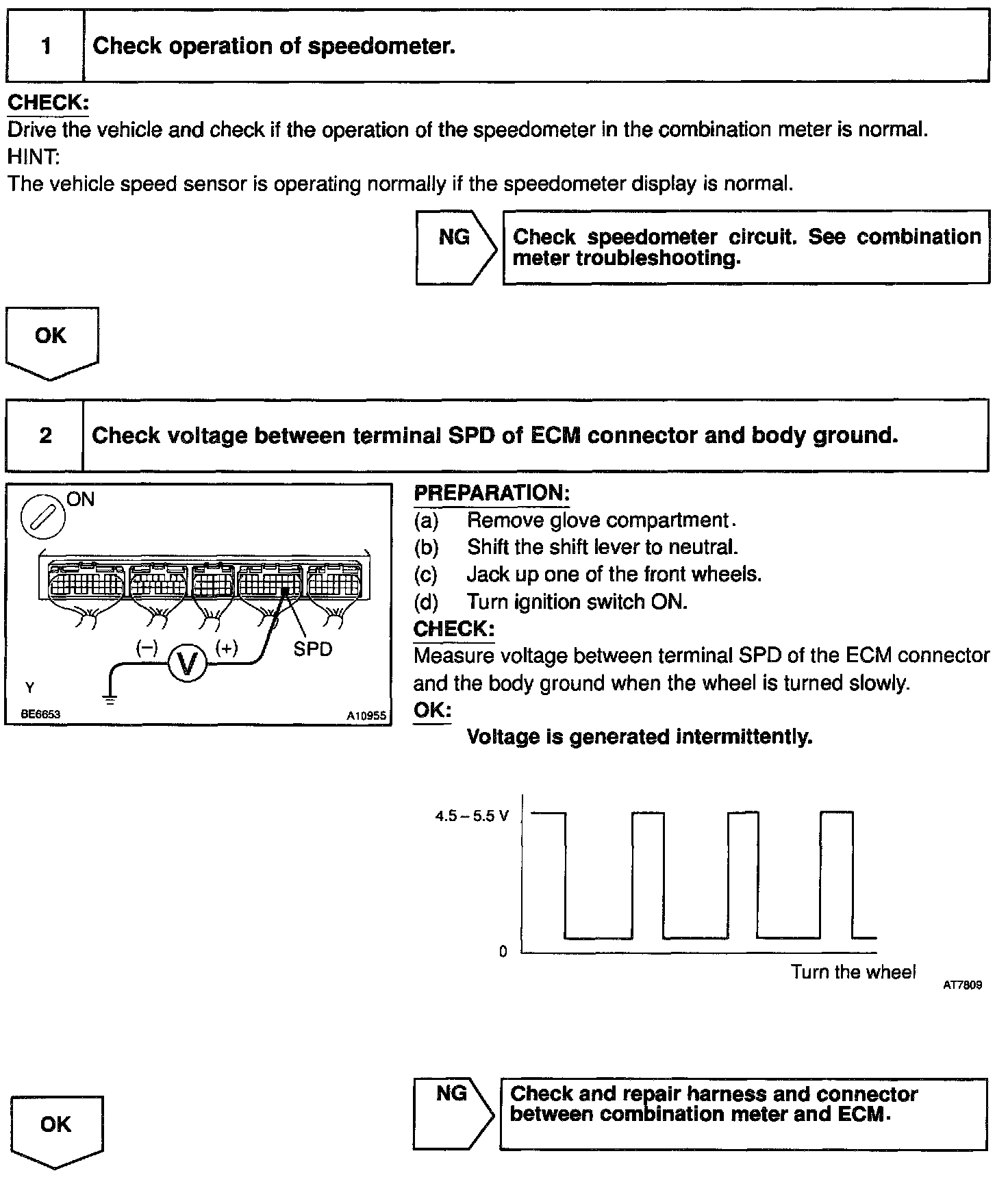

Steps 1 - 2:

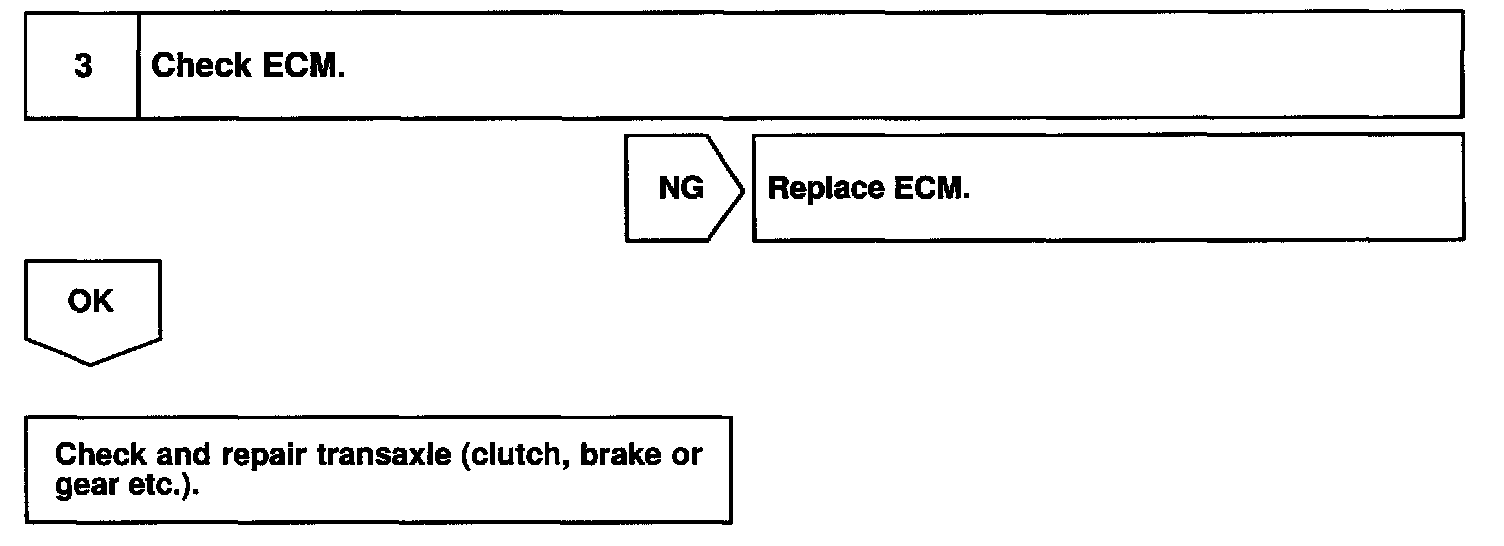

Step 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
