DTC 32

CIRCUIT DESCRIPTION

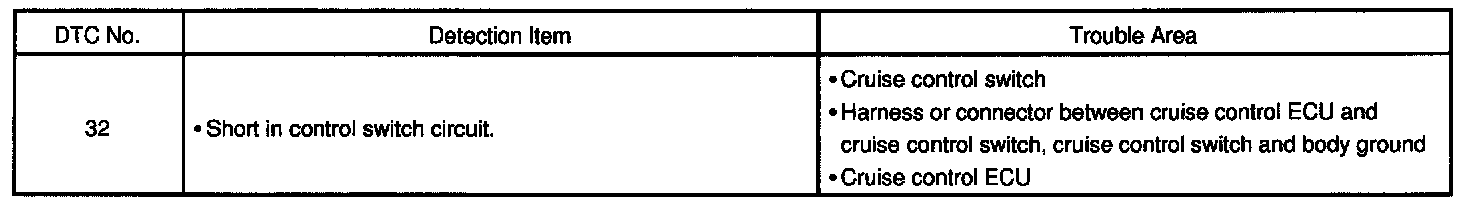

Detection Item:

This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

Wiring Diagram:

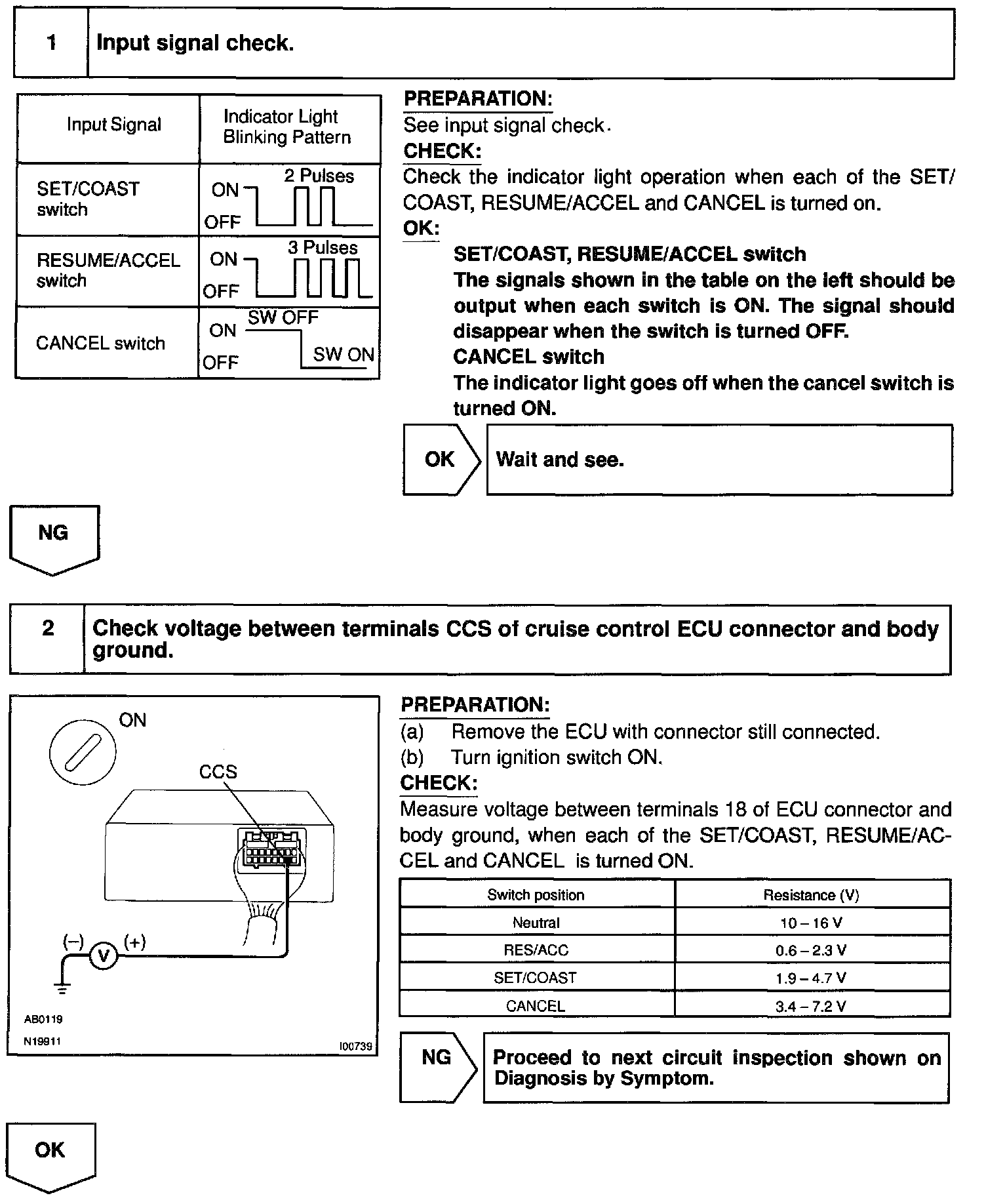

Steps 1 - 2:

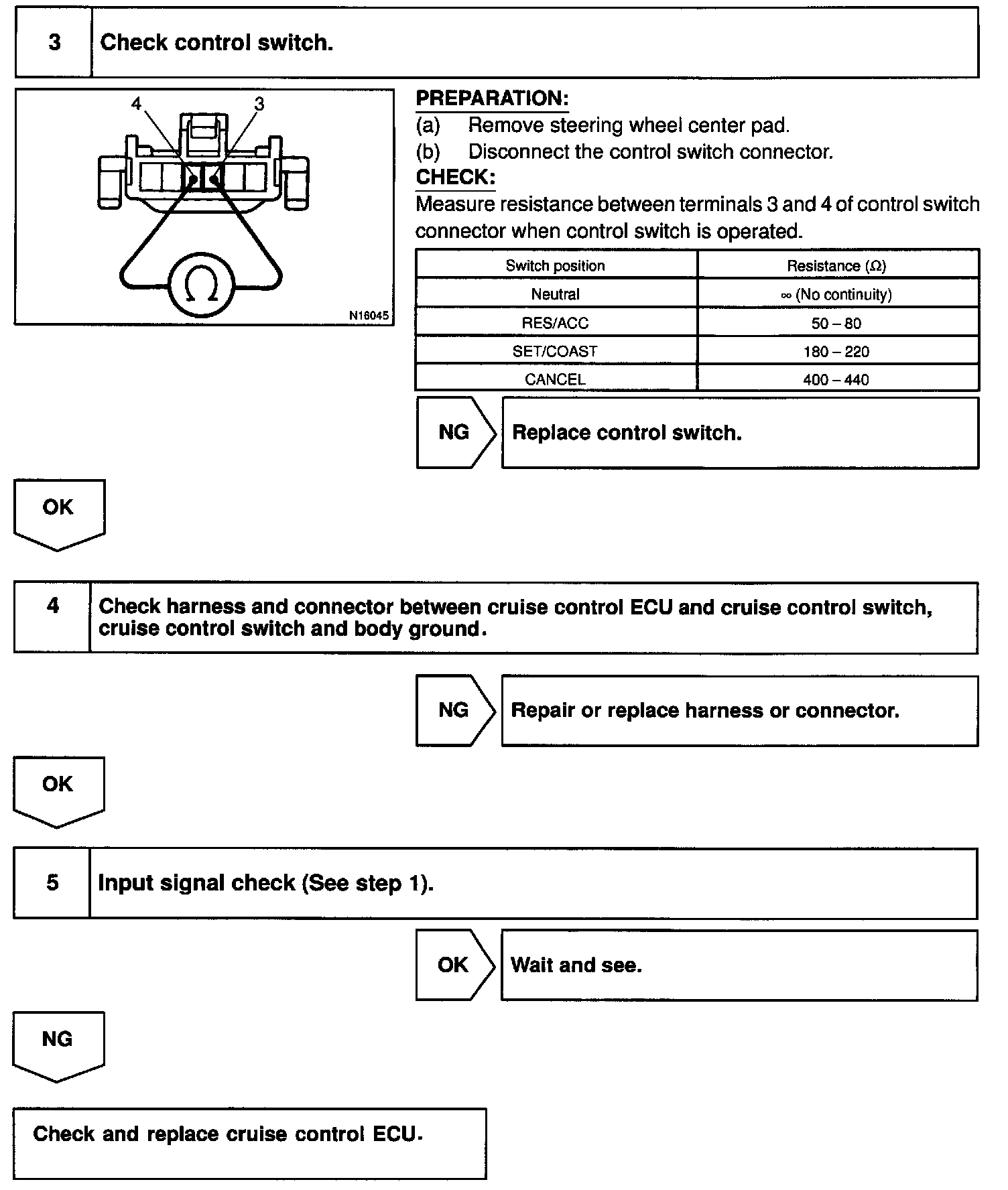

Steps 3 - 5:

INSPECTION PROCEDURE
