ABS W/BA & VSC System

C1231/31 - C1203/53:

HINT:
- Using SST 09843-18020 or 09843-18040, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3.
- If no abnormality is found when inspecting parts, inspect the ECU.

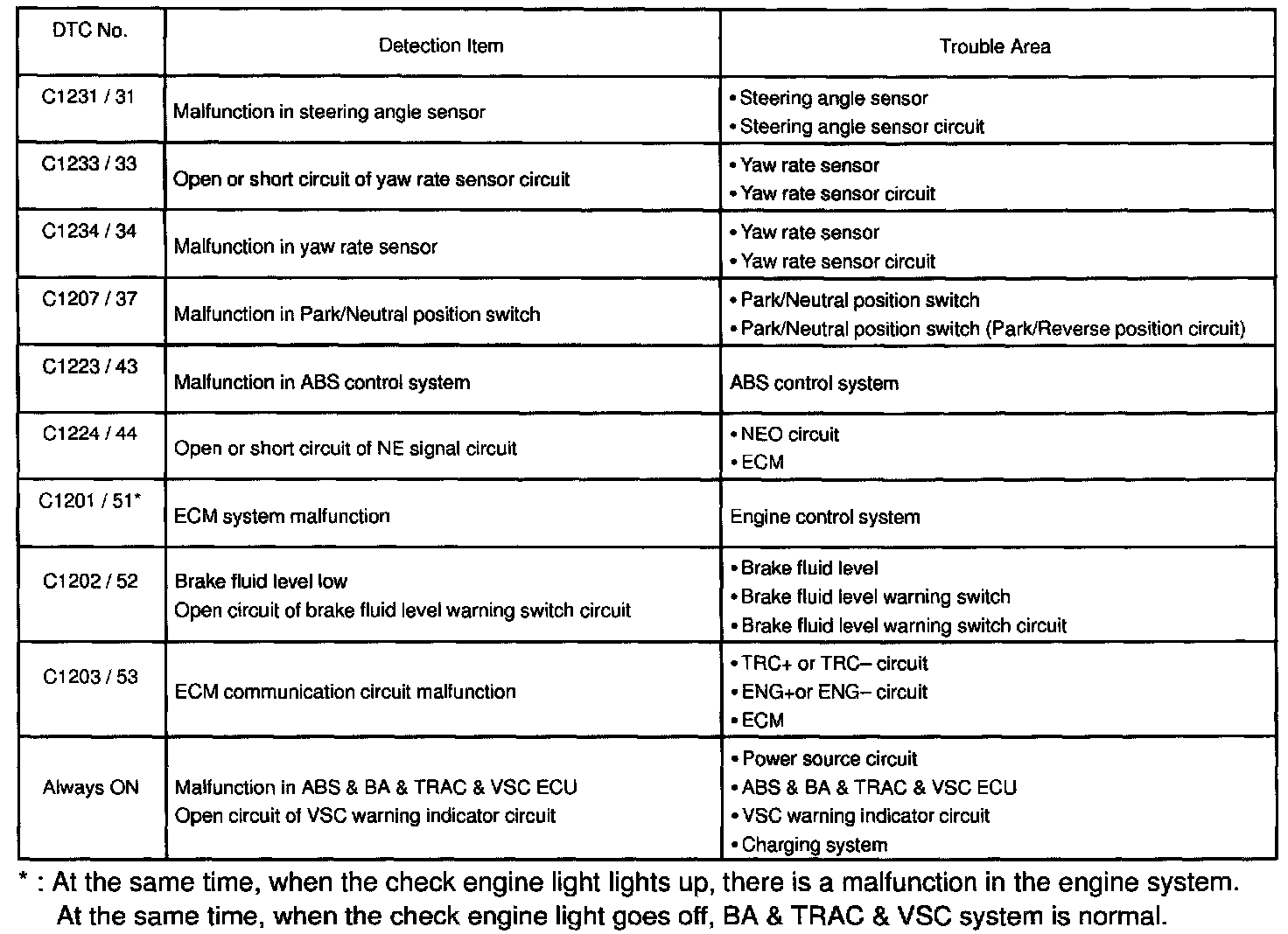

- If a malfunction code is displayed during the DTC check, check the circuit listed by code. For details of each code, refer to the respective "DTC No." in the DTC chart
- There is a case that LEXUS hand-held tester cannot be used when the VSC warning indicator is always on.
