ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Fail safe function:
If a trouble has occurred in the ABS & TRAC pump motor, the ECU cuts off the current to the ABS & TRAC solenoid relay and prohibits the ABS & TRAC controls.

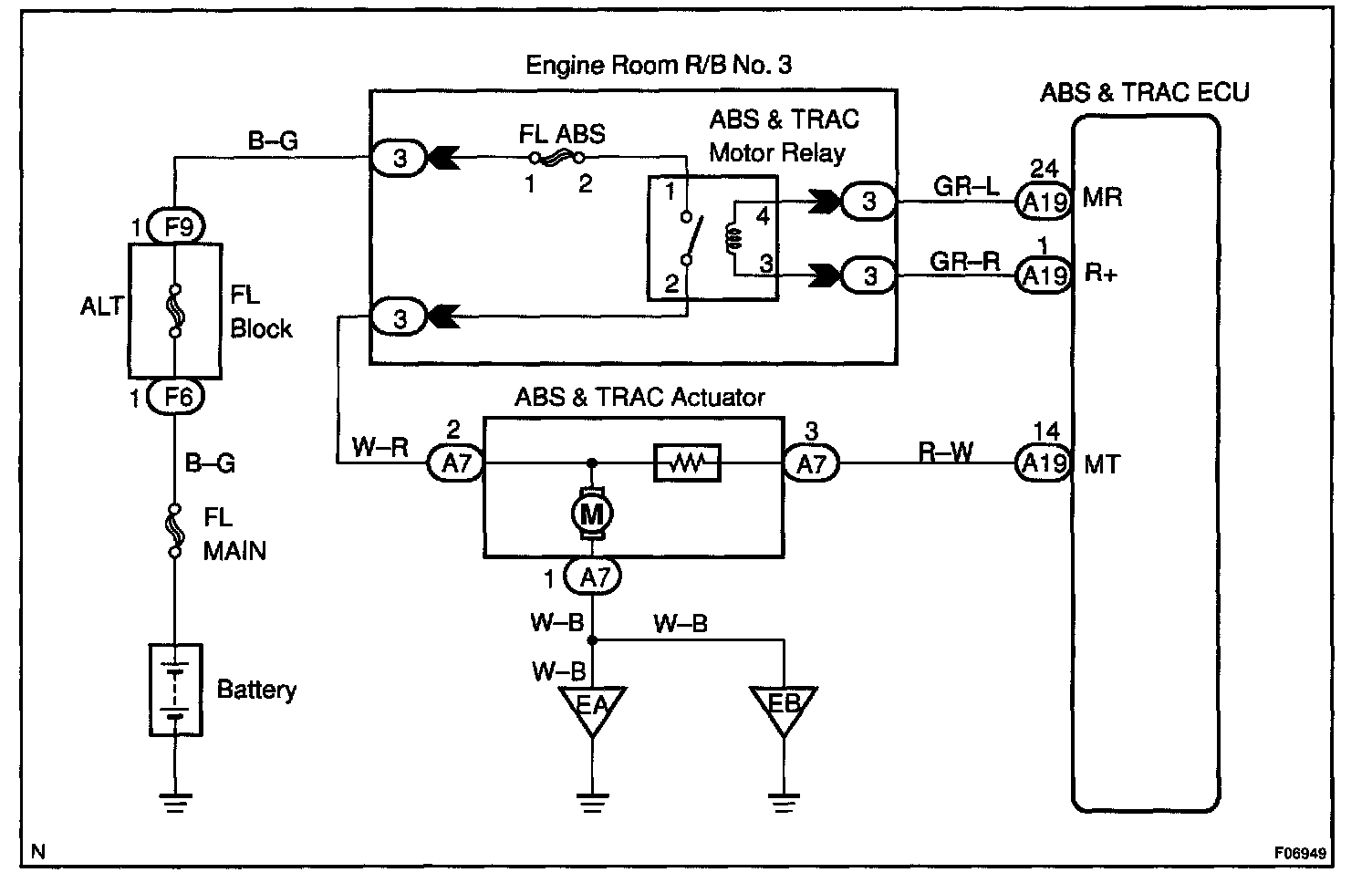

Wiring Diagram:

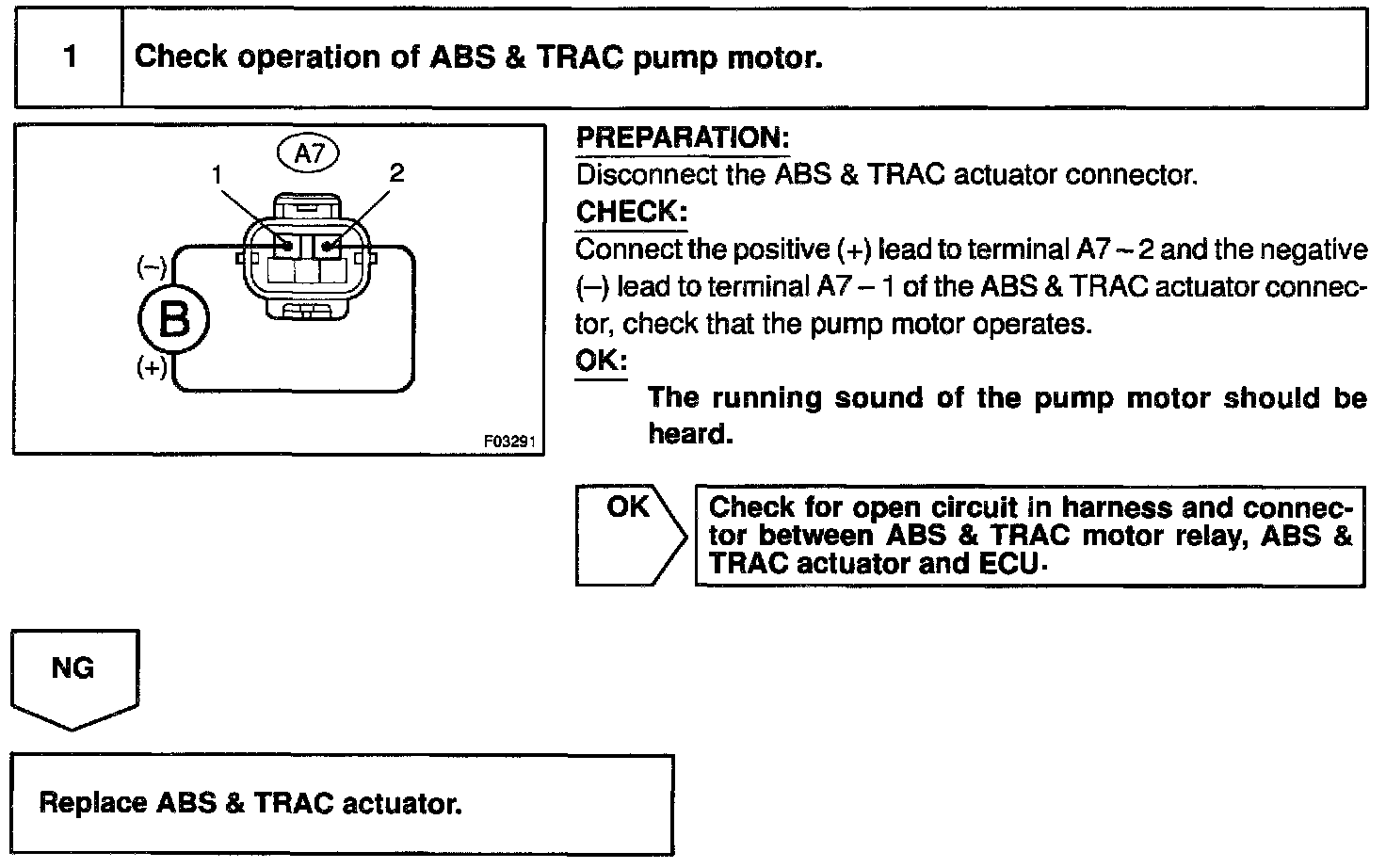

Step 1:

INSPECTION PROCEDURE
