ABS W/Vehicle Skid Control (VSC)

CIRCUIT DESCRIPTION

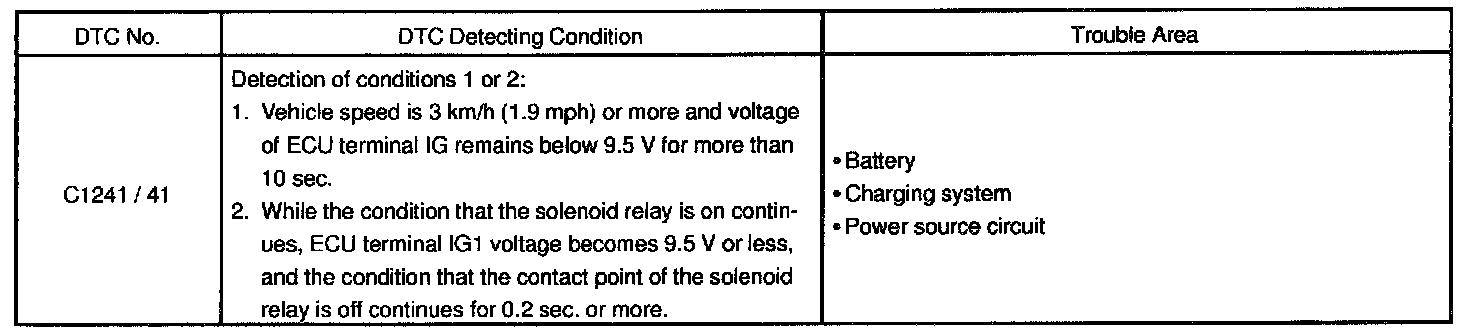

DTC Detecting Condition:

Fail safe function:
If a trouble occurred in the power source circuit the ECU cuts off the current to the ABS solenoid relay and prohibits the ABS (& BA & TRAC & VSC) controls and the brake system becomes normal.

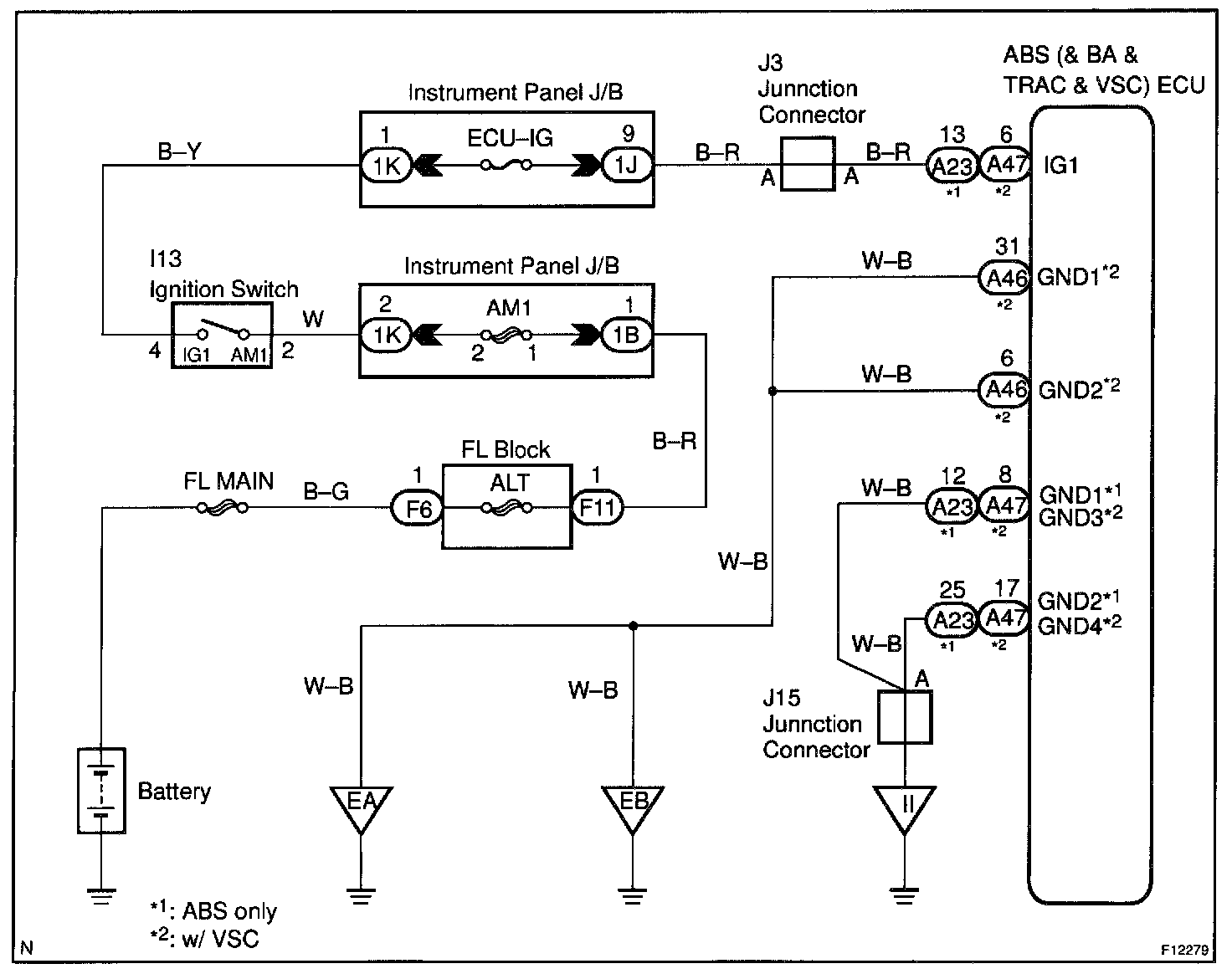

Wiring Diagram:

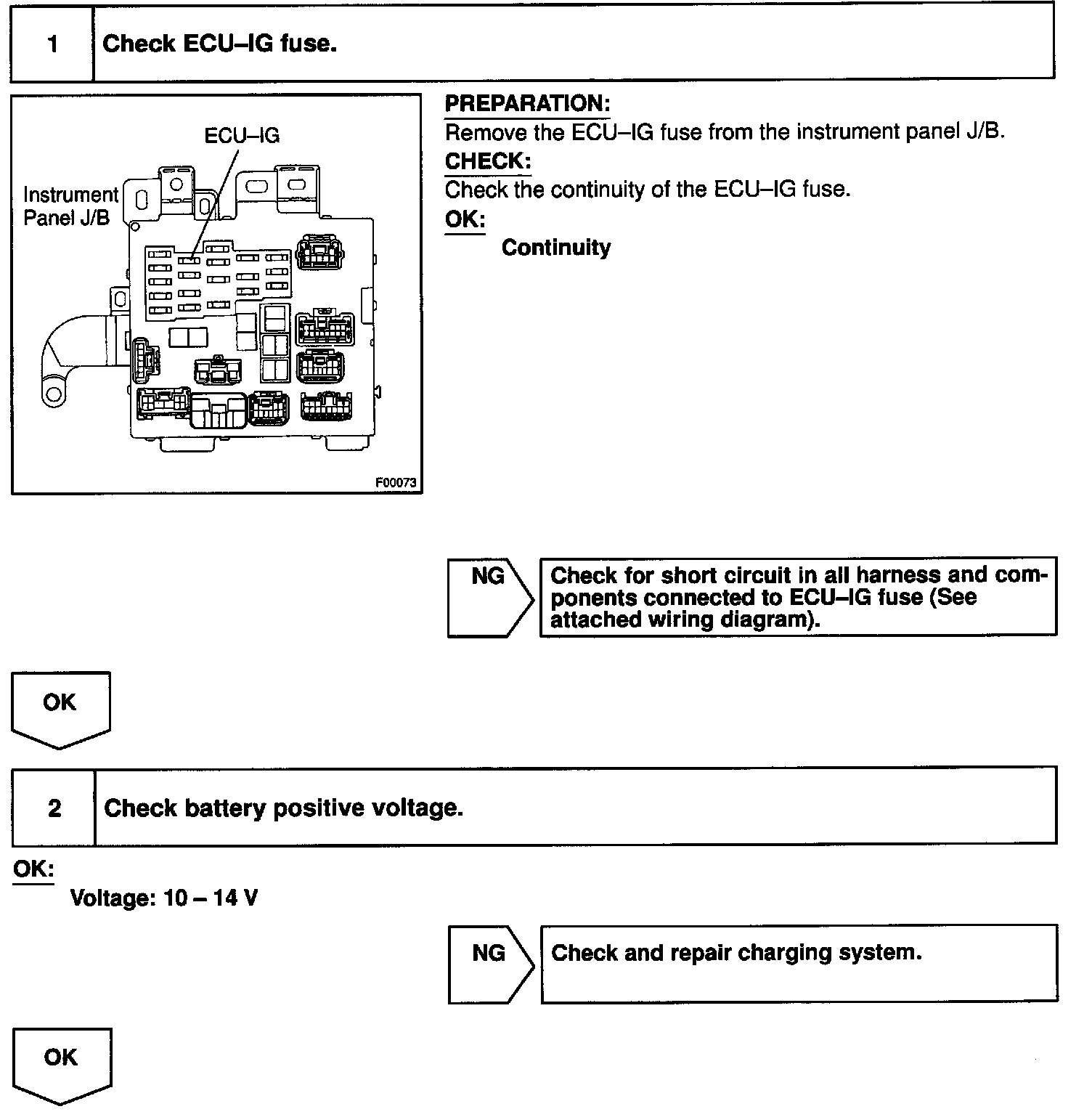

Steps 1 - 2:

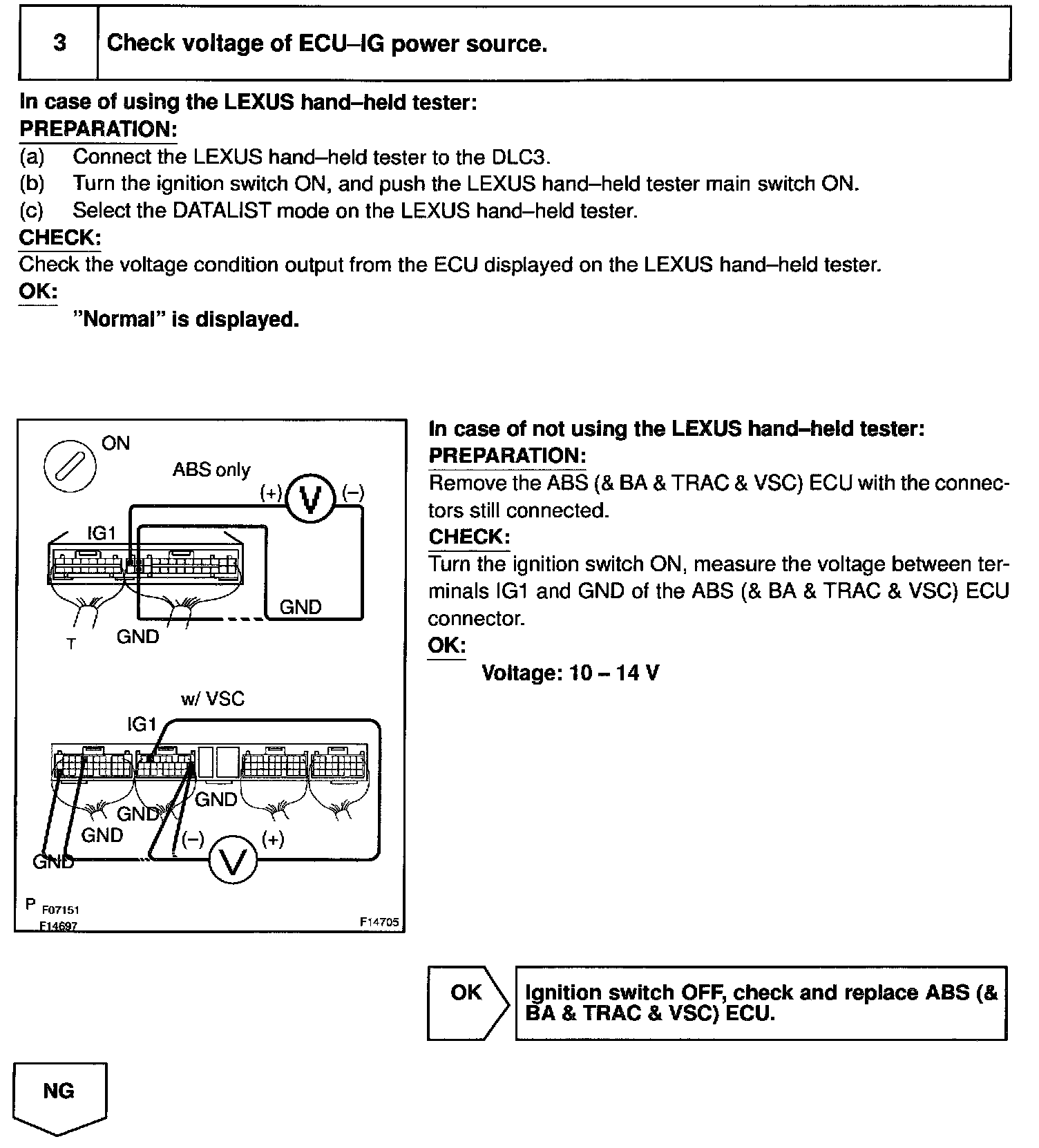

Step 3:

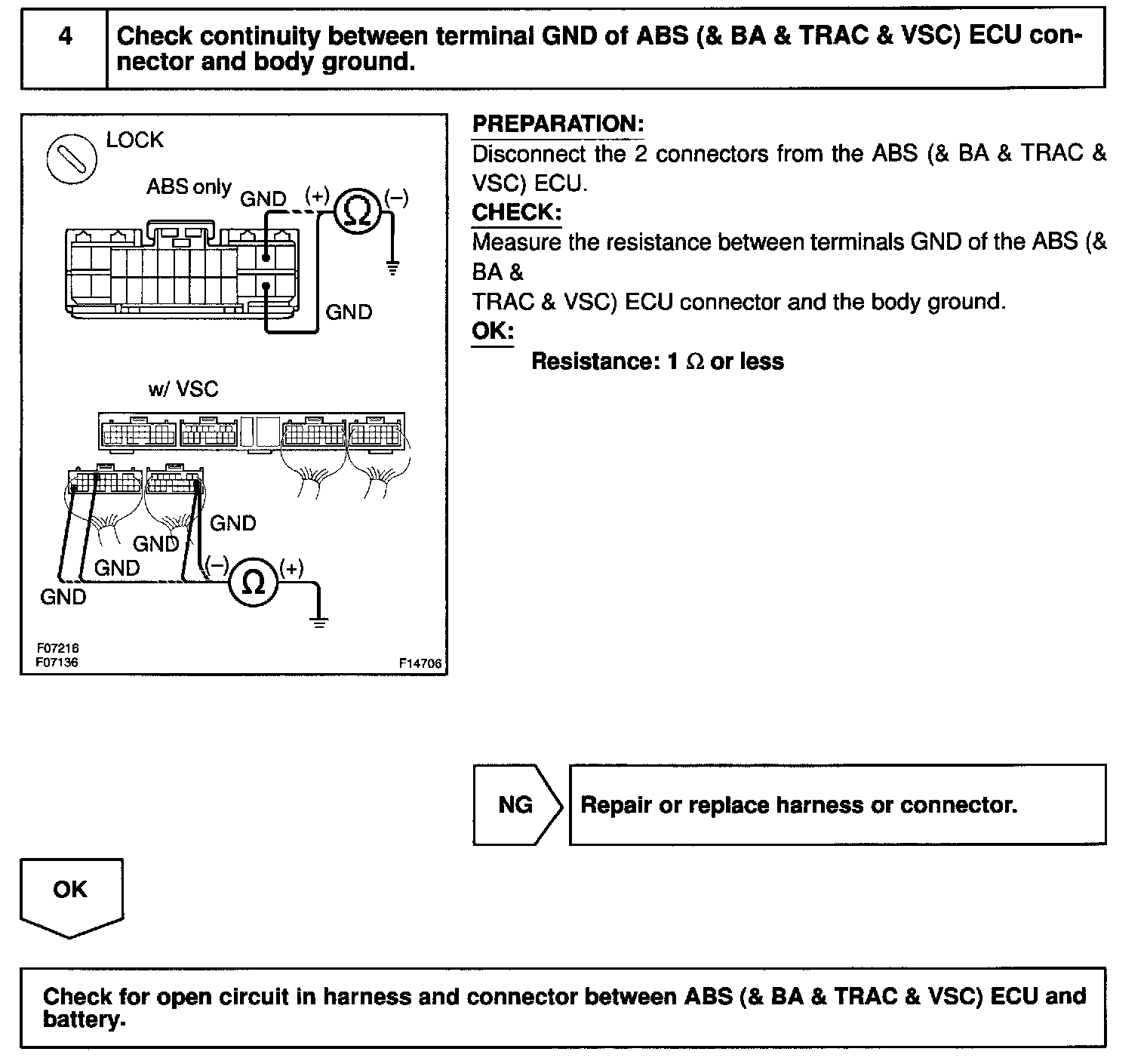

Step 4:

INSPECTION PROCEDURE
