ABS W/Vehicle Skid Control (VSC)

CIRCUIT DESCRIPTION

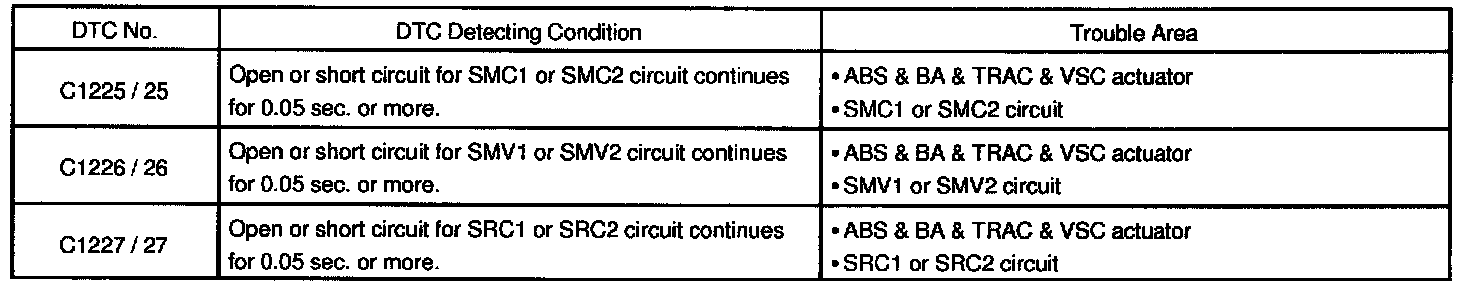

DTC Detecting Condition:

TRAC & VSC solenoid operates in accordance with signals from the ECU and raises the fluid pressure in and releases it from the brake cylinders.

Fail safe function:
If a trouble has occurred in the actuator solenoid circuit, the ECU cuts off the current to the ABS solenoid relay and prohibits the ABS & BA & TRAC & VSC controls and the brake system becomes normal.

Wiring Diagram:

Steps 1 - 2:

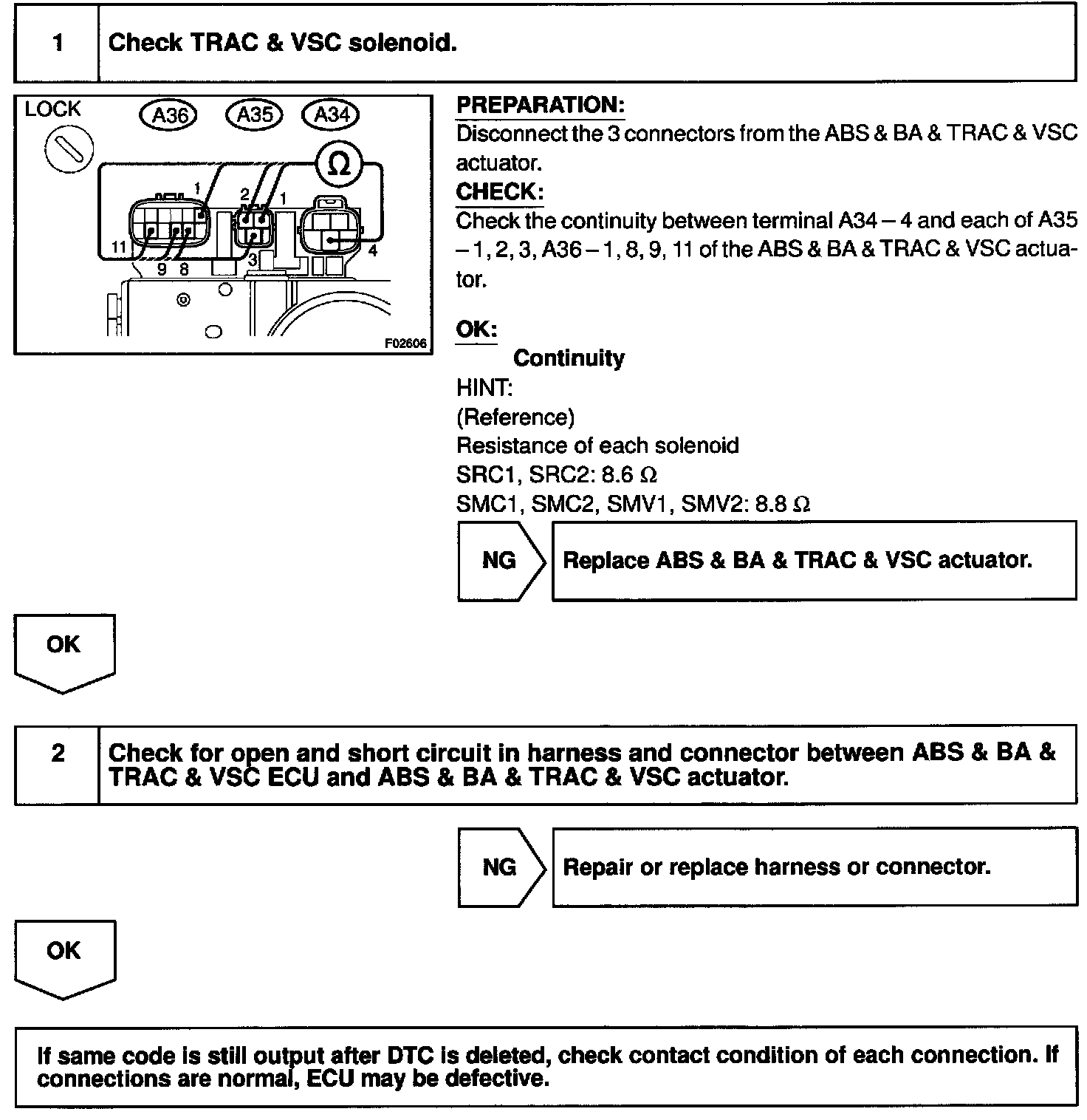

INSPECTION PROCEDURE
