ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION

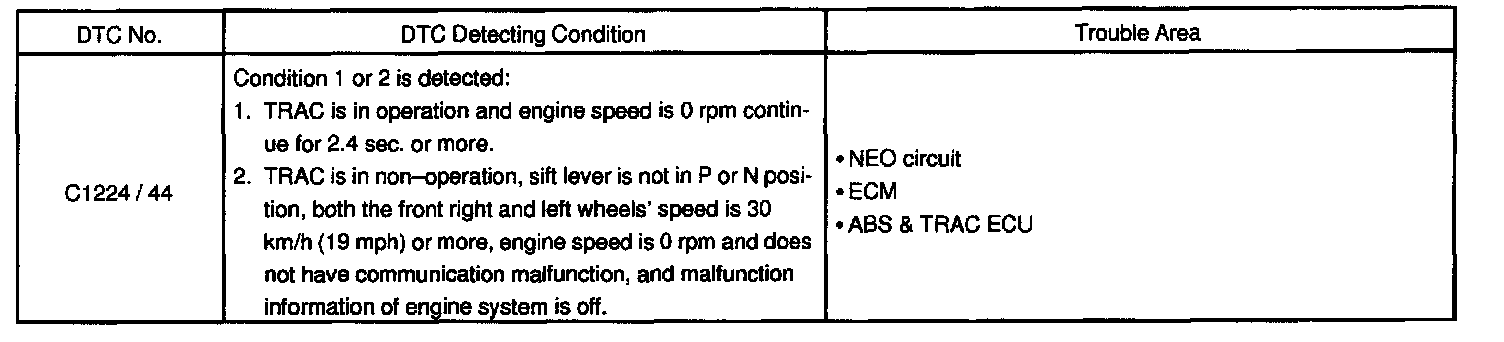

DTC Detecting Condition:

ABS & TRAC ECU receives engine speed signals (NE signals) from the ECM.

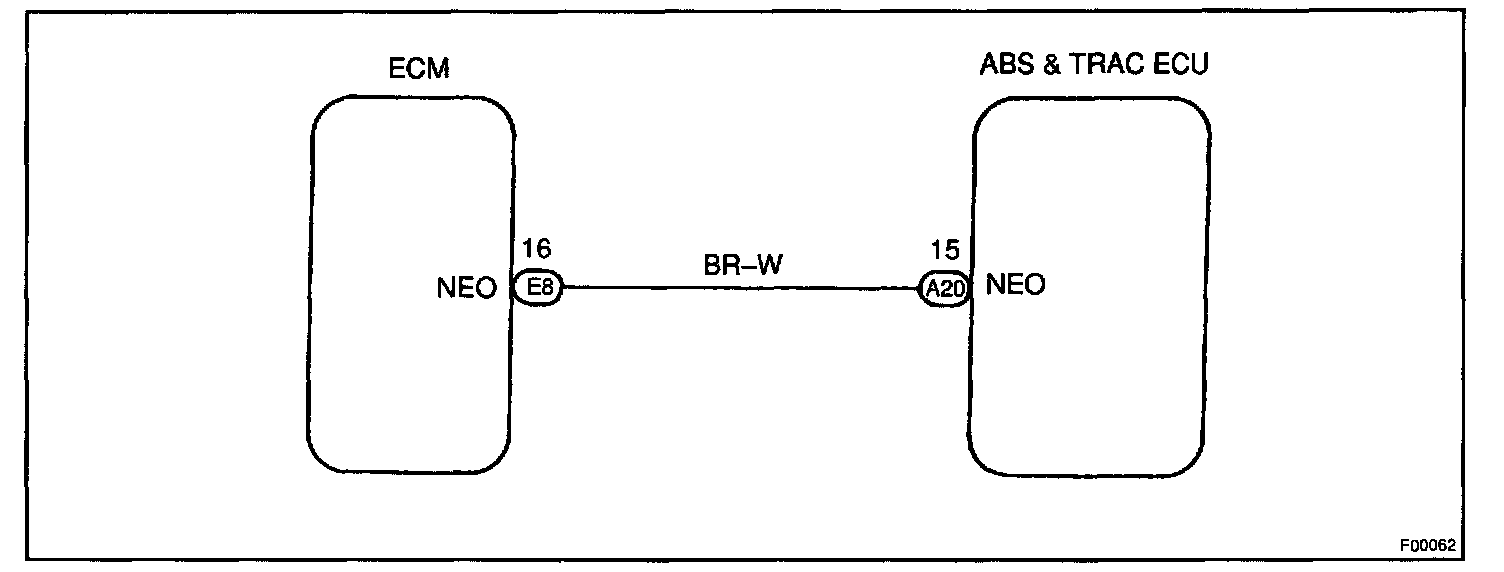

Wiring Diagram:

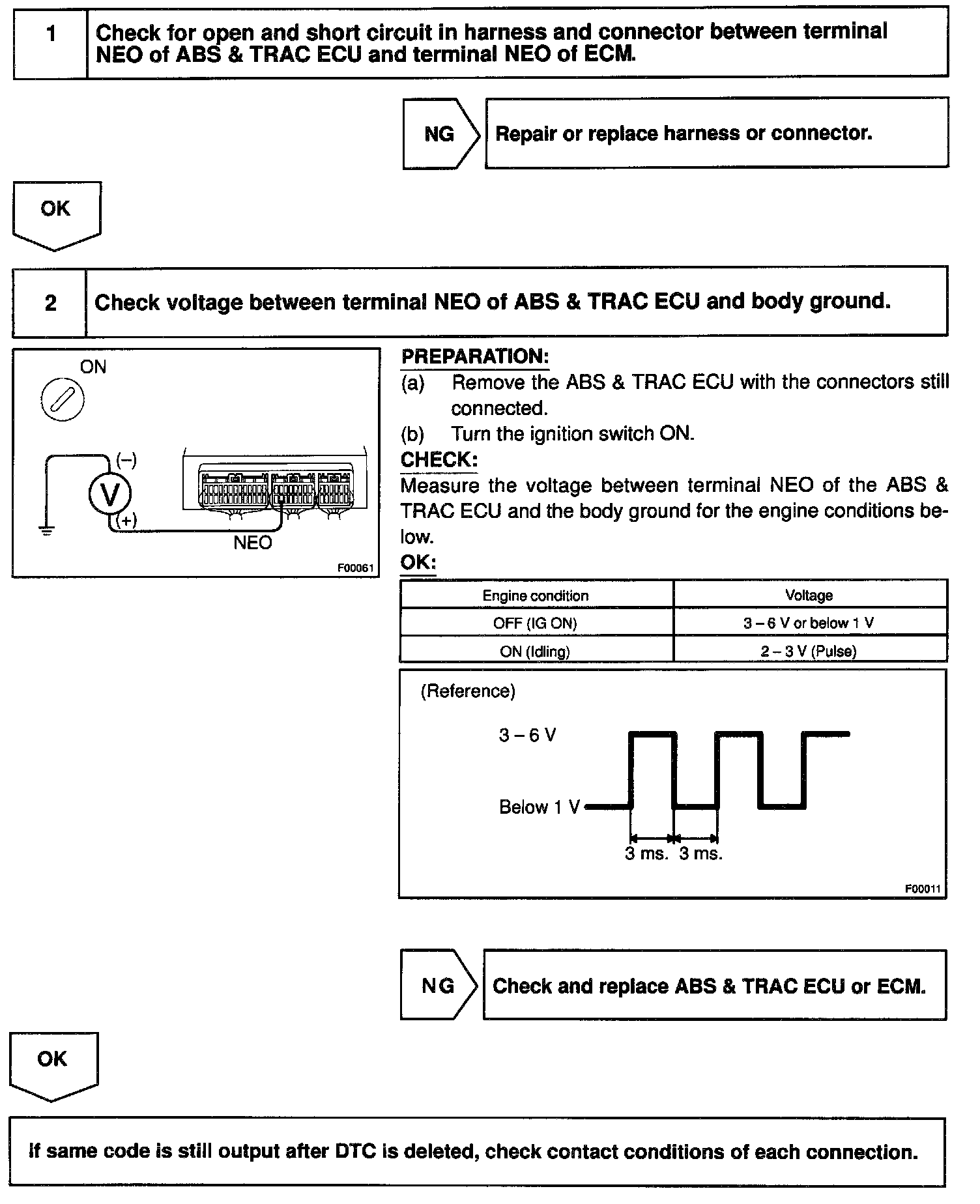

Steps 1 - 2:

INSPECTION PROCEDURE
