C1223
>>
ABS W/Traction Control (TRAC)
ABS W/Traction Control (TRAC)

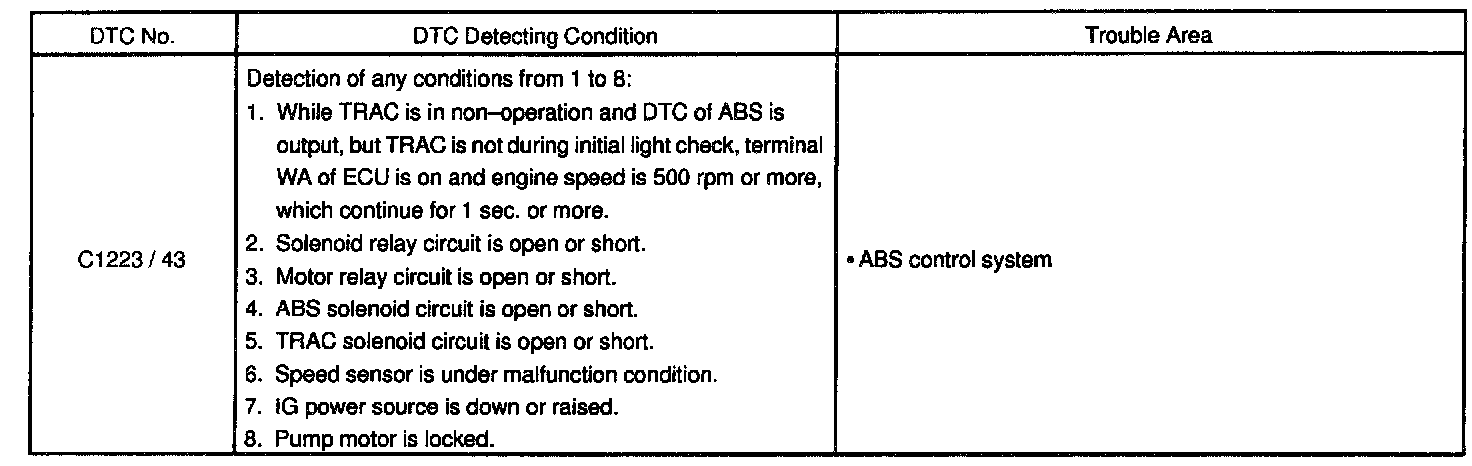

DTC Detecting Condition:
CIRCUIT DESCRIPTION
Step 1:

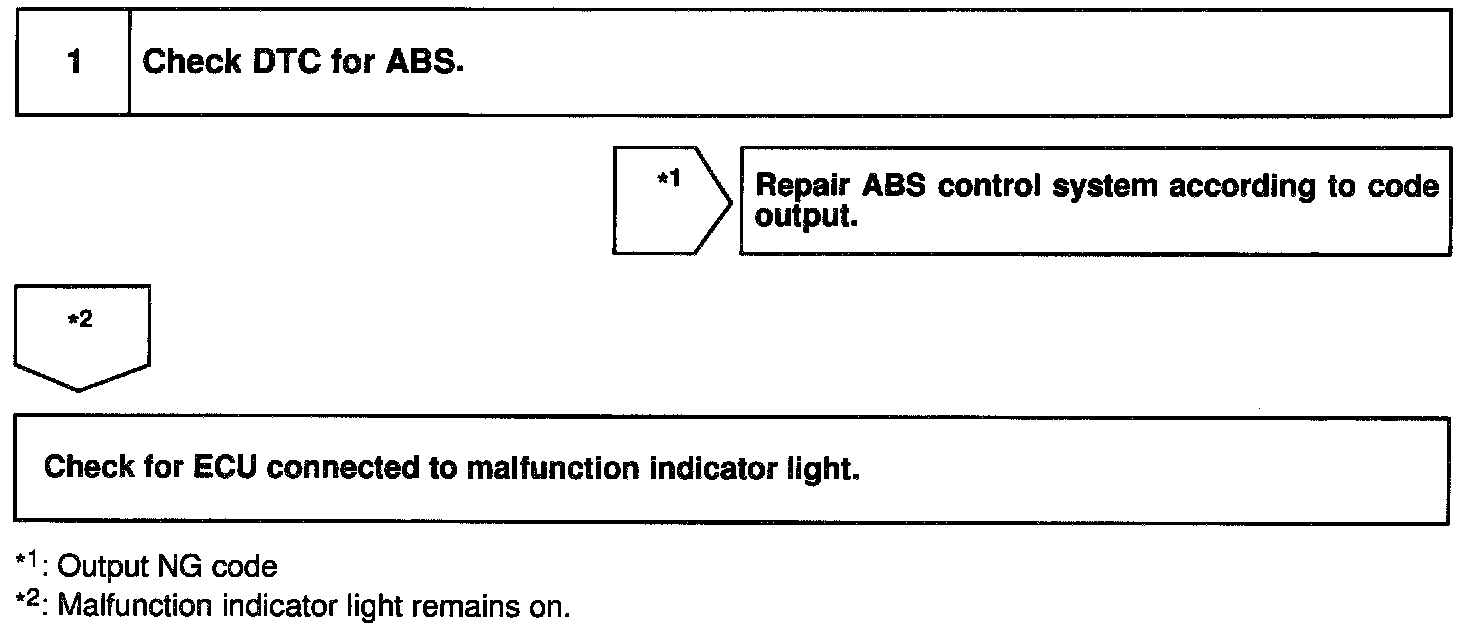

INSPECTION PROCEDURE
