ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION

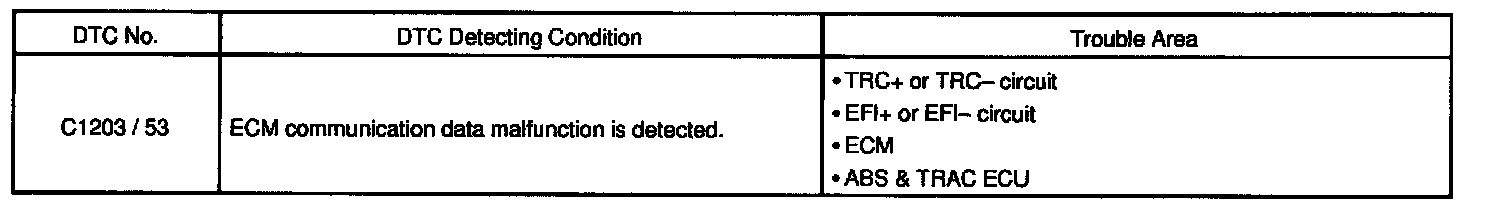

DTC Detecting Condition:

This circuit is used to send the TRAC control information to the ECM (TRC+, TRC-) from the ABS & TRAC ECU and engine information to the ABS & TRAC (EFI+, EFI-) from the ECM.

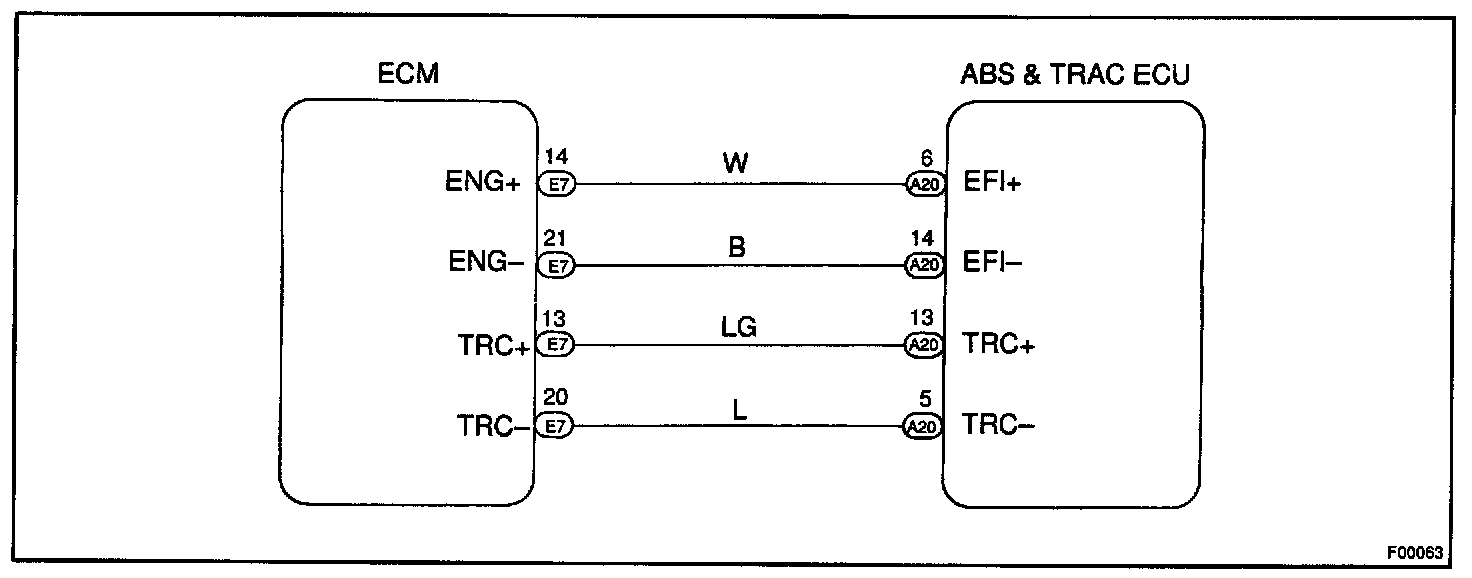

Wiring Diagram:

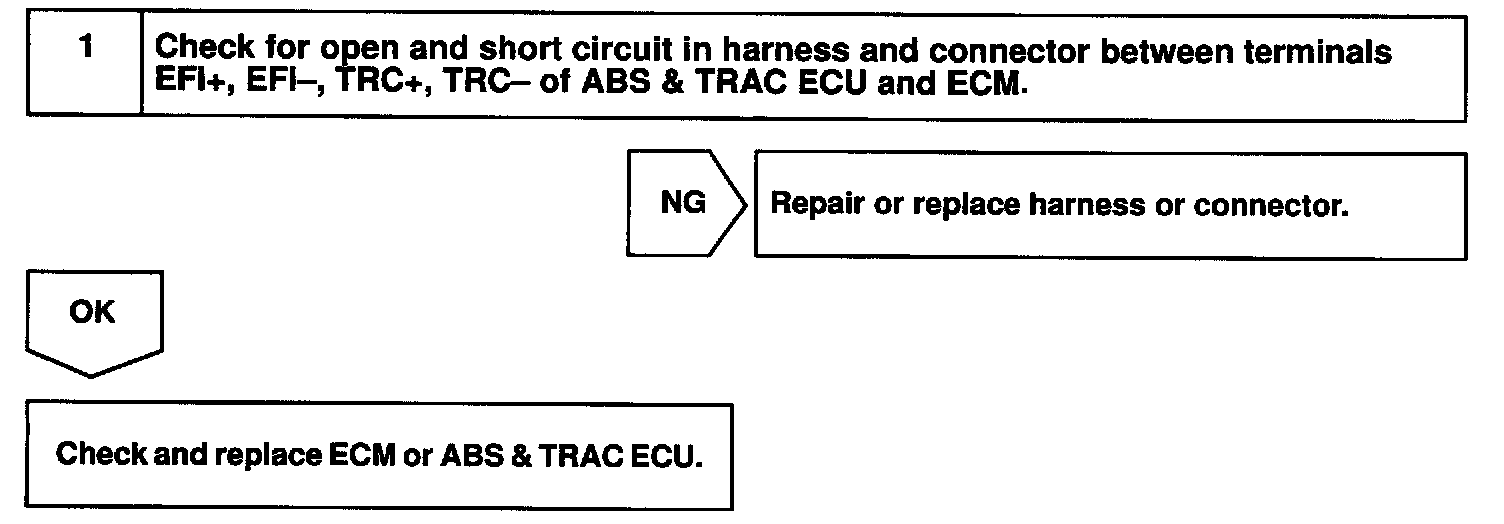

Step 1:

INSPECTION PROCEDURE
