ABS W/Vehicle Skid Control (VSC)

CIRCUIT DESCRIPTION

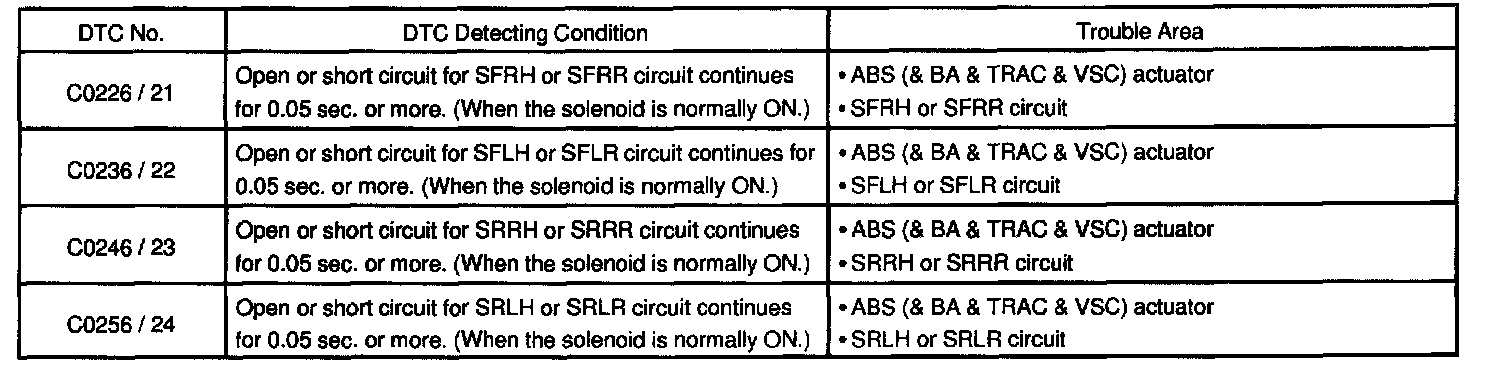

DTC Detecting Condition:

This solenoid comes on when receiving signals from the ECU controlled and controls the pressure acting on the wheel cylinders, thus the braking force is controlled.

Fail safe function:
If a trouble has occurred in the actuator solenoid circuit, the ECU cuts off current to the ABS solenoid relay and prohibits the ABS (& BA & TRAC & VSC) controls and the brake system becomes normal.

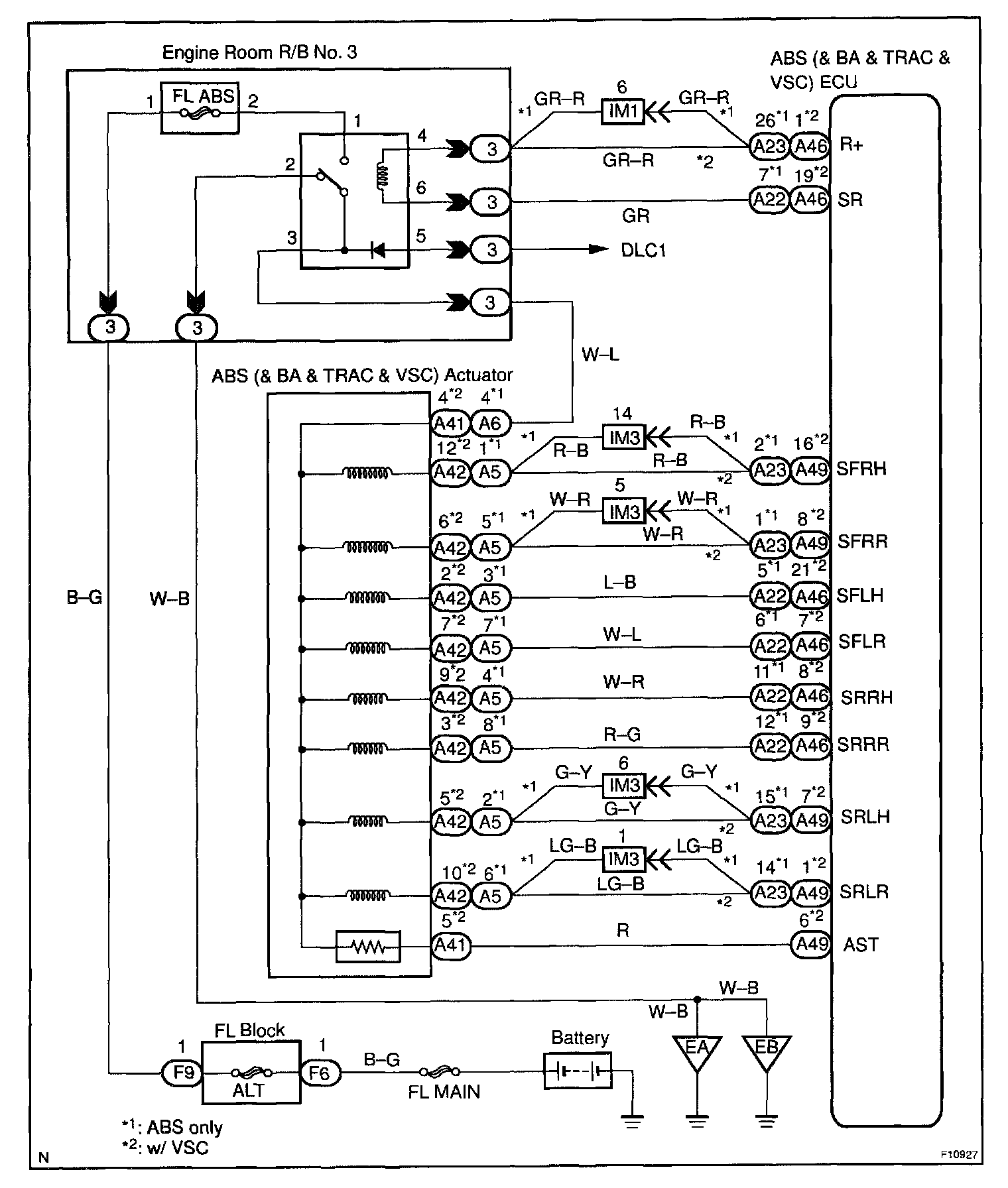

Wiring Diagram:

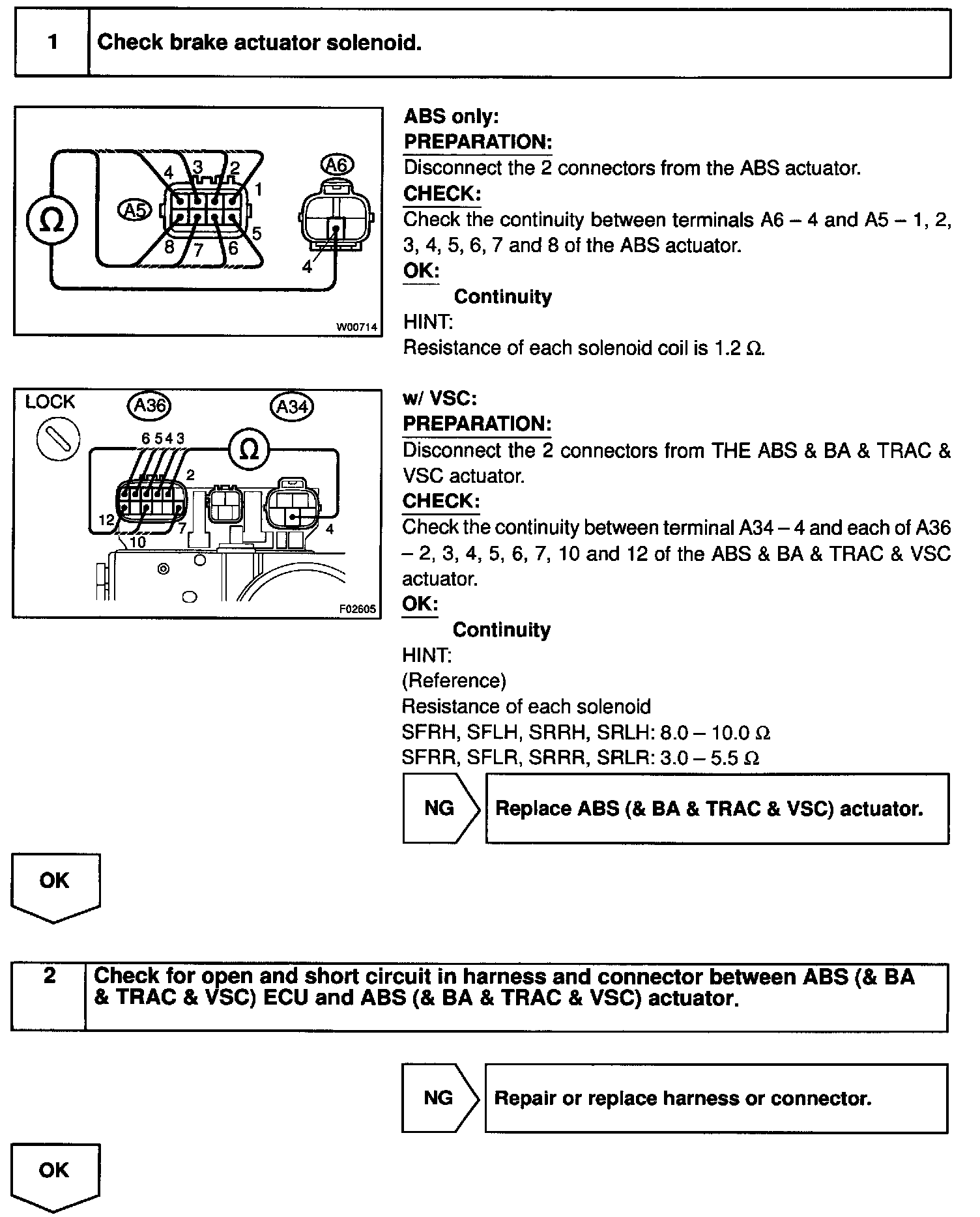

Steps 1 - 2:

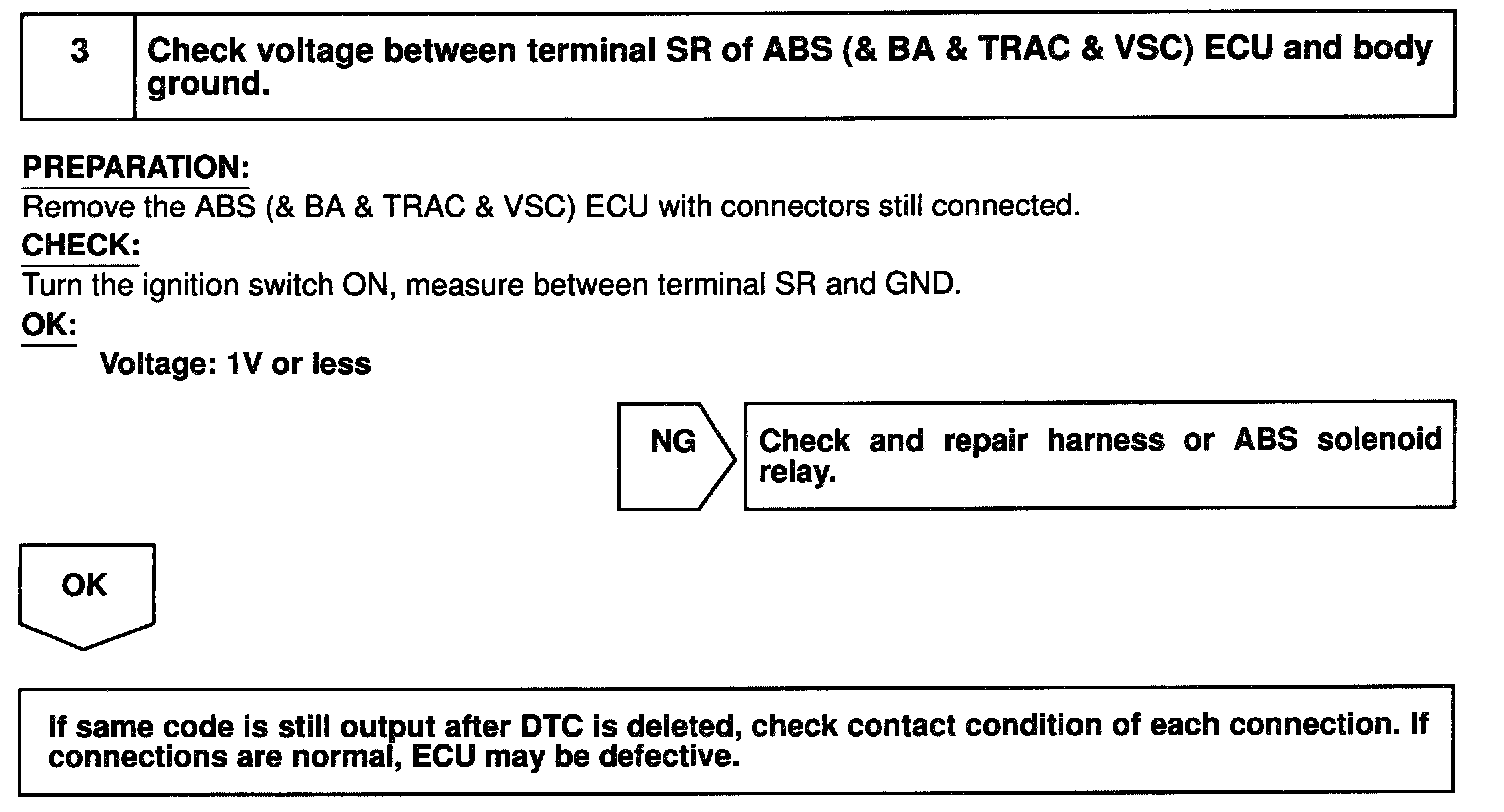

Step 3:

INSPECTION PROCEDURE
