Air Inlet Control Servomotor Circuit

CIRCUIT DESCRIPTION

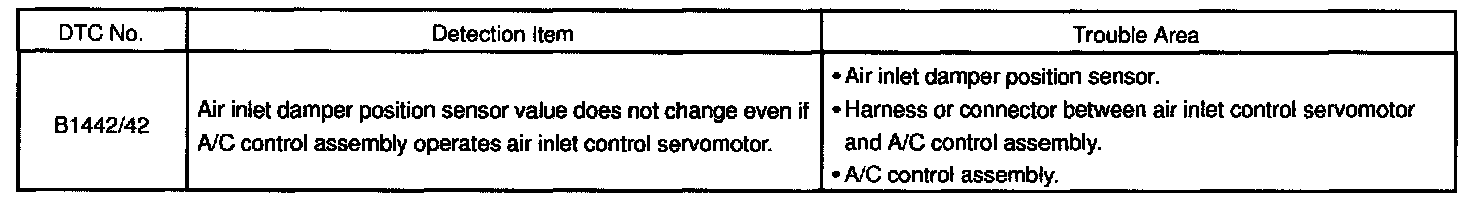

Detection Item:

This air mix control servomotor is control by the A/C control assembly and moves the air mix damper to the desired position.

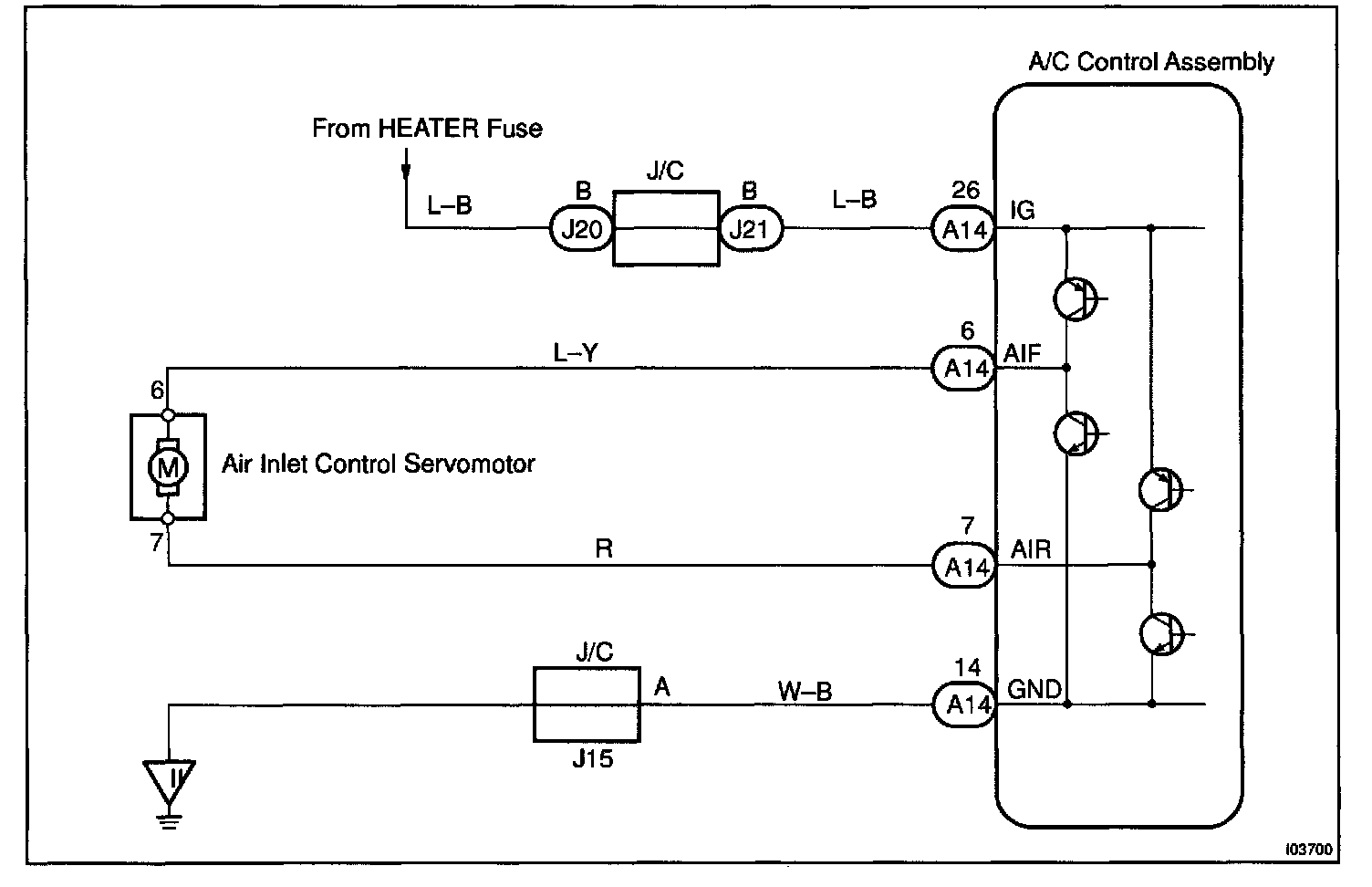

Wiring Diagram:

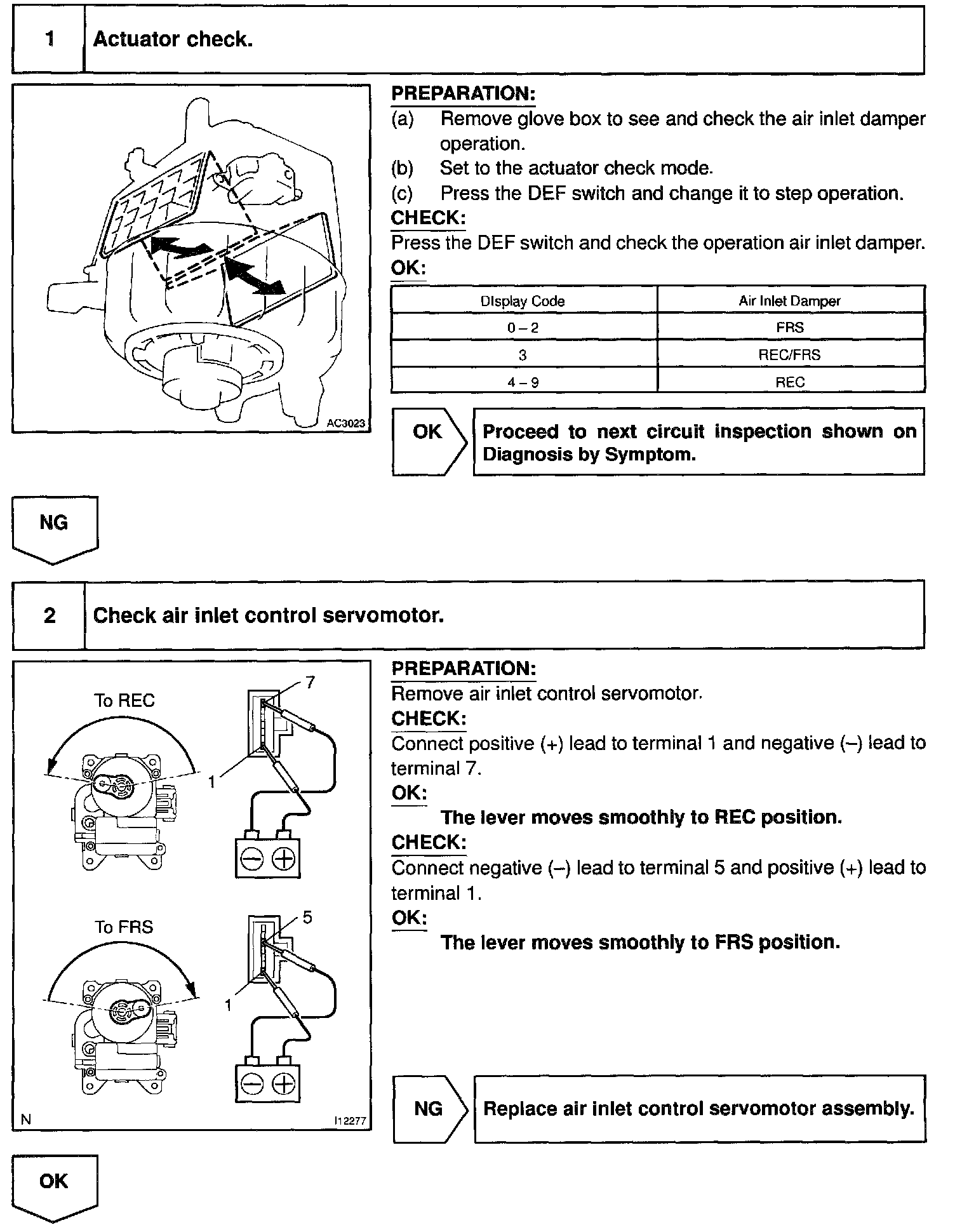

Steps 1 - 2:

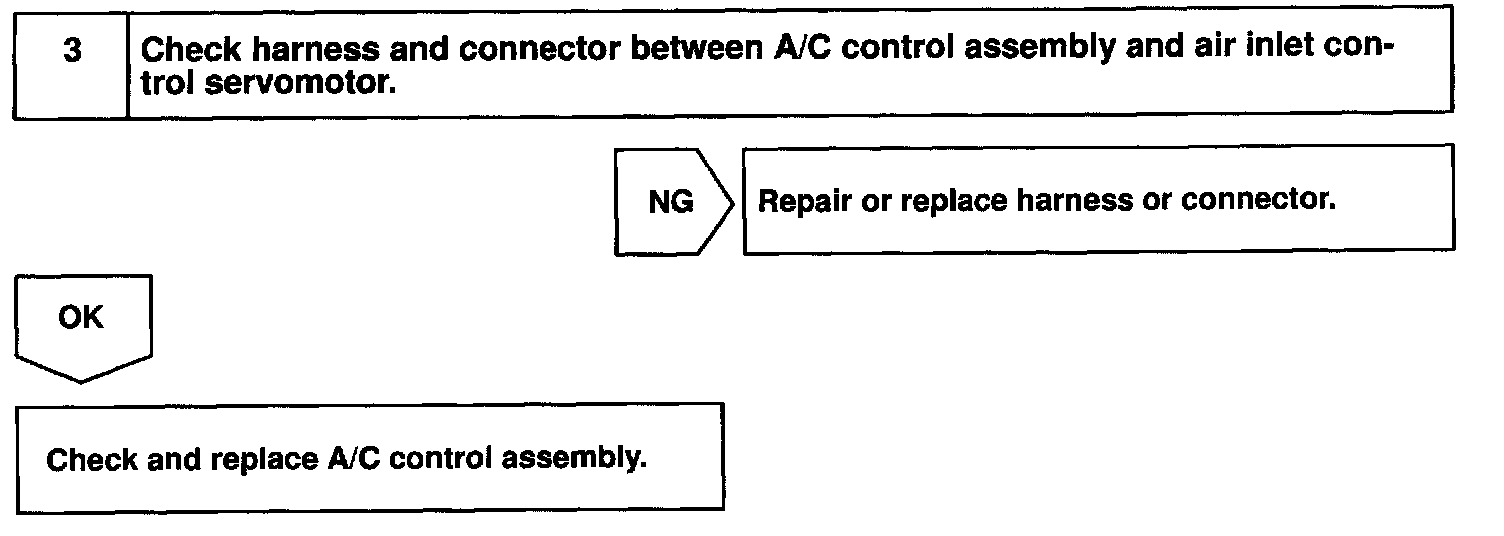

Step 3:

INSPECTION PROCEDURE
