B1414

CIRCUIT DESCRIPTION

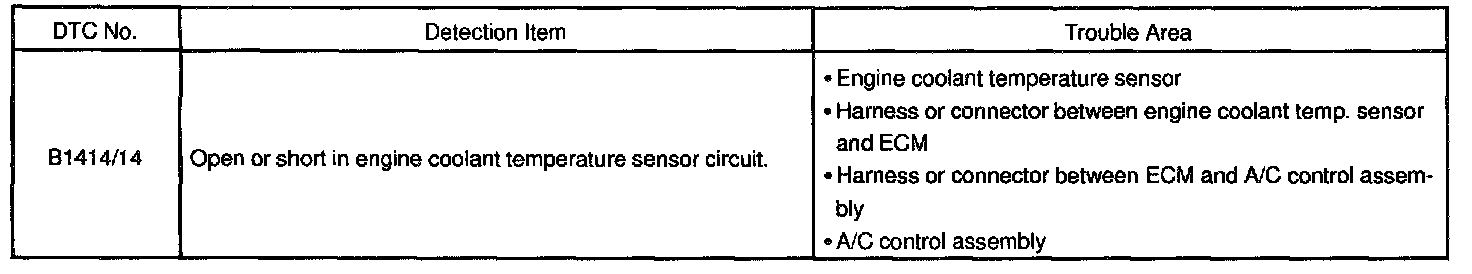

Detection Item:

This sensor detects the engine coolant temperature and sends the appropriate signals to the A/C control assembly. These signals are used for warm up control when the engine is cold.

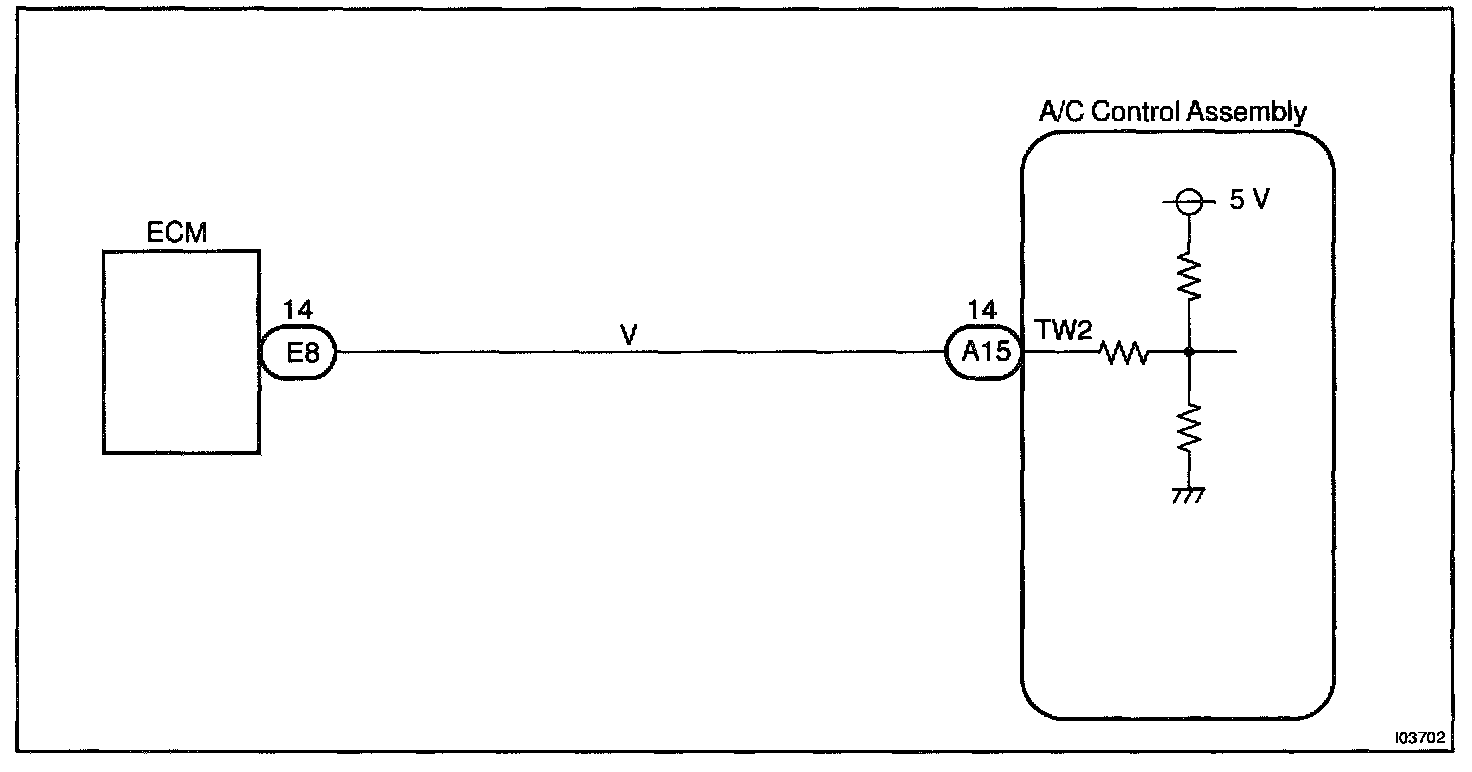

Wiring Diagram:

Steps 1 - 3:

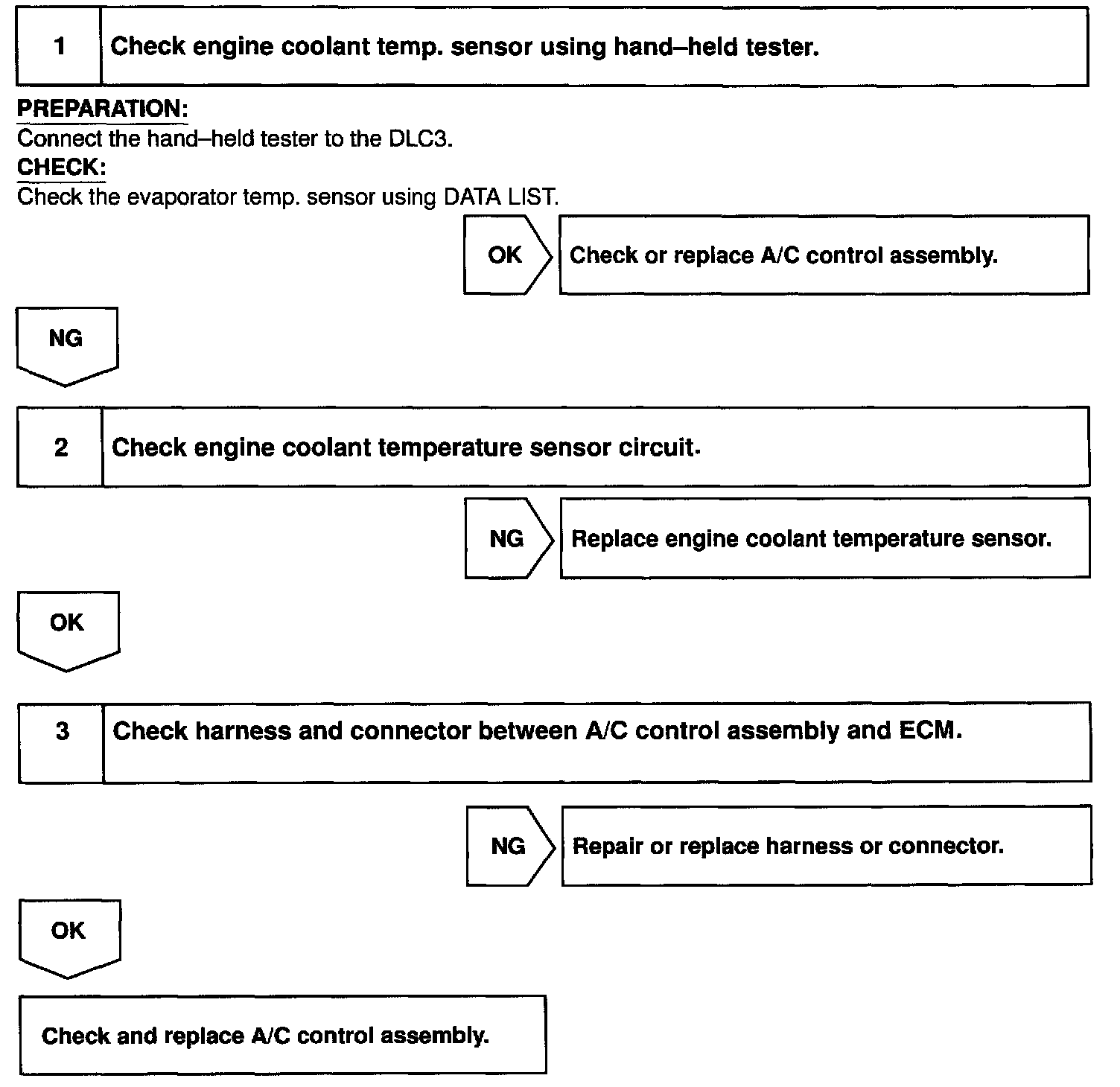

INSPECTION PROCEDURE

HINT: In case of using the hand- held tester, start the inspection step 1 and in case of not using the hand-held tester, start from step 2.
