Seals and Gaskets: Service and Repair
ON-VEHICLE REPAIR1. REMOVE FRONT EXHAUST PIPE AND HEAT INSULATOR
2. REMOVE PROPELLER SHAFT
3. REMOVE TRANSMISSION OUTPUT FLANGE

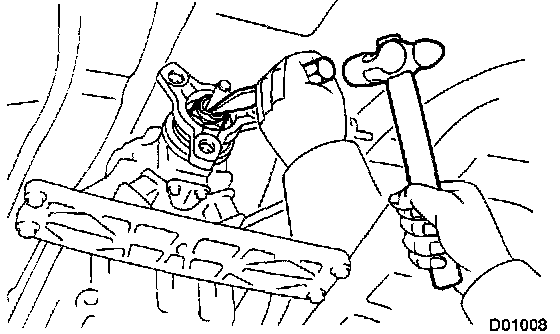

a. Using a chisel and hammer, loosen the staked part of the nut.
HINT: Shift the shift lever to the P position.

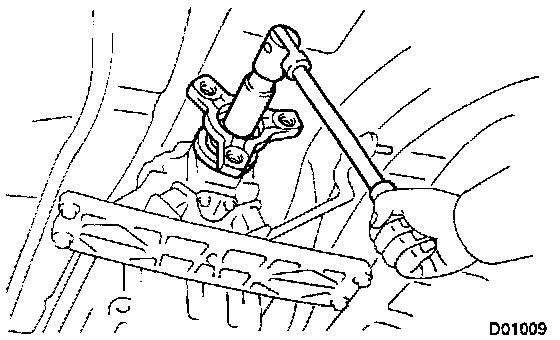

b. Using a 30 mm deeper socket wrench, remove the nut.
c. Tap the output flange with a plastic hammer to remove it and 2 washers.

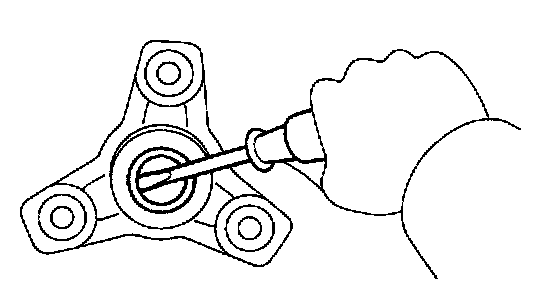

d. Using a screwdriver, remove the oil seal from the output flange.
4. REMOVE EXTENSION HOUSING REAR OIL SEAL

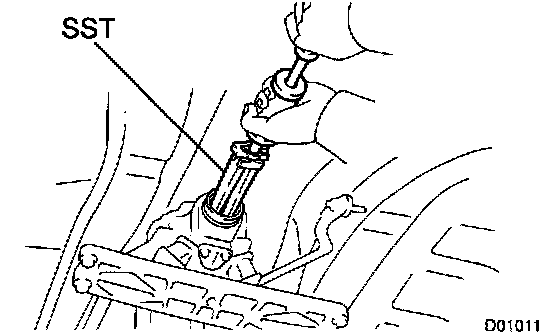

Using SST, remove the oil seal.
SST 09308-00010
5. INSTALL EXTENSION HOUSING REAR OIL SEAL
a. Coat a new lip of the oil seal with MP grease.

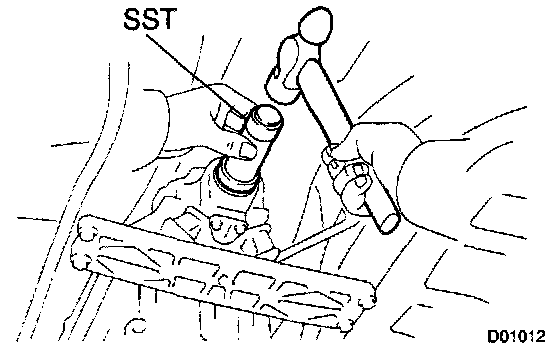

b. Using SST and a hammer, drive in a new oil seal with the lip facing downward.
SST 09309-37010
Oil seal depth from flat end: 2.0 mm (0.079 inch)
6. INSTALL TRANSMISSION OUTPUT FLANGE

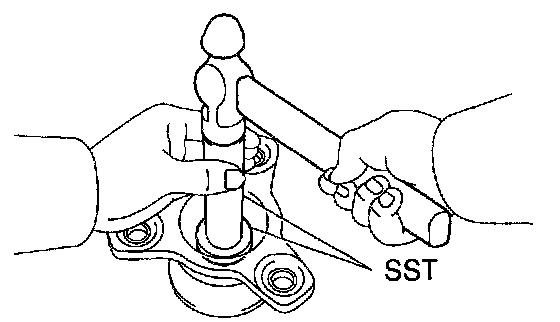

a. Using SST and a hammer, drive in a new oil seal.
SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)

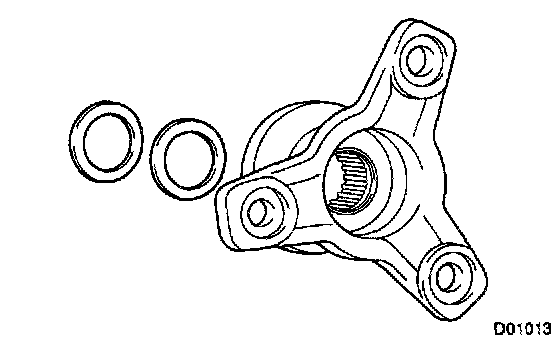

b. Install the output flange and 2 washers.

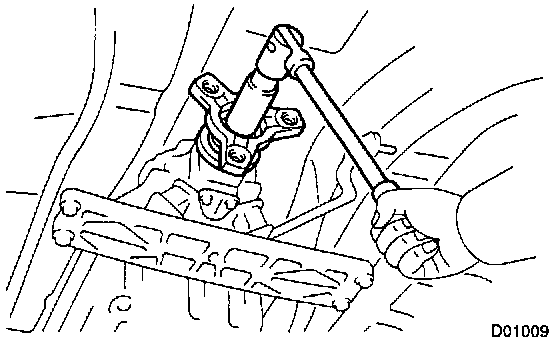

c. Using a 30 mm deeper socket wrench, install and torque a new nut.
Torque: 126 Nm (1,280 kgf-cm, 93 ft. lbs.)
HINT: Shift the shift lever to P position.

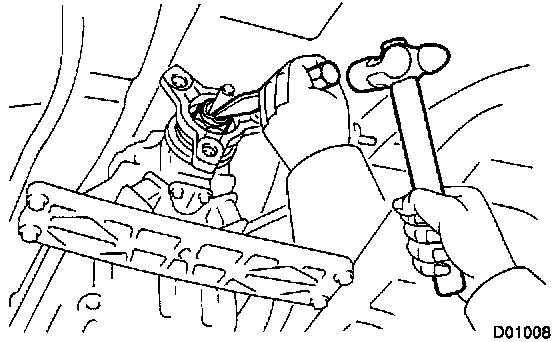

d. Using a chisel and hammer, stake the nut.
7. INSTALL PROPELLER SHAFT
8. INSTALL HEAT INSULATOR AND FRONT EXHAUST PIPE
9. FILL FLUID AND CHECK FLUID LEVEL
