Camshaft Position Sensor: Service and Repair

COMPONENTS

REMOVAL

1. REMOVE V-BANK COVER
2. DRAIN ENGINE COOLANT
3. DISCONNECT UPPER RADIATOR HOSE
4. REMOVE NO.3 TIMING BELT COVER
5. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTOR

6. REMOVE CAMSHAFT POSITION SENSOR

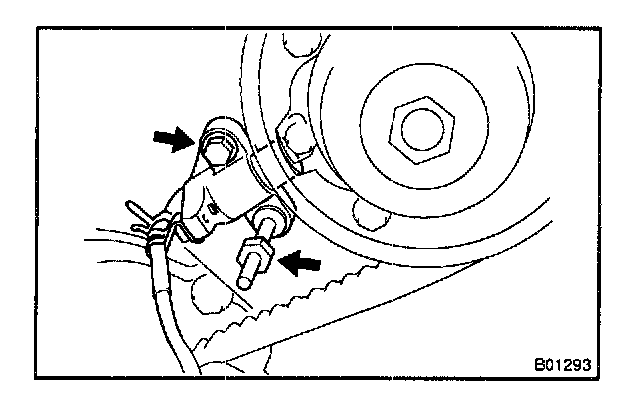

Remove the bolt, stud bolt and camshaft position sensor

INSTALLATION




1. INSTALL CAMSHAFT POSITION SENSOR

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

2. CONNECT CAMSHAFT POSITION SENSOR CONNECTOR
3. INSTALL NO.3 TIMING BELT COVER
4. CONNECT RADIATOR HOSE
5. INSTALL V-BANK COVER
6. FILL ENGINE COOLANT
7. CHECK ENGINE COOLANT FOR LEAKS
8. CHECK IGNITION TIMING
