Speed Sensor, Front

REMOVAL





1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the front wheel.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
b. Remove the opening moulding.
c. Remove the fender liner.
d. Disconnect the speed sensor connector.
2. REMOVE SPEED SENSOR

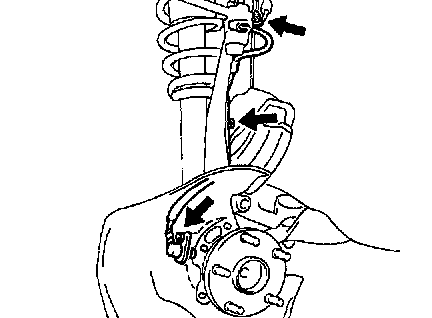

a. Remove the 3 clamp bolts holding the sensor harness to the body and upper arm.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Remove the speed sensor from the steering knuckle.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check speed sensor signal.
